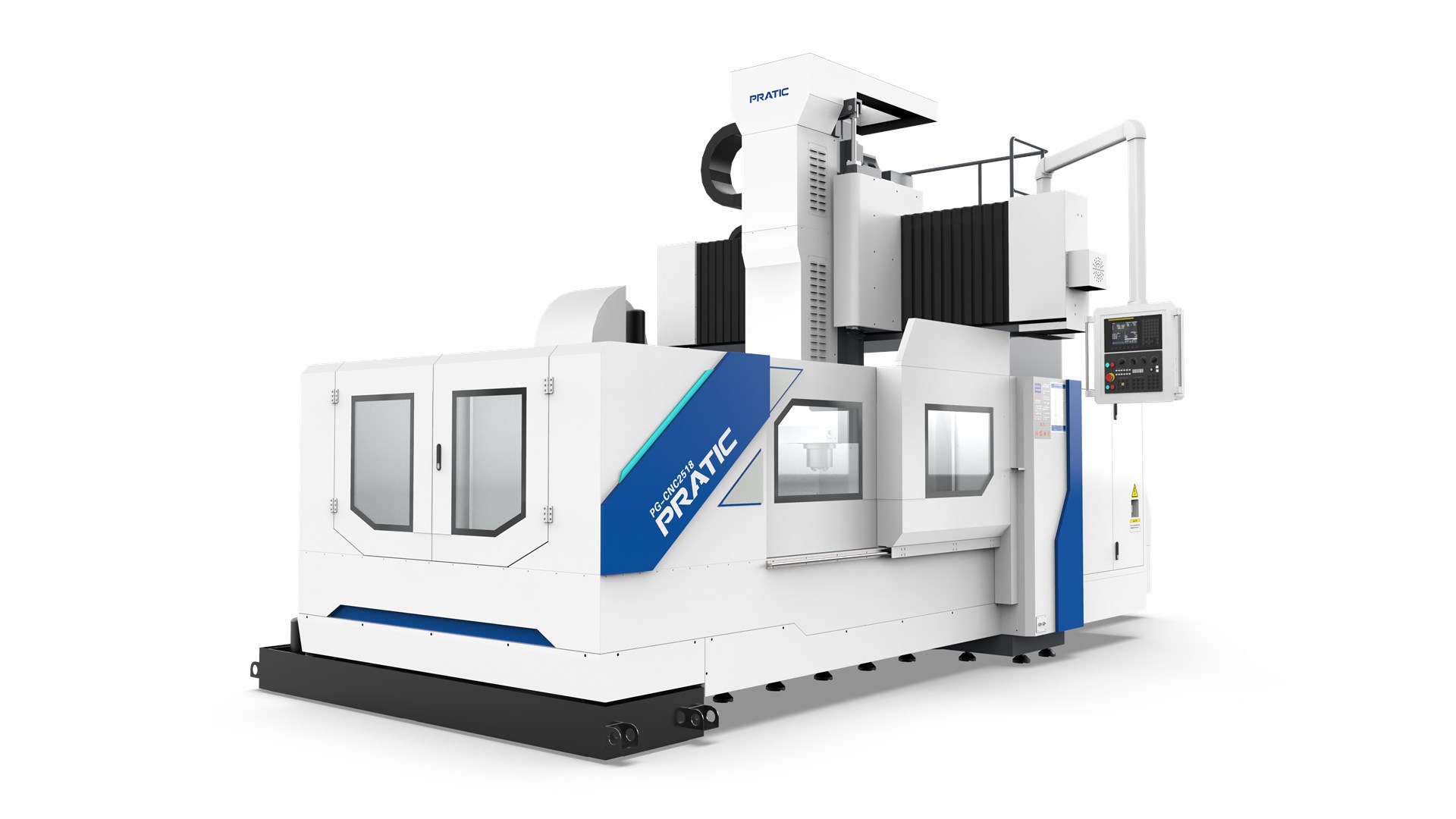

Pratic PG Bridge Type Milling Machine Center

Pratic PG Bridge Type Milling Machine Center

X-Axis — 1600 / 2000 / 2500 / 3200 mm

Y-Axis — 1500 / 1650 / 1800 / 2000 mm

Z-Axis — 800 / 800 / 1000 / 1000 mm

Max Spindle Speed — 6000 rpm

Spindle Taper — BT50

	Items	Unit	PG-CNC1614	PG-CNC2016	PG-CNC2518	PG-CNC3220
Travel	X-axis	mm	1600	2000	2500	3200
	Y-axis	mm	1500	1650	1800	2000
	Z-axis	mm	800	800	1000	1000
	Distance from spindle nose to table surface	mm	150-950(BT50)	250-1050(BT50)	150-1150(BT50)	260-1260(BT50)
Worktable	Size (Length*Width)	mm	1200×1700	1300×2000	1600×2500	1800×3000
	Max. load	t	2.5	4	6.5	7
	T-slot (Number/Width/Center distance)	mm	7/22-170	7/22-170	9/22-180	9/22-190
Spindle	Type	/	Mechanical
	Power	kW	15(S1)/18.5(S3/S6-25%)
	Max. speed	rpm	6000
	Taper	/	BT50
Feedrates	Rapid on X/Y/Z	m/min	15/15/12
Feedrates	X/Y/Z Cutting Feed Rate	m/min	10/10/8
Tool Magazine	Type	/	Disc type
Tool Magazine	Required pneumatic pressure	kg/cm²	6
Dimension	Machine Height	mm	3700	3920	4000	4100
	Covering Area	mm	5800×3200	6400×3800	7300×3900	8600×4000
	Machine Weight	t	13.5	19	twenty one	twenty three
