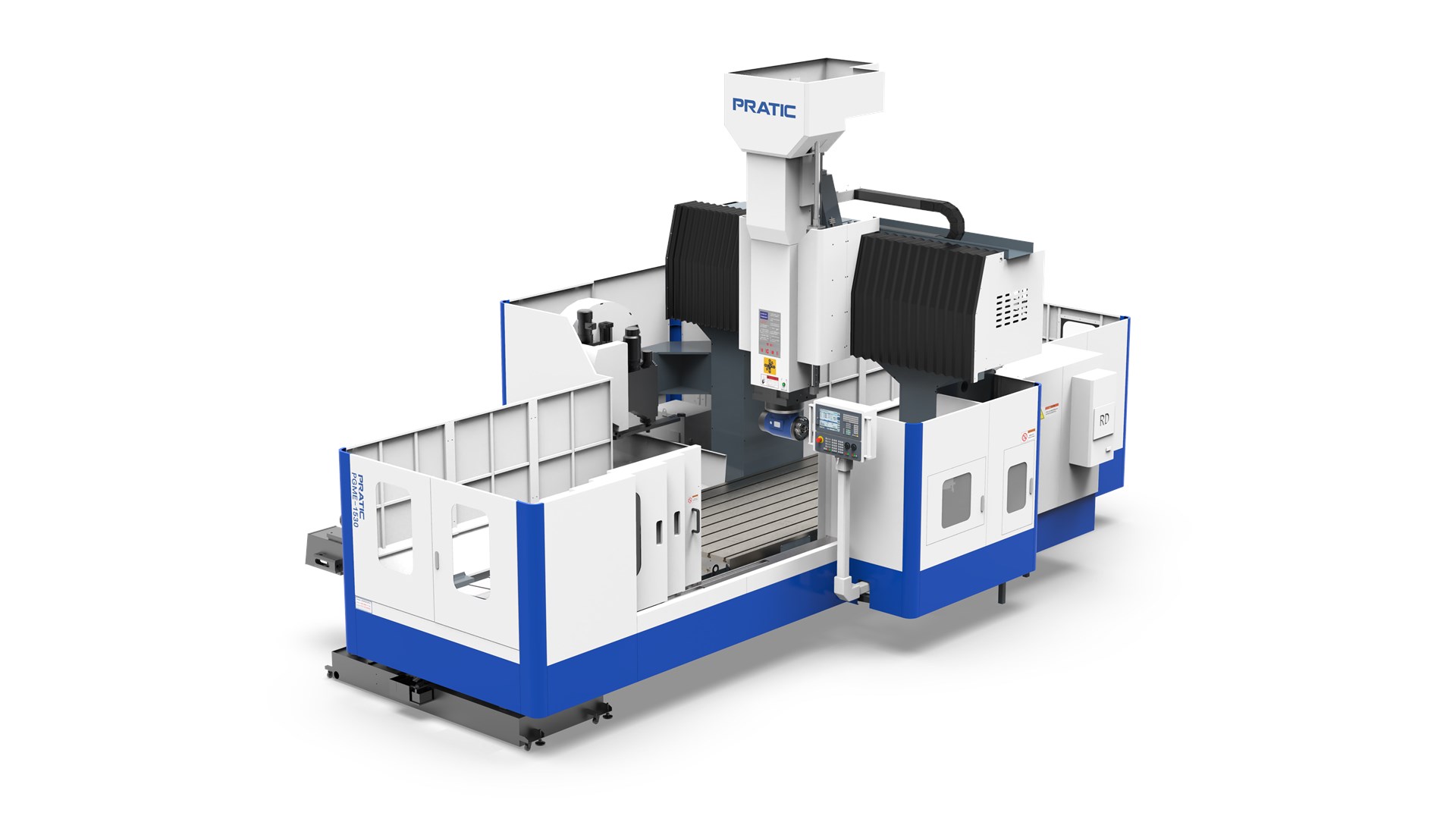

Pratic PGME Bridge Machining Center

Ana Səhifə / Pratic PGME Bridge Machining Center

X-Axis — 2700/3200 3200/4200 mm

Y-Axis — 1800 / 2300 mm

Z-Axis — 1000 mm

Max Spindle Speed — 6000 rpm

Spindle Taper — BT50

	Items	Unit	PGME-1525/30	PGME-2030/40
Travel	X-axis	mm	2700/3200	3200/4200
	Y-axis	mm	1800	2300
	Z-axis	mm	1000
	From spindle end to worktable	mm	150-1150
	Distance of two columns	mm	1800	2300
Worktable	Size	mm	1500*2500/3000	2000*3000/4000
Worktable	Max. load	t	6/7	9/12
Spindle unit	Type	/	Mechanical
	Power	kW	15/18.5(S1/S2 60min)
	Speed	rpm	6000
	Torque	Nm	143/190(S1/S2 60min)
	Taper	/	BT50
	Square ram	mm	400*400
Feedrates	Rapid on X/Y/Z/W	m/min	15/15/12
Feedrates	X/Y/Z/W Cutting Feed Rate	m/min	10/10/10
Dimension	Machine Height	mm	4900
	Machine Width	mm	4300	4800
	Machine Length	mm	7000/8000	12000
	Machine weight	t	25/27	30/33
