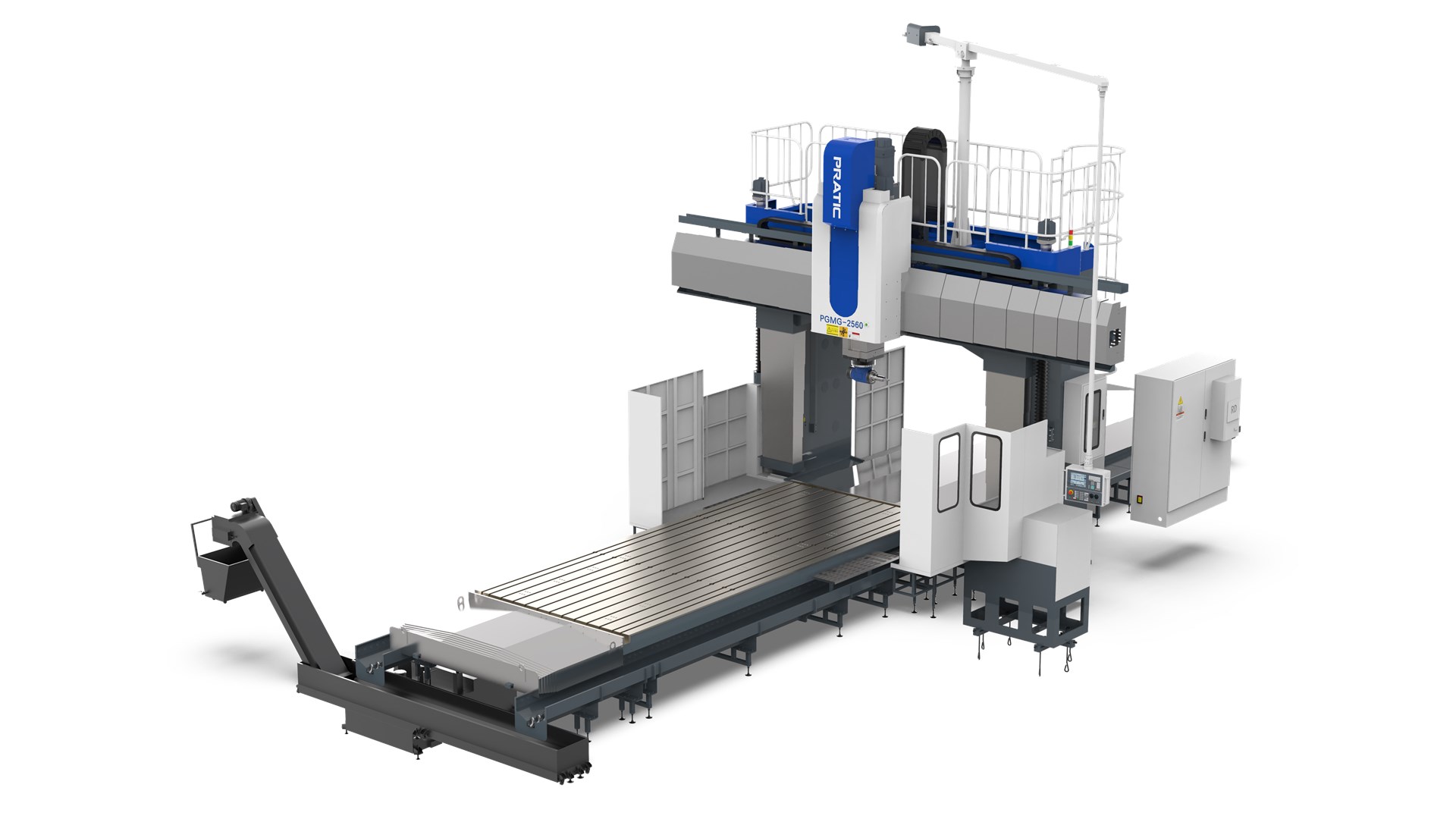

Pratic PGMG Bridge Type Machining Center

Pratic PGMG Bridge Type Machining Center

X-Axis — 4200 / 6200 / 8500 mm

Y-Axis — 3900 / 3900 / 3900 mm

Z-Axis — 800 / 800 / 800 mm

W-Axis — 1300 / 1300 / 1300 mm

Max Spindle Speed — 6000 / 6000 / 6000 rpm

Spindle Taper — BT50 / BT50 / BT50

	Items	Unit	PGMG-2540	PGMG-2560	PGMG-2580
Travel	X-axis	mm	4200	6200	8500
	Y-axis	mm	3900	3900	3900
	Z-axis	mm	800	800	800
	W-axis	mm	1300	1300	1300
	Spindle nose to table	mm	0-2100	0-2100	0-2100
	Distance between columns	mm	3200	3200	3200
Worktable	Size	mm	2500*4000	2500*6000	2500*8000
Worktable	Max. load	t	15	22	30
Spindle unit	Type	/	Mechanical	Mechanical	Mechanical
	Power	kW	17/25.5(S1/S6-40%)	17/25.5(S1/S6-40%)	17/25.5(S1/S6-40%)
	Speed	rpm	6000	6000	6000
	Torque	Nm	723/1085(S1/S6-40%)	723/1085(S1/S6-40%)	723/1085(S1/S6-40%)
	Taper	/	BT50	BT50	BT50
	Square ram	mm	400*400	400*400	400*400
Feedrates	Rapid on X/Y/Z/W	m/min	15/15/10/3	15/15/10/3	15/15/10/3
Feedrates	X/Y/Z Cutting Feed Rate	m/min	10/10/8	10/10/8	10/10/8
Dimension	Machine Height	mm	6500	6500	6500
	Machine Width	mm	7800	7800	7800
	Machine Length	mm	12000	16000	20000
	Machine Weight	t	55	60	65
