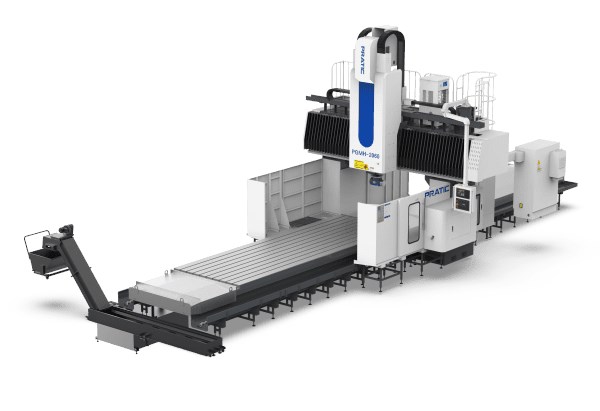

Pratic PGMH Bridge Machining Center

Pratic PGMH Bridge Machining Center

X-Axis — 4200 / 6200 / 8500 mm

Y-Axis — 3700 / 3700 / 3700 mm

Z-Axis — 1000 / 1000 / 1000 mm

Max Spindle Speed — 6000 / 6000 / 6000 rpm

Spindle Taper — BT50 / BT50 / BT50

	Items	Unit	PGMH-2540	PGMH-2560	PGMH-2580
Travel	X-axis	mm	4200	6200	8500
	Y-axis	mm	3700	3700	3700
	Z-axis	mm	1000	1000	1000
	Spindle nose to table	mm	250-1250	250-1250	250-1250
	Distance between columns	mm	3200	3200	3200
Worktable	Size	mm	2500*4000	2500*6000	2500*8000
	Max. load	t	15	22	30
	Width/Distance	/	28/200	28/200	28/200
Spindle unit	Type	/	Mechanical	Mechanical	Mechanical
	Power	kW	17/25.5(S1/S6-40%)	17/25.5(S1/S6-40%)	17/25.5(S1/S6-40%)
	Speed	rpm	6000	6000	6000
	Torque	Nm	723/1085(S1/S6-40%)	723/1085(S1/S6-40%)	723/1085(S1/S6-40%)
	Taper	/	BT50	BT50	BT50
	Square ram	mm	400*400	400*400	400*400
Feedrates	Rapid on X/Y/Z	m/min	15/12/10	15/12/10	15/12/10
Feedrates	X/Y/Z Cutting Feed Rate	m/min	8/8/8	8/8/8	8/8/8
Dimension	Machine Height	mm	5300	5300	5300
	Machine Width	mm	6800	6800	6800
	Machine Length	mm	12580	16000	20000
	Machine Weight	t	45	51	57
