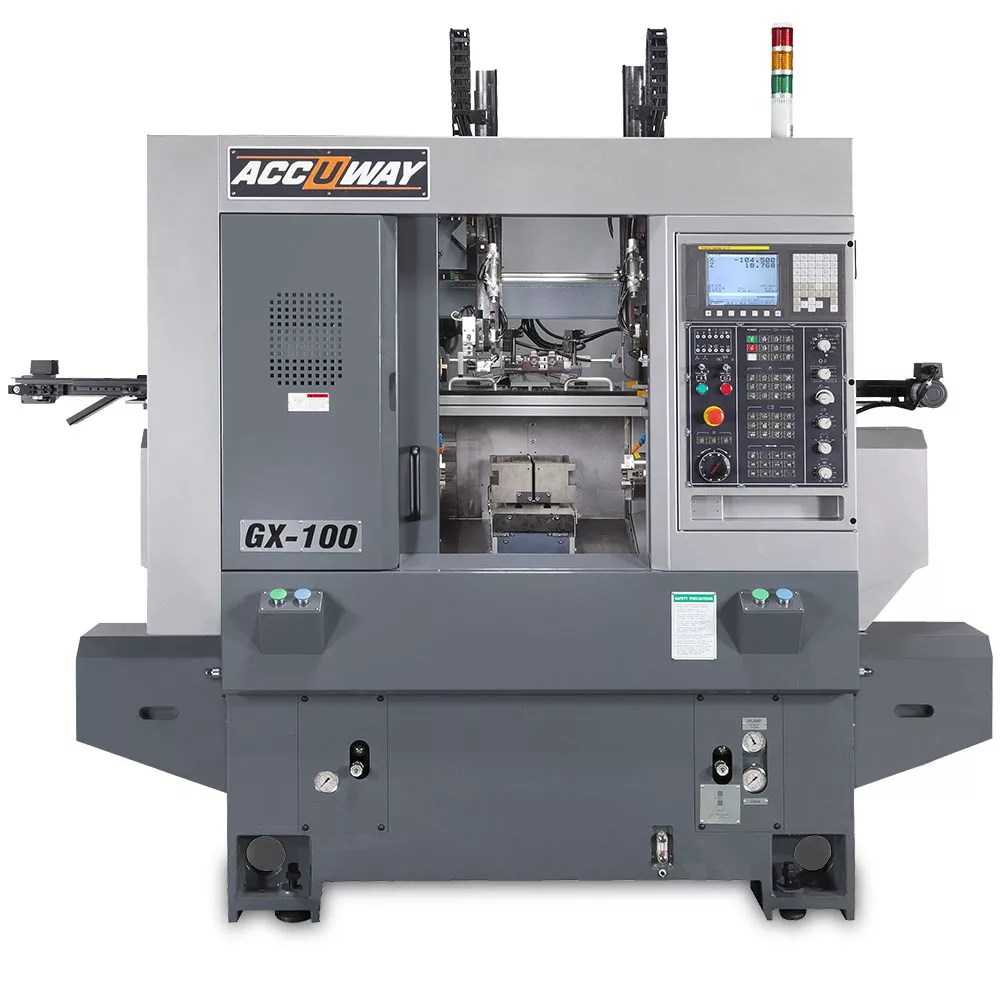

Accuway GX-100 CNC Lathe Integrated Loader Lathe

Homepage / Accuway GX-100 CNC Lathe Integrated Loader Lathe

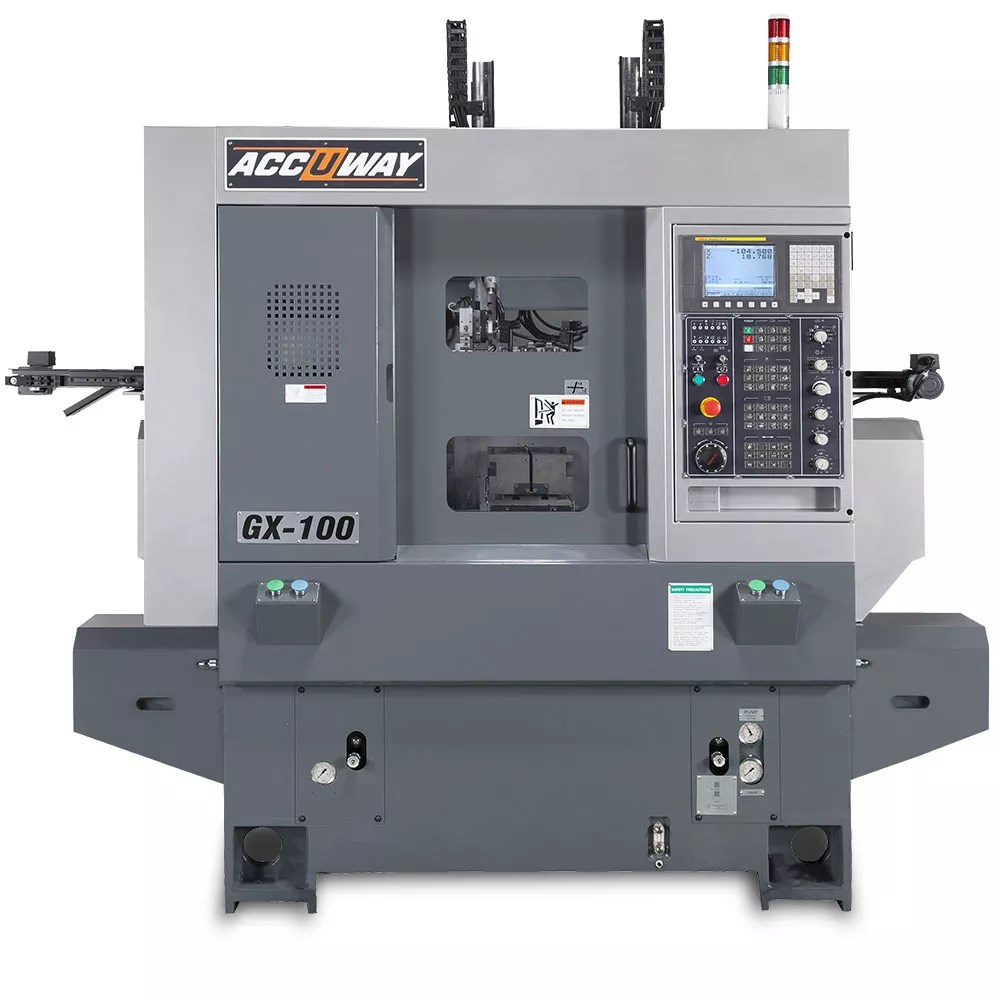

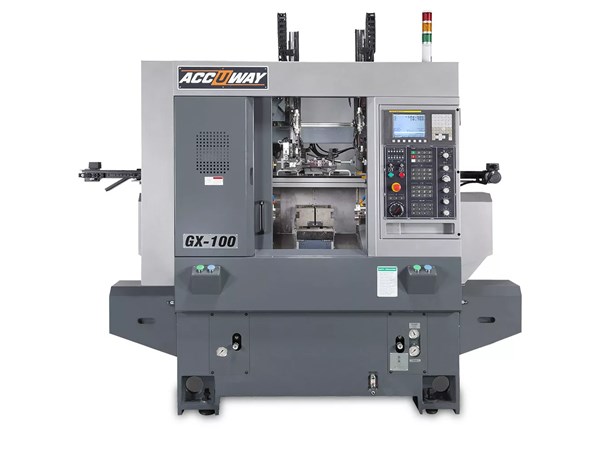

Accuway GX-100 CNC Lathe Integrated Loader Lathe

Accuway GX-100 CNC Lathe Integrated Loader Lathe

Accuway GX-100 CNC Lathe Integrated Loader Lathe

Accuway GX-100 CNC Lathe Integrated Loader Lathe

Accuway GX-100 CNC Lathe Integrated Loader Lathe

Accuway GX-100 CNC Lathe Integrated Loader Lathe

Accuway GX-100 CNC Lathe Integrated Loader Lathe

Chuck Size — 5 (SP1) 5 (SP2)

Number of Tools (station) — Gang

Distance Between Spindles — 60 mm

ITEM/MODEL		GX-100
Controller		FANUC 0i-T
CAPACITY
Max. Turning Diameter(SP1)	mm	50
Max. Turning Diameter(SP2)	mm	50
Max. Turning Length	mm	60
Guide way type		Linear
SPINDLE 1
Spindle Nose	ASA	A2-5
Chuck Diameter	inch	5
Bar Capacity	mm	30
Spindle Speed	rpm	6000
Spindle Motor Power(Cont. /30min)	kW	5.5/7.5
SPINDLE 2
Spindle Nose	ASA	A2-5
Chuck Diameter	inch	5
Bar Capacity	mm	30
Spindle Speed	rpm	6000
Spindle Motor Power(Cont. /30min)	kW	5.5/7.5
TRAVELS
X-axis Travel	mm	210
Z-axis Travel	mm	310(±155)
FEEDS
X-axis Rapid Traverse Rate	m/min	18
Z-axis Rapid Traverse Rate	m/min	24
TURRET
Tooling system		Gang
Turret driven type		-
Square Tool Shank Size	mm	20
Round Tool Shank Size	mm	25
Max. Rotary Tool Speed	rpm	-
Rotary Tool power	kW	-
DIMENSIONS
Machine dimension L x W x H	m	2.7 x 2.0 x 2.4
Machine Weight	kg	3200

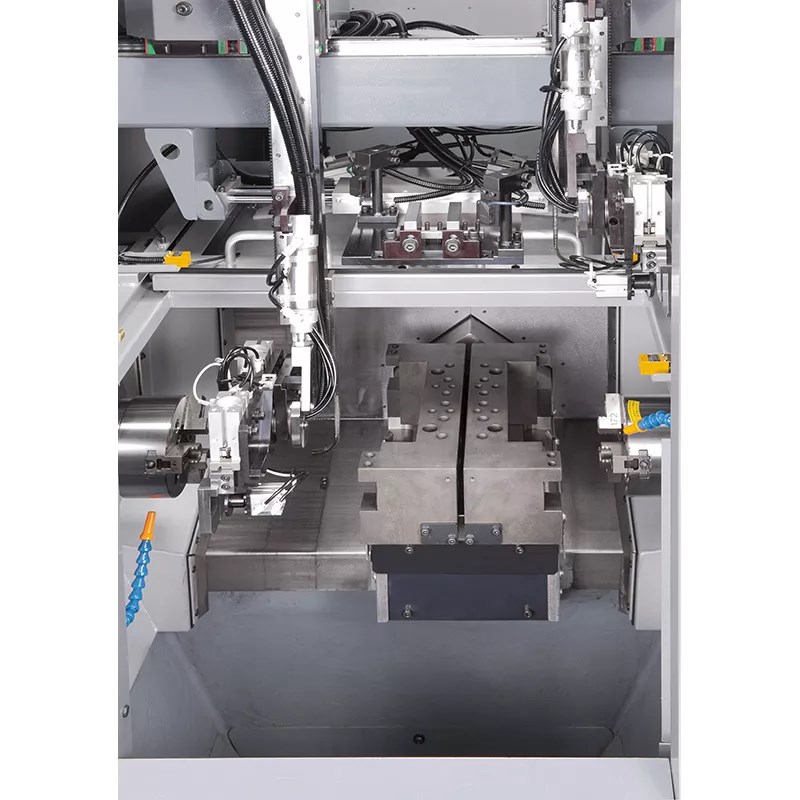

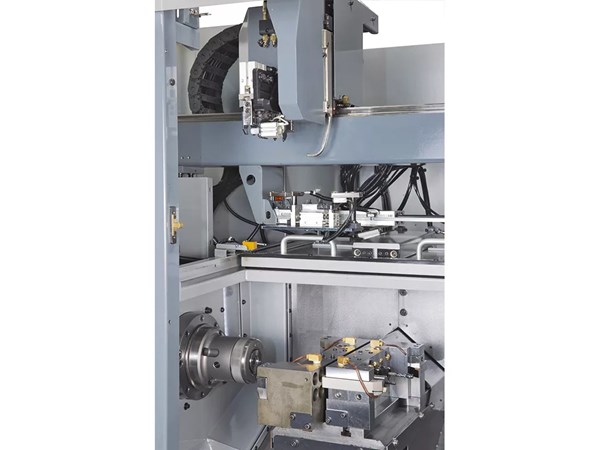

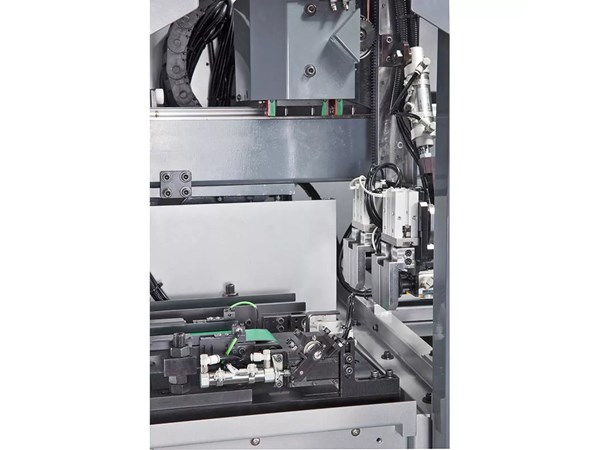

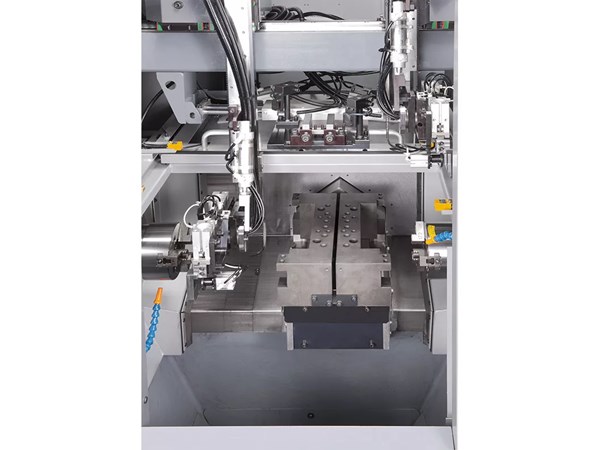

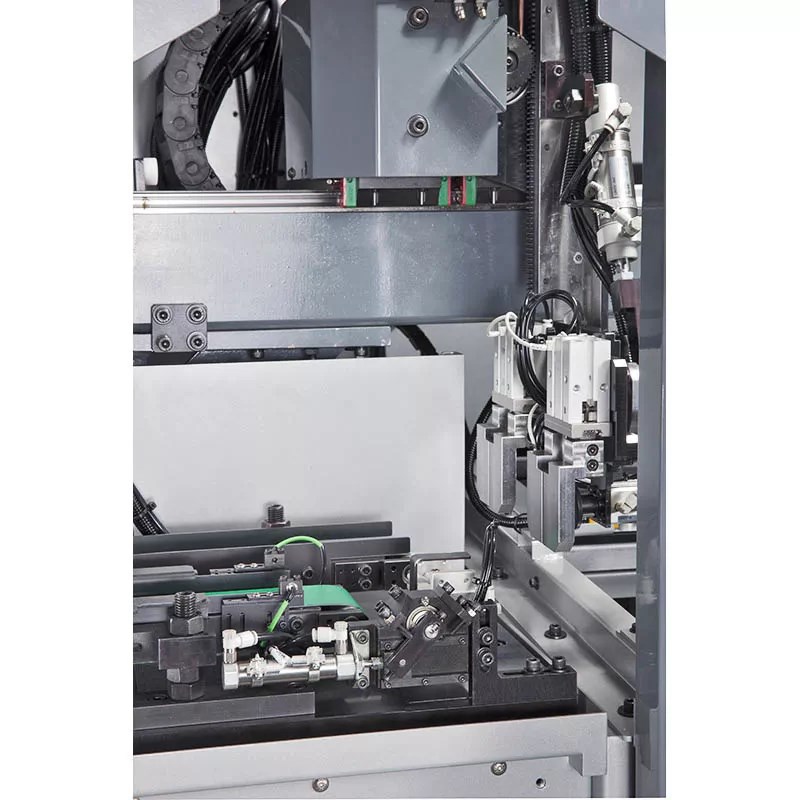

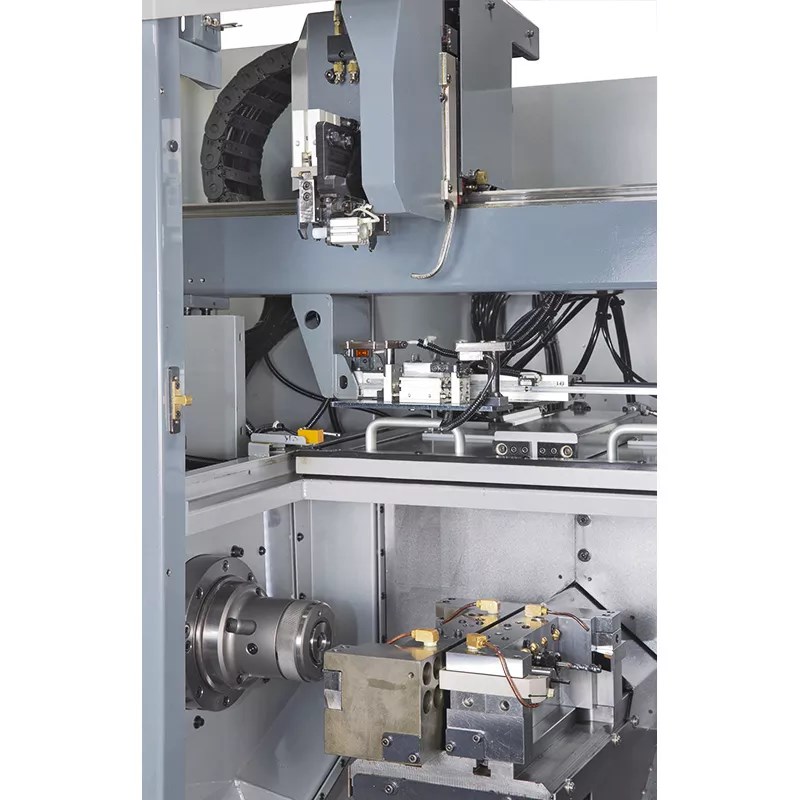

Loader
Material dimension
Diameter	mm	10~50
Length	mm	20~60
Weight (One side)	kg	0.5
Traverse axis:Z
Stroke	mm	400
Rapid traverse rate	m/min	84
Vertical axis:Y
Stroke	mm	500
Rapid traverse rate	m/min	84
