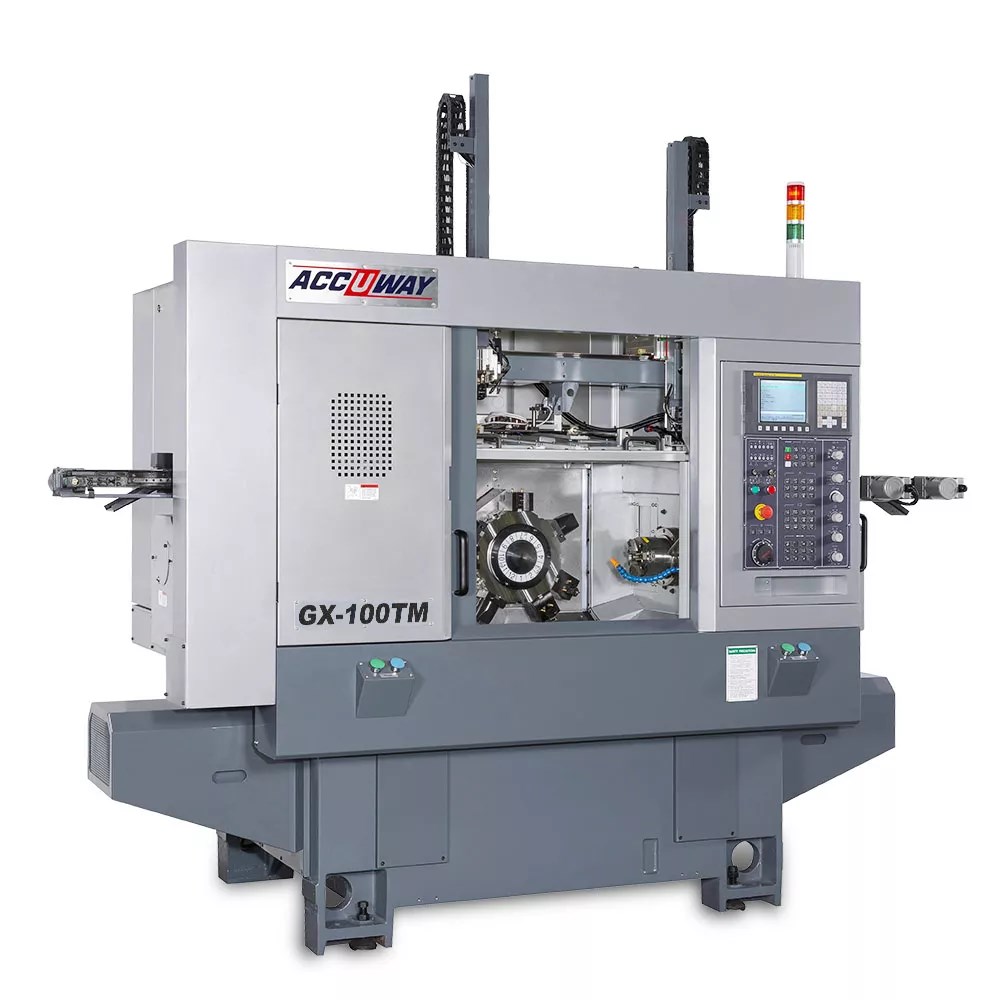

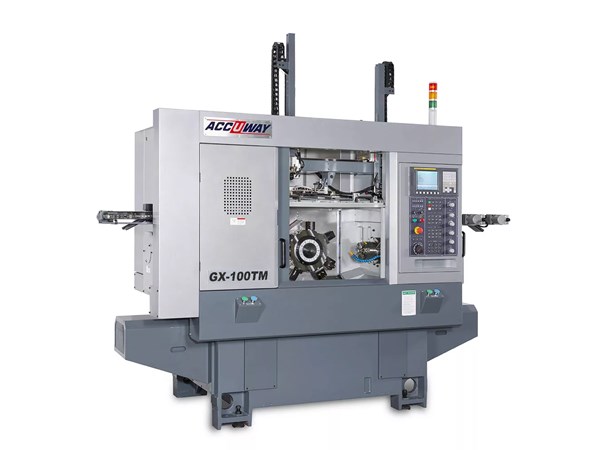

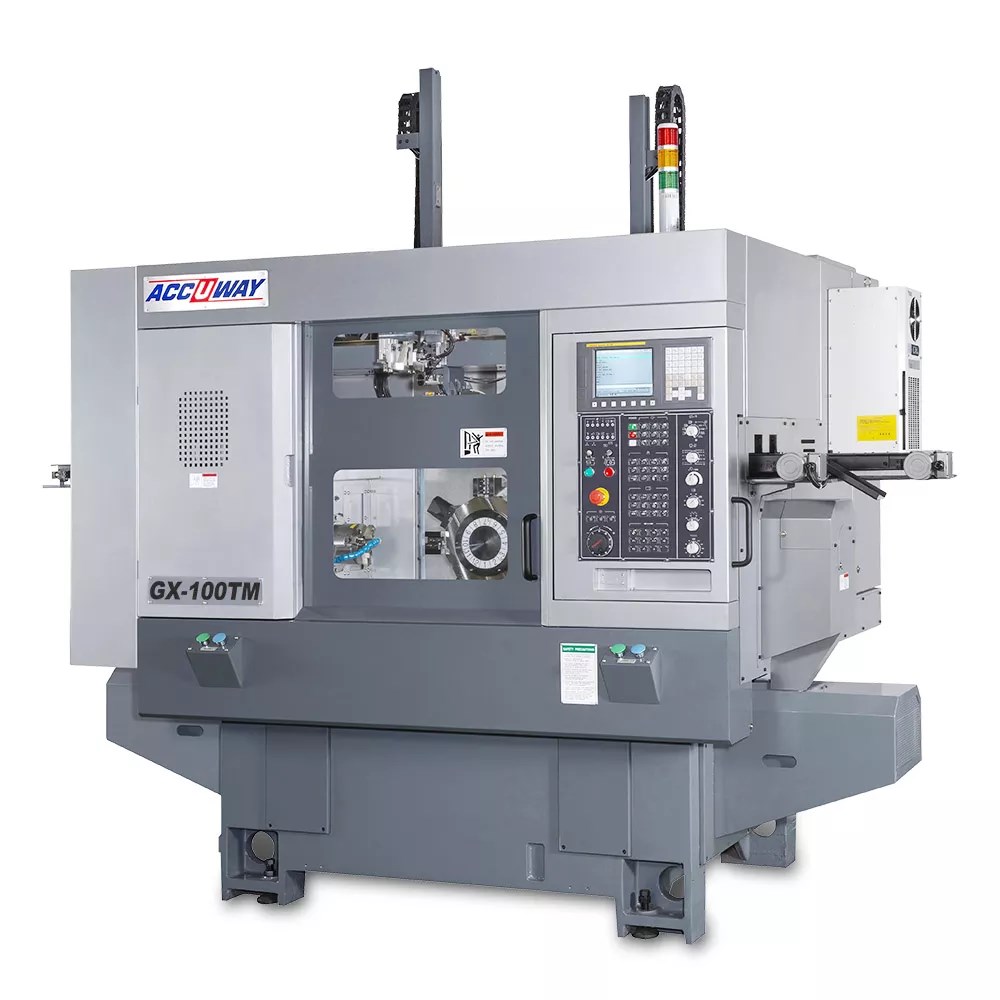

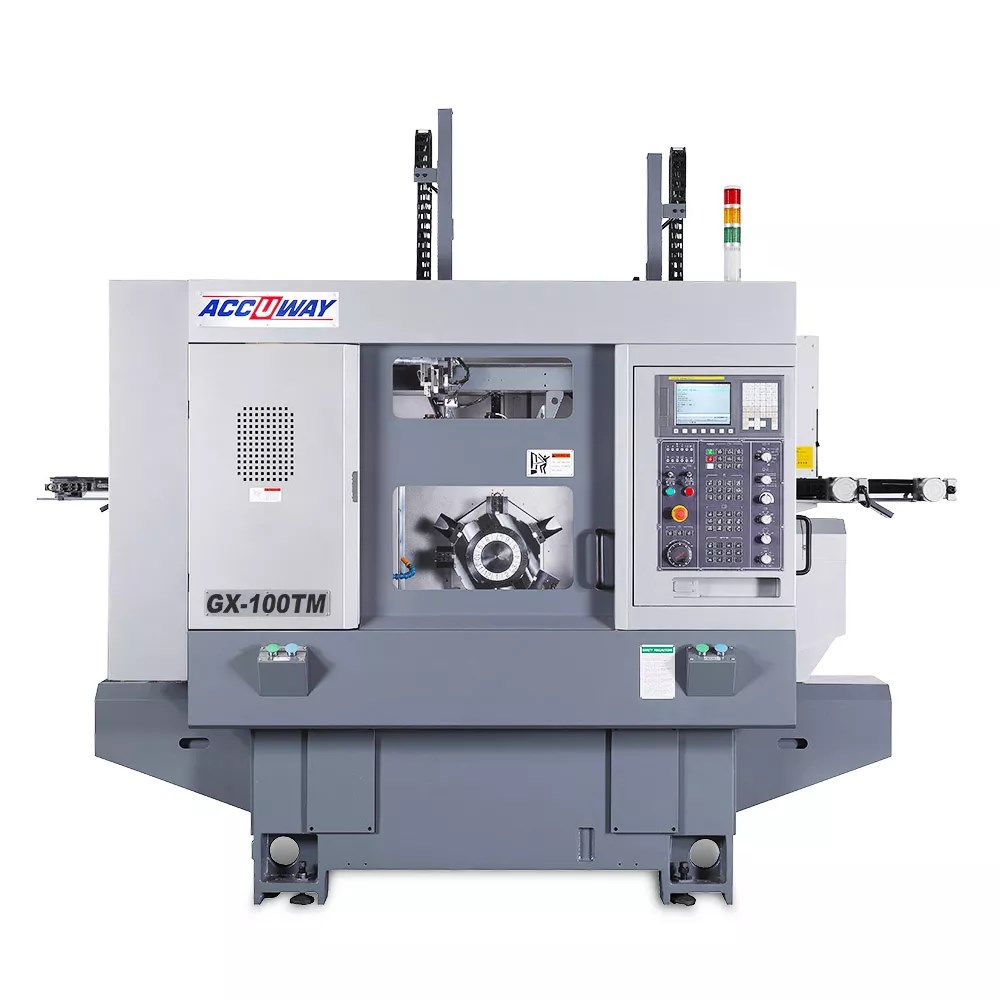

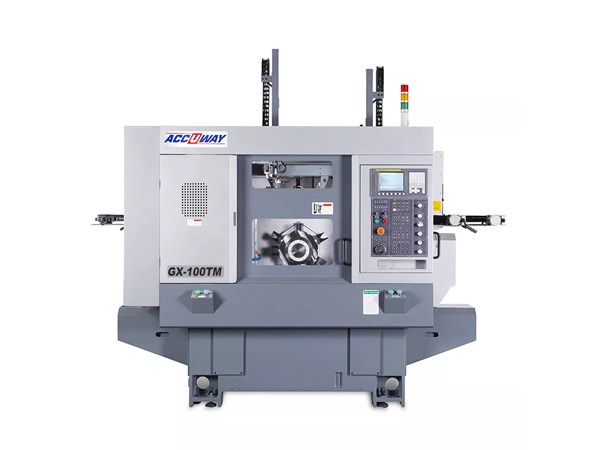

Accuway GX-100TM CNC Lathe Integrated Loader Lathe

Homepage / Accuway GX-100TM CNC Lathe Integrated Loader Lathe

Accuway GX-100TM CNC Lathe Integrated Loader Lathe

Accuway GX-100TM CNC Lathe Integrated Loader Lathe

Accuway GX-100TM CNC Lathe Integrated Loader Lathe

Accuway GX-100TM CNC Lathe Integrated Loader Lathe

Accuway GX-100TM CNC Lathe Integrated Loader Lathe

Chuck Size — 5 (SP1) 5 (SP2)

Number of Tools (station) — 12

Distance Between Spindles — 55 mm

ITEM/MODEL		GX-100TM
Controller		FANUC 0i-T
CAPACITY
Max. Turning Diameter(SP1)	mm	70
Max. Turning Diameter(SP2)	mm	70
Max. Turning Length	mm	55
Guide way type		Linear
SPINDLE 1
Spindle Nose	ASA	A2-5
Chuck Diameter	inch	5
Bar Capacity	mm	30
Spindle Speed	rpm	6000
Spindle Motor Power(Cont. /30min)	kW	5.5/7.5
SPINDLE 2
Spindle Nose	ASA	A2-5
Chuck Diameter	inch	5
Bar Capacity	mm	30
Spindle Speed	rpm	6000
Spindle Motor Power(Cont. /30min)	kW	5.5/7.5
TRAVELS
X-axis Travel	mm	160(145+15)
Z-axis Travel	mm	310(±155)
FEEDS
X-axis Rapid Traverse Rate	m/min	18
Z-axis Rapid Traverse Rate	m/min	24

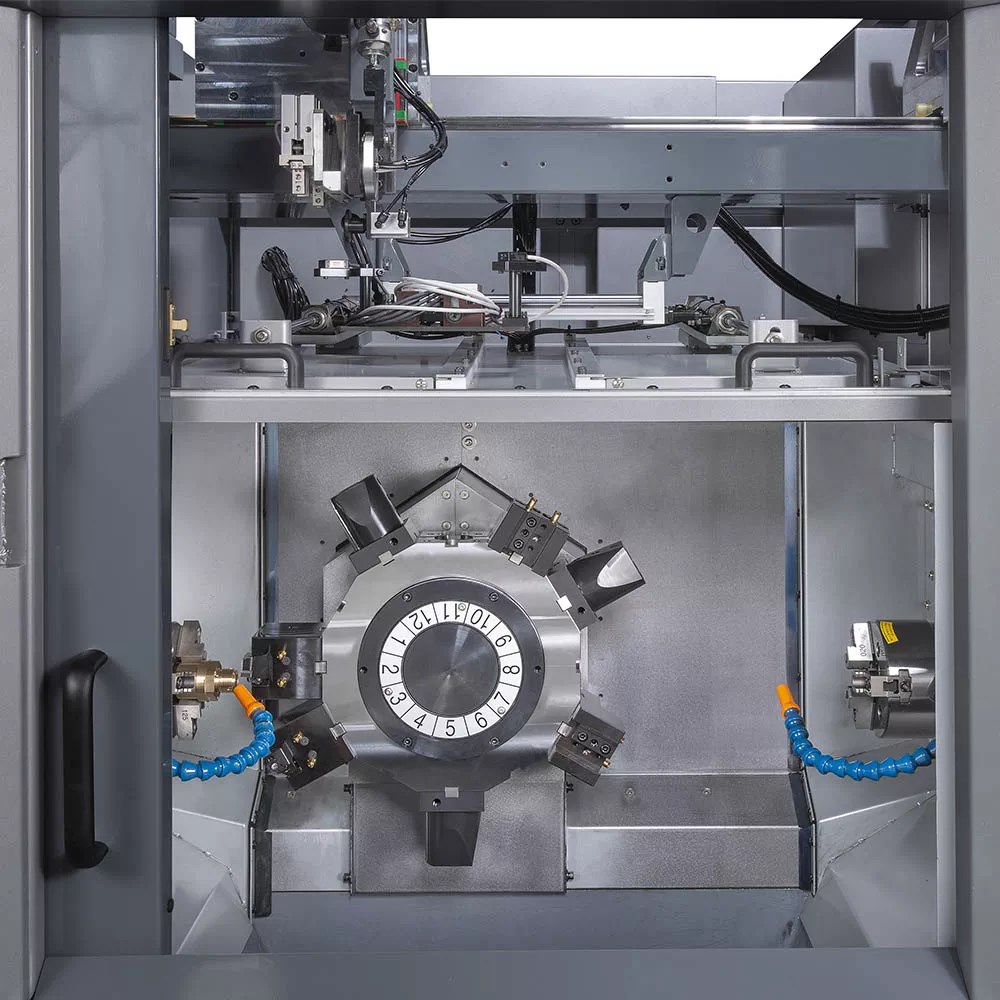

TURRET
Tooling system		BMT-45
Turret driven type		Servo mechanical
Number of tools	station	12
Square Tool Shank Size	mm	20
Round Tool Shank Size	mm	32
Max. Rotary Tool Speed	rpm	6000
Rotary Tool power	kW	3.7/5.5
DIMENSIONS
Machine dimension L x W x H	m	3 x 2 x 2.4
Machine Weight	kg	3300
Loader
Material dimension
Diameter	mm	10~50
Length	mm	20~60
Weight (One side)	kg	0.5
Traverse axis:Z
Stroke	mm	580
Rapid traverse rate	m/min	84
Vertical axis:Y
Stroke	mm	550
Rapid traverse rate	m/min	84
