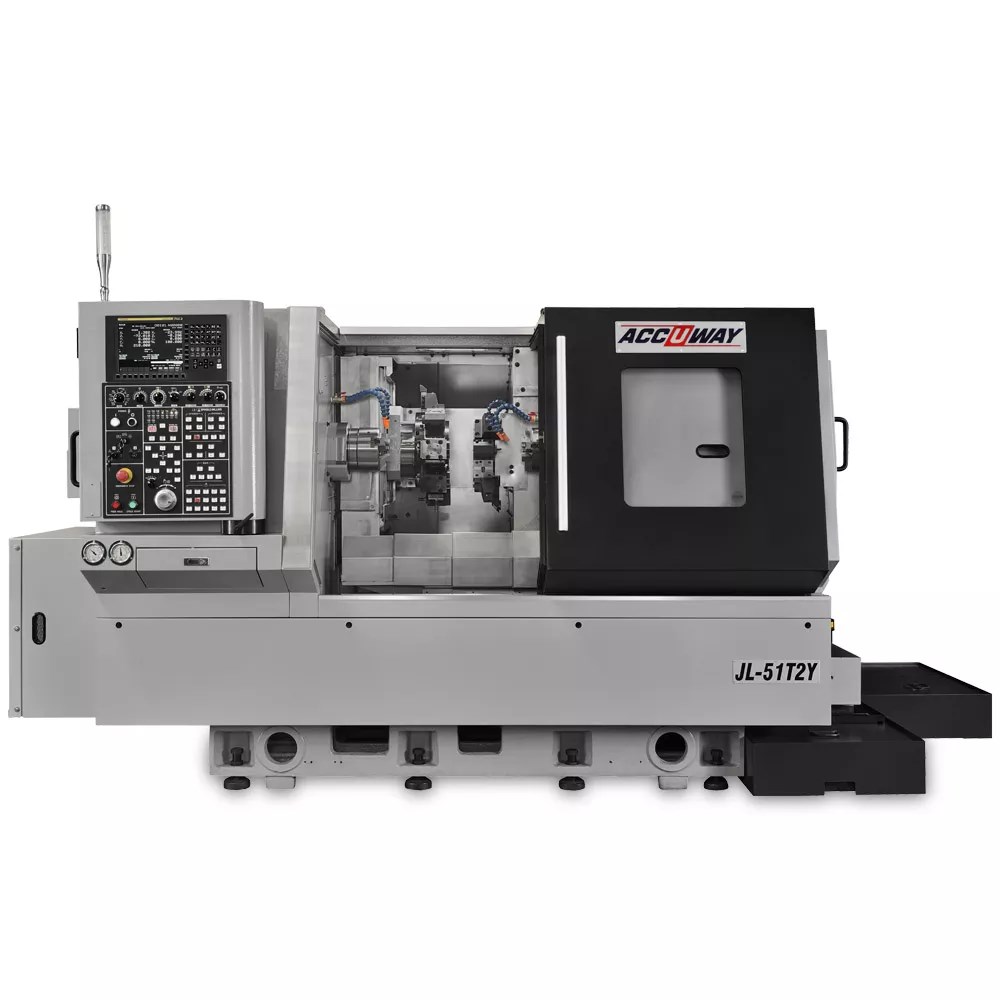

Accuway JL-51T2Y CNC Lathe Two Turret – Two Spindle

Homepage / Accuway JL-51T2Y CNC Lathe Two Turret – Two Spindle

Accuway JL-51T2Y CNC Lathe Two Turret – Two Spindle

Accuway JL-51T2Y CNC Lathe Two Turret – Two Spindle

Accuway JL-51T2Y CNC Lathe Two Turret – Two Spindle

Chuck Size — 6/8 (SP1) 6/8 (SP2)

Number of Tools (station) — 12+8

Y axis travel — ±40

Distance Between Spindles — 172 mm

ITEM/MODEL		JL-51T2Y
Controller		FANUC 0i-T
CAPACITY
Max. Turning Diameter(SP1)	mm	160
Max. Turning Diameter(SP2)	mm	100
Max. turning length	mm	170
Guide way type		Linear + Box
SPINDLE 1
Spindle Nose	ASA	A2-6
Chuck Diameter	inch	6	8
Bar Capacity	mm	52
Spindle Speed	rpm	5000
Spindle Motor Power(Cont. /30min)	kW	11/15
SPINDLE 2
Spindle Nose	ASA	A2-5
Chuck Diameter	inch	6	8
Bar Capacity	mm	44
Spindle Speed	rpm	6000
Spindle Motor Power(Cont. /30min)	kW	7.5/11
TRAVELS
X1/X2 axis Travel	mm	165/85
Z1/Z2 axis Travel	mm	220/590
Y-axis Travel	mm	±40
FEED RATES
X1/X2 axis Rapid Traverse Rate	m/min	20
Z1/Z2 axis Rapid Traverse Rate	m/min	30
Y-axis Rapid Traverse Rate	m/min	12

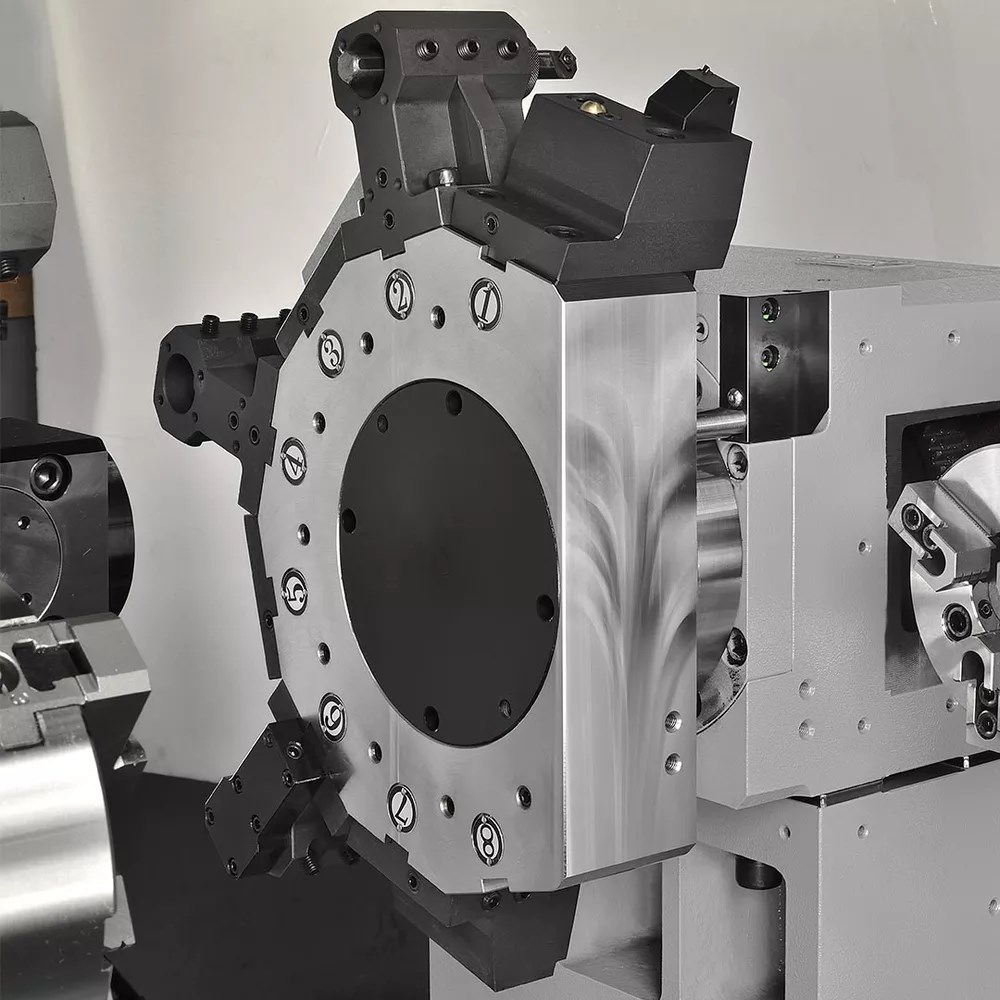

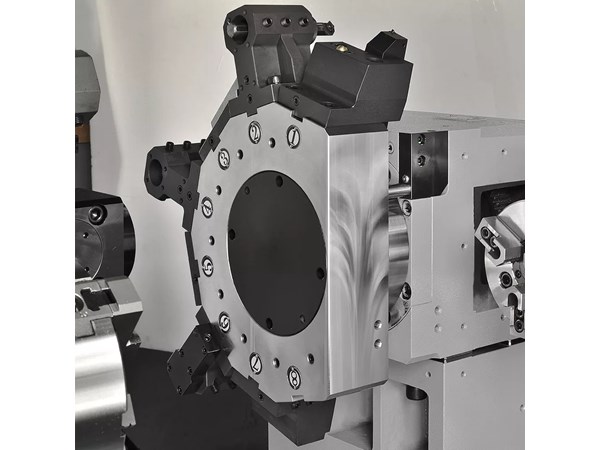

TURRET
Tooling system		BMT-55N power+servo
Number of tools	station	12+8
Square tool shank size	mm	25
Round tool shank size	mm	32
Max. Rotary Tool Speed	rpm	6000
Rotary Tool power	kW	2.2/3.7
DIMENSION
Machine dimension L x W xH	m	2.9 x 1.8 x 1.7
Net weight	kg	6500
