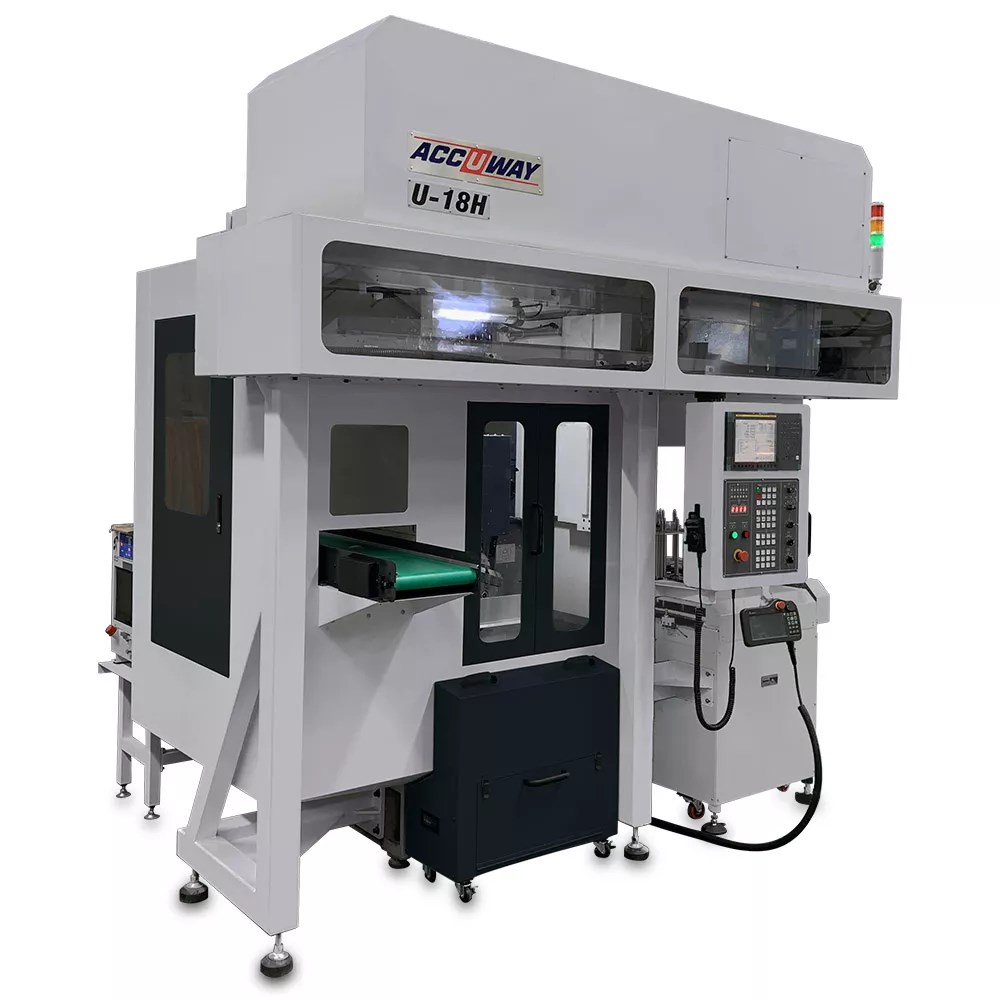

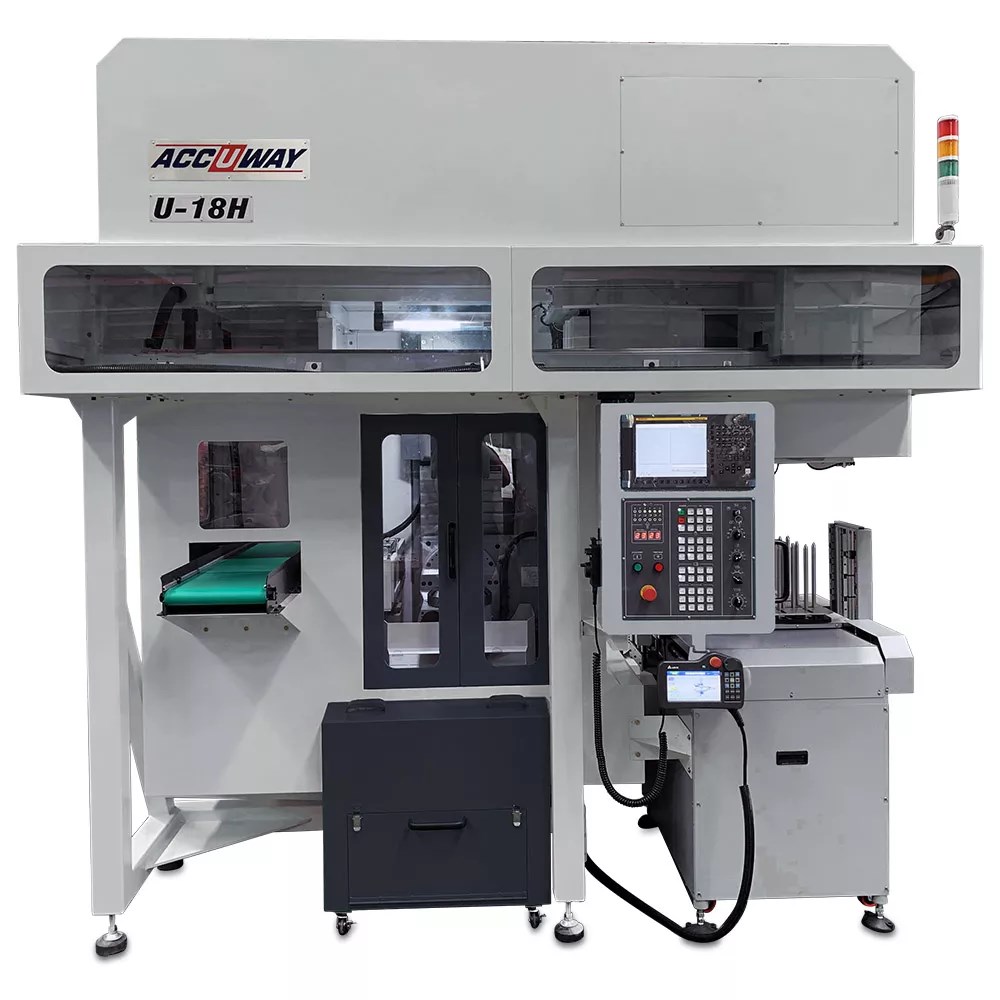

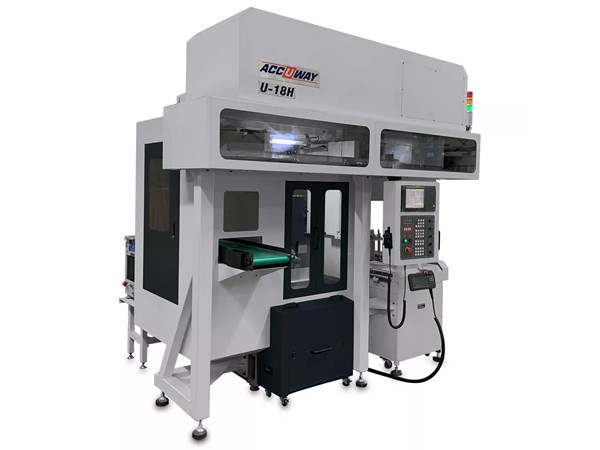

Accuway U-18H Machining Center 5-axis

Homepage / Accuway U-18H Machining Center 5-axis

Spindle speed — 60000 rpm

X axis travel — +5~-50 mm

Table dimension — Ø200 mm

ITEM/MODEL		U-18H
Controller		FANUC 0i-M
SPINDLE
Spindle speed	rpm	60,000
Spindle nose		φ6
Drive system		Direct
TRAVELS
X-axis travel	mm	-5 ~ +50
Y-axis travel	mm	-10 ~ +150
Z-axis travel	mm	300
A-axis travel	degree	-30 / +120
C-axis travel	degree	360
TABLE
Max. speed of rotary axis (C-axis)	rpm	62.5
Max. speed of tilting axis (A-axis)	rpm	40
Max. table loading at 0°	kg	60
Max. table loading at 90°	kg	60
Spindle nose to table	mm	58~358
Table dimension	mm	Ø200
Max. workpiece size	mm	Ø200 x 200
T-slot size	mm	12
FEED RATES
X-axis Rapid Traverse Rate	m / min	48
Y-axis Rapid Traverse Rate	m / min	48
Z-axis Rapid Traverse Rate	m / min	48
Cutting feed rate	m / min	12
Ball screw diameter (X/Y/Z)	mm	32/32/32
Guideway bearing type		Ball
MOTOR
Spindle motor power(Cont. / 30min)	kW	1.2
X/Y/Z feed motor	kW	3/3/4
Coolant pump motor(50Hz/60Hz)	kW	0.53+0.85/0.75+1.27
OTHERS
Air supply	kg/cm²	5.5
Machine dimension L x W x H	m	2.8 x 2.5 x 3
Net weight	kg	3500
