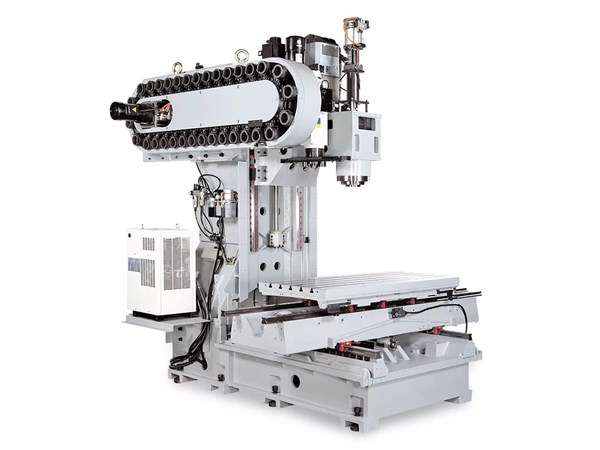

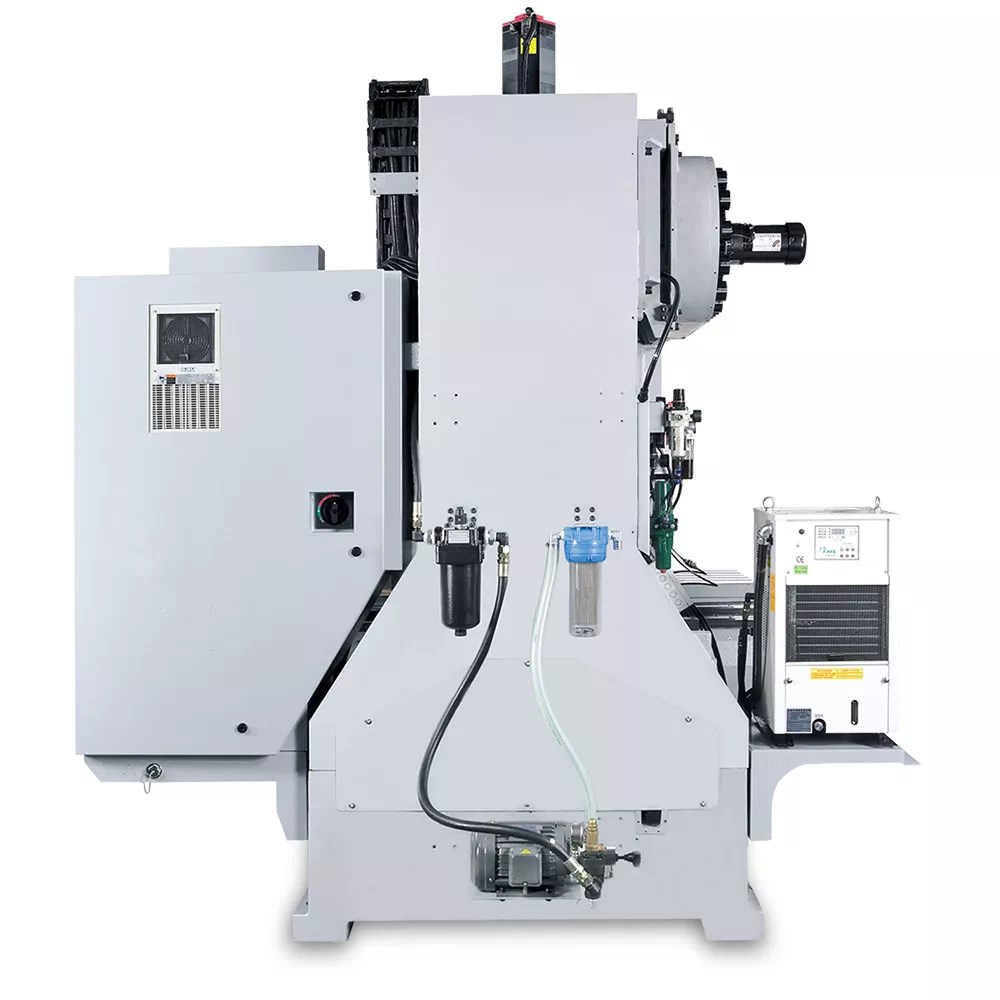

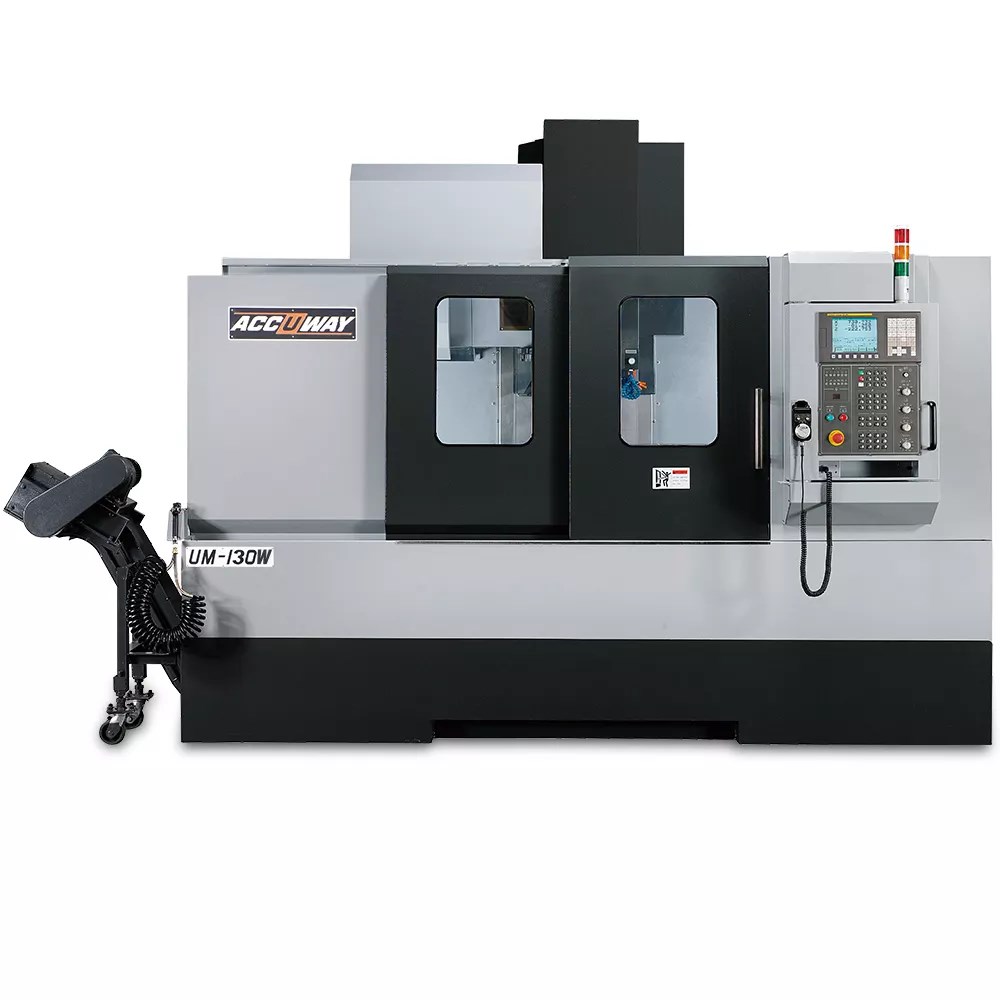

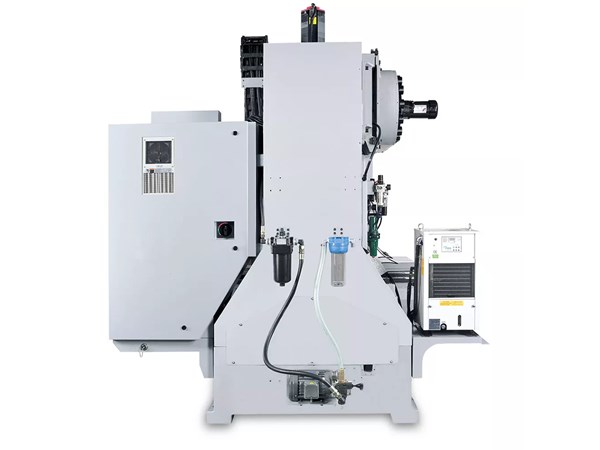

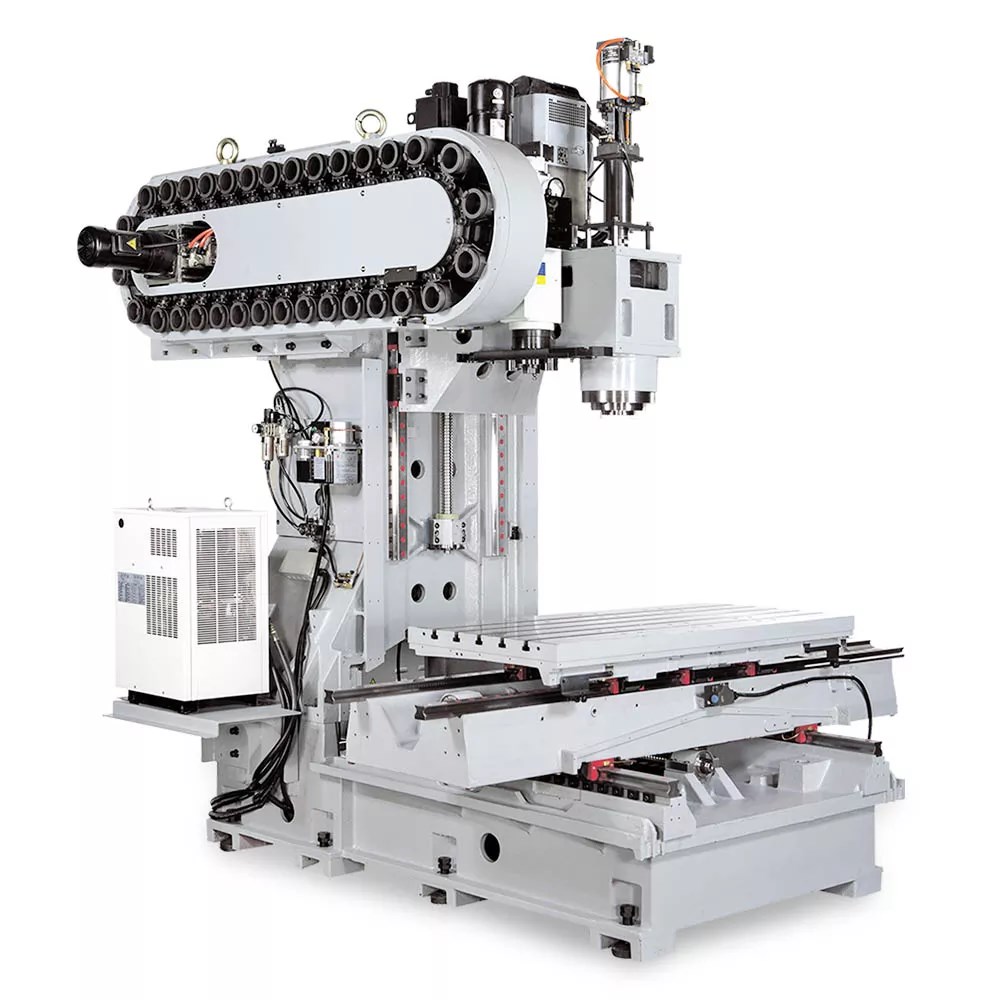

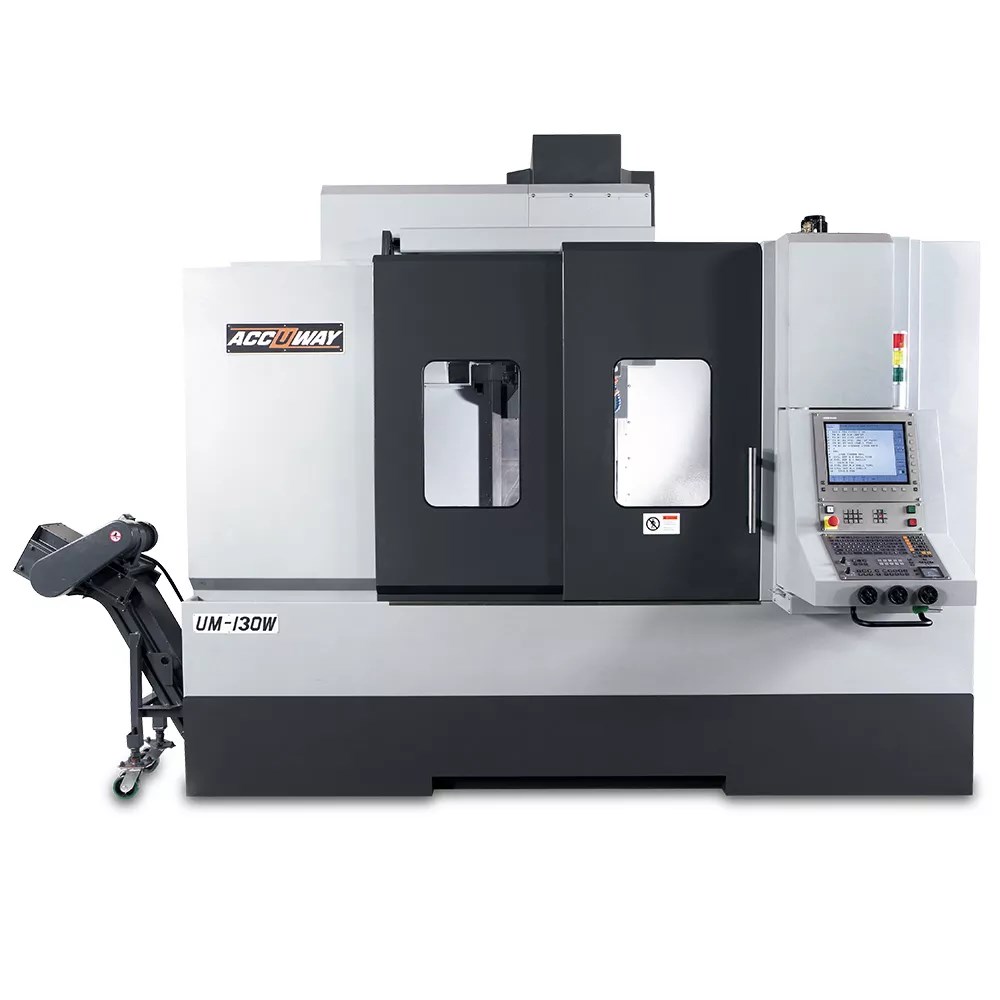

| ITEM/MODEL |
UM-130W |
| Controller |
FANUC 0i-M |
| SPINDLE |
| Spindle speed |
rpm |
6000 |
| Spindle nose taper |
BT50 |
| Bearing inner diameter |
mm |
90 |
| Drive system |
Belt |
| TRAVELS |
| X-axis travel |
mm |
1300 |
| Y-axis travel |
mm |
650 |
| Z-axis travel |
mm |
550 |
| Spindle nose to table |
mm |
155~705 |
| TABLE |
| Table dimension |
mm |
1500 x 650 |
| T-slot(No. of T-slot x width x pitch) |
mm |
5 x 18 x 100 |
| Max. weight on table |
kg |
1500 |
| FEED RATES |
| X-axis Rapid Traverse Rate |
m / min |
30 |
| Y-axis Rapid Traverse Rate |
m / min |
30 |
| Z-axis Rapid Traverse Rate |
m / min |
30 |
| Cutting feed rate |
m / min |
12 |
| Ball screw diameter (X/Y/Z) |
mm |
45/45/45 |
| Guideway bearing type |
Roller |
| AUTOMATIC TOOL CHANGE SYSTEM |
| Tool magazine capacity |
pcs |
24(32) |
| Max. tool weight |
kg |
15 |
| Max. tool diameter |
mm |
105 |
| Max. tool diameter without adjacent tools |
mm |
210 |
| Method of tool exchange |
Arm type |
| Max. tool length |
mm |
300 |
| MOTORS |
| AI contour control |
AICC I |
| Spindle motor power(Cont. / 30min) |
kW |
15/18.5 |
| X/Y/Z feed motor |
kW |
4/4/7 |
| Coolant pump motor(50Hz/60Hz) |
kW |
0.53+0.85/0.75+1.27 |
| OTHERS |
| Air supply |
kg/cm² |
5.5 |
| Machine dimension L x W x H |
m |
3.3 x 2.7 x 3.0 |
| Net weight |
kg |
9000 |
