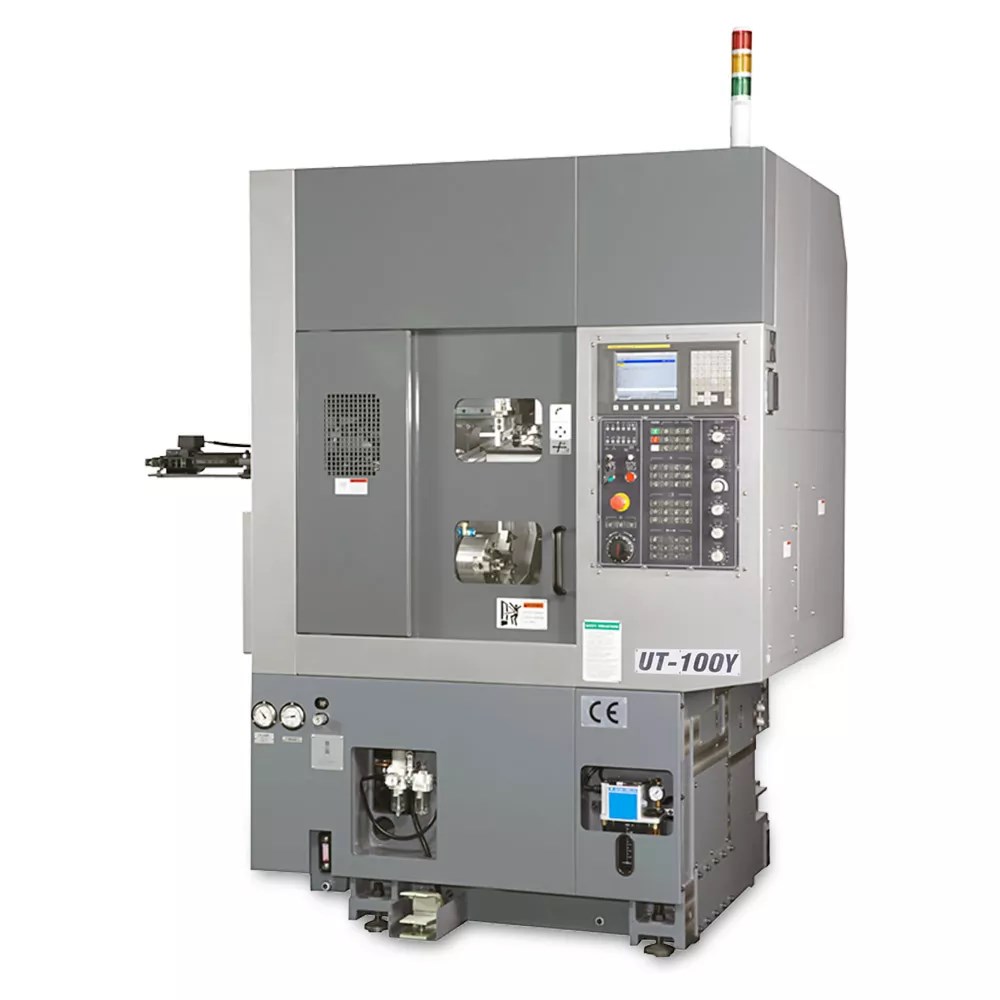

Accuway UT-100Y CNC Lathe Integrated Loader Lathe

Accuway UT-100Y CNC Lathe Integrated Loader Lathe

Chuck Size — 6

Number of Tools (station) — 12

Y axis travel — ±25

Distance Between Spindles — 175 mm

ITEM/MODEL		UT-100Y
Controller		FANUC 0i-T
CAPACITY
Swing over bed	mm	450
Swing over saddle	mm	330
Max. turning diameter	mm	110
Max. turning length	mm	170
Guide way type		Box
SPINDLE
Spindle nose taper	ASA	A2-5
Chuck diameter	inch	6
Bar capacity	mm	30
Spindle speed	rpm	6000
Spindle motor power(Cont. / 30min)	kW	5.5/7.5
TRAVELS
X-axis Travel	mm	80
Z-axis Travel	mm	220
Y-axis Travel	mm	±25
FEED RATES
X-axis Rapid Traverse Rate	m/min	12
Z-axis Rapid Traverse Rate	m/min	18
Y-axis Rapid Traverse Rate	m/min	10
TURRET
Turret driven type		BMT-55
Tooling system		Servo mechanical
Number of tools	station	12
Square tool shank size	mm	25
Round tool shank size	mm	40
Max. Rotary Tool Speed	rpm	6000
Rotary Tool driver power	kW	3.7/5.5
DIMENSION
Machine dimension L x W x H	m	2.4 x 2 x 2.53
Net weight	kg	2300
Loader
Material dimension
Diameter	mm	10~60
Length	mm	20~100
Weight (One side)	kg	0.5/1
Traverse axis:Z
Stroke	mm	360
Rapid traverse rate	m/min	84
Vertical axis:Y
Stroke	mm	660
Rapid traverse rate	m/min	84
