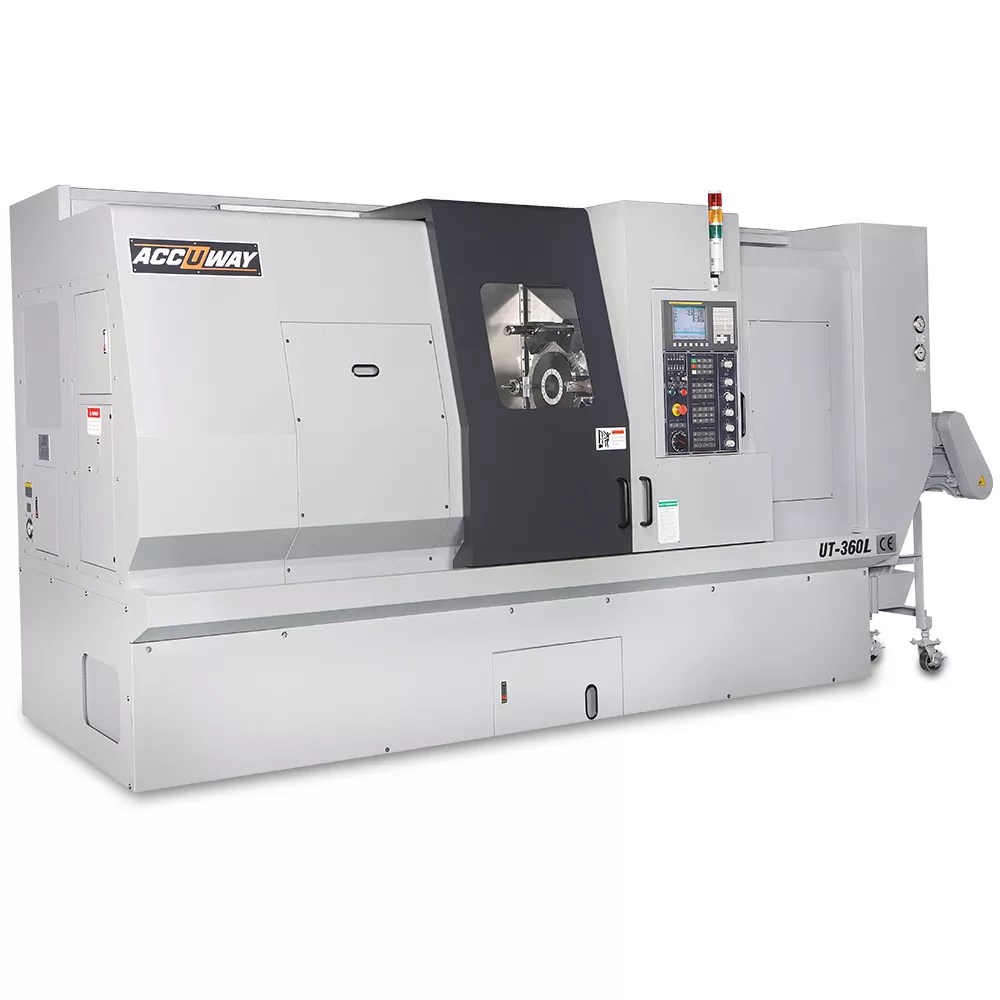

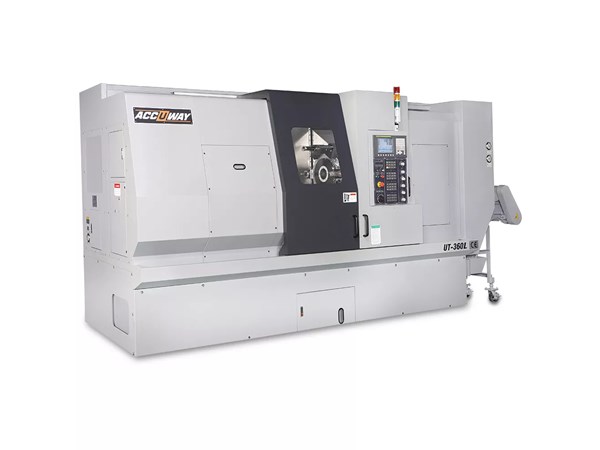

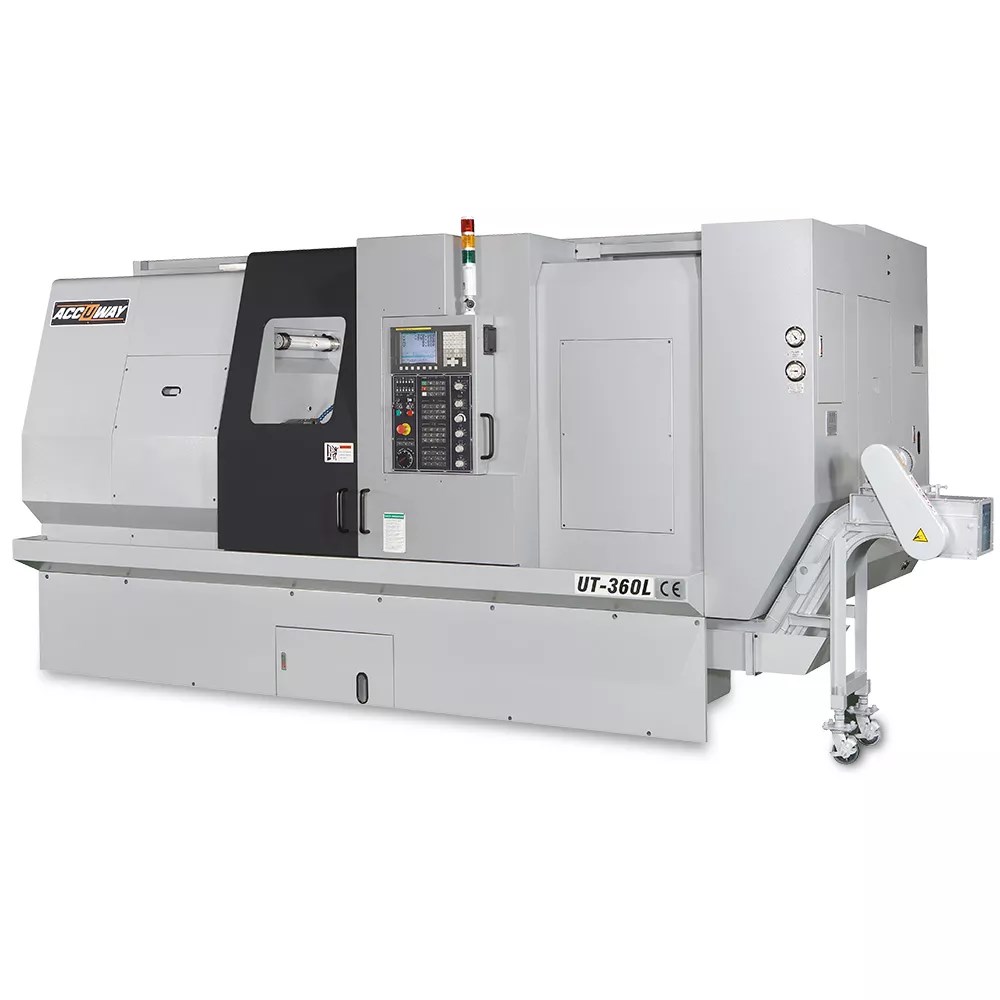

Accuway UT-360L CNC Lathe Single Turret – Single Spindle

Homepage / Accuway UT-360L CNC Lathe Single Turret – Single Spindle

Accuway UT-360L CNC Lathe Single Turret – Single Spindle

Accuway UT-360L CNC Lathe Single Turret – Single Spindle

Accuway UT-360L CNC Lathe Single Turret – Single Spindle

Accuway UT-360L CNC Lathe Single Turret – Single Spindle

Chuck Size — 12/15

Number of Tools (station) — 12

Distance Between Centers — 1130 mm

ITEM/MODEL		UT-360L			UT-360LM
Controller		FANUC 0i-T
CAPACITY
Swing over bed	mm	750			750
Swing over saddle	mm	600			600
Max. turning diameter	mm	540			540
Max. turning length	mm	1130	1050		1040	960
Guide way type		Box
SPINDLE
Spindle nose taper	ASA	A2-8	A2-11		A2-8	A2-11
Chuck diameter	inch	12	15		12	15
Bar capacity	mm	90	105	116.5	90	105	116.5
Spindle speed	rpm	2700	2500	2000	2700	2500	2000
Spindle motor power(Cont. / 30min)	kW	18.5/22 (30/37)			18.5/22 (30/37)
TRAVELS
X-axis Travel	mm	305			305
Z-axis Travel	mm	1250			1250
Y-axis Travel	mm	-			-
FEED RATES
X-axis Rapid Traverse Rate	m/min	20			20
Z-axis Rapid Traverse Rate	m/min	20			20
Y-axis Rapid Traverse Rate	m/min	-			-
TURRET
Tooling system		BOT			BMT-75
Turret driven type		Hydraulic/Servo			Servo mechanical
Number of tools	station	12			12
Square tool shank size	mm	32			32
Round tool shank size	mm	50			50
Max. Rotary Tool Speed	rpm	-			4000
Rotary Tool power	kW	-			5.5

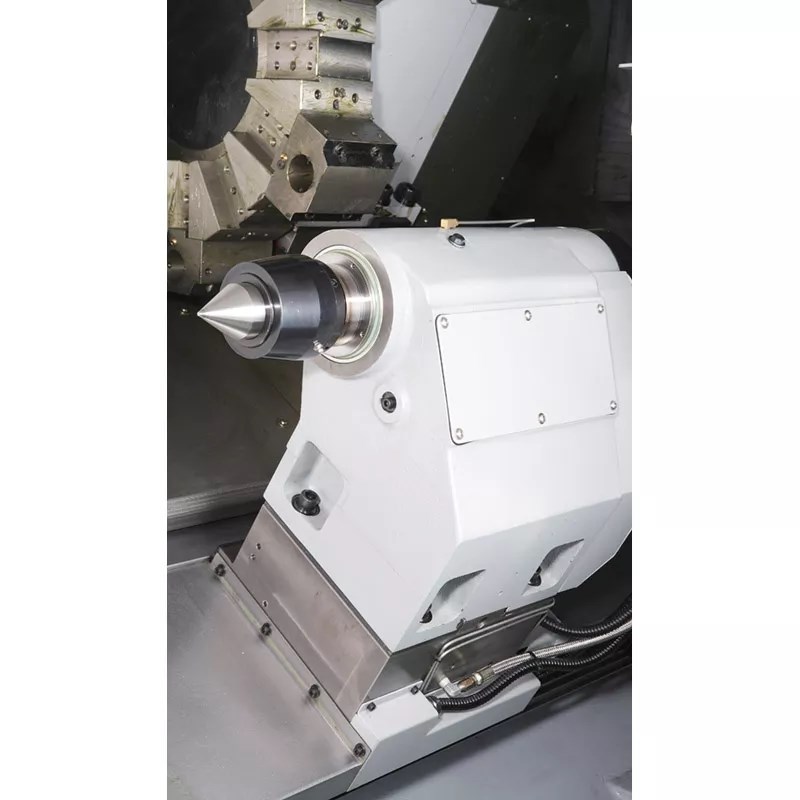

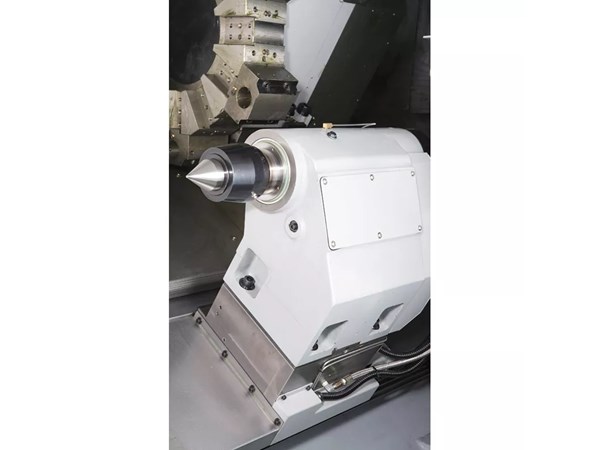

TAILSTOCK
Tailstock body travel	mm	1040			1040
Quill travel	mm	120			120
Quill diameter	mm	120			120
Quill taper	MT#	6			6
DIMENSION
Machine dimension L x W x H	m	4.5 x 2.3 x 2.2			4.5 x 2.3 x 2.2
Net weight	kg	7000			7000
