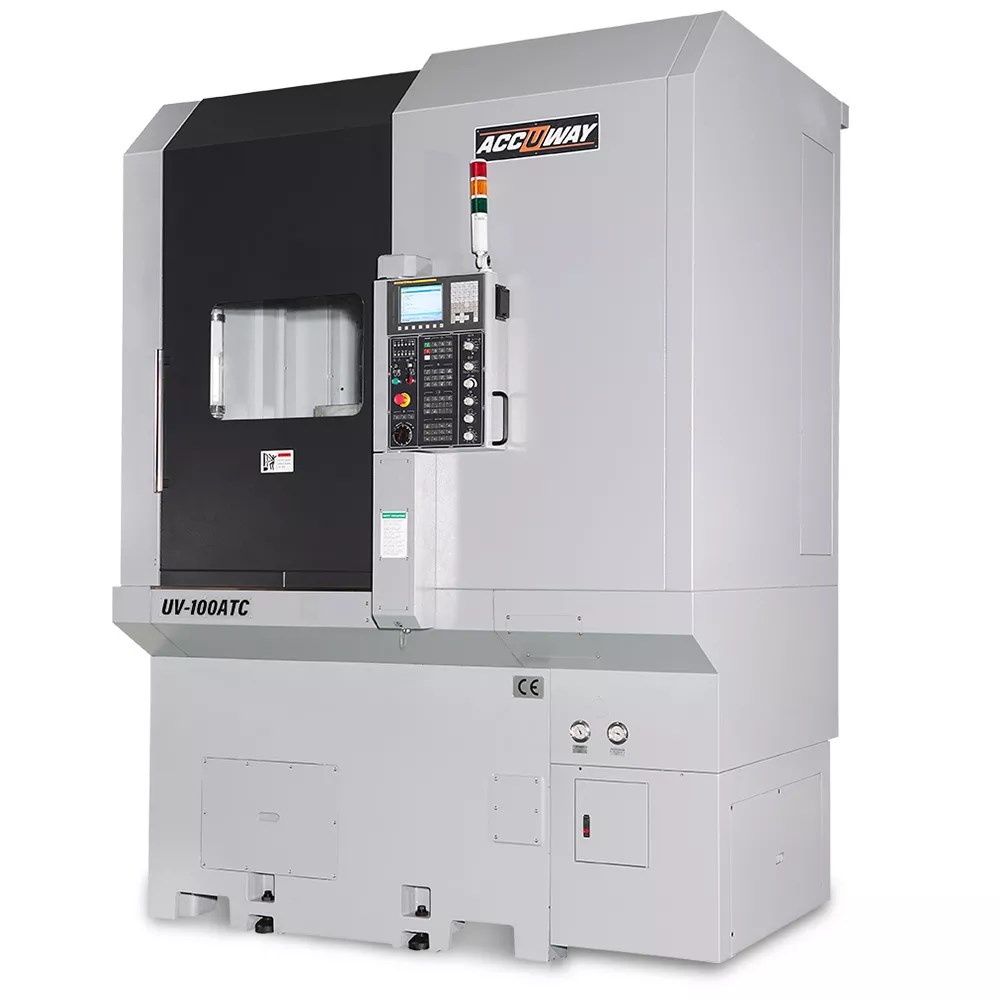

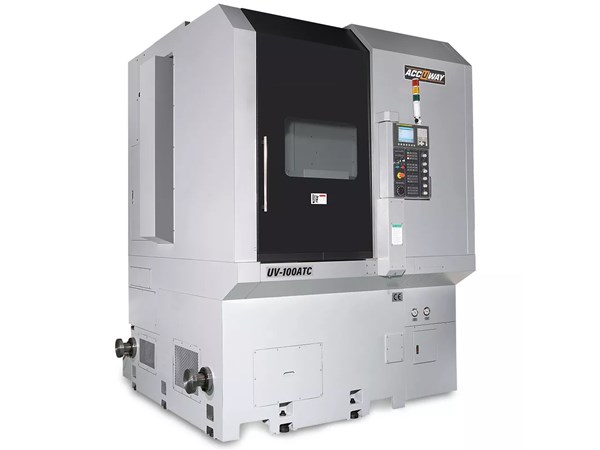

Accuway UV-100ATC Vertical Lathes ACT Type
Homepage
/
Accuway UV-100ATC Vertical Lathes ACT Type
Accuway UV-100ATC Vertical Lathes ACT Type
Chuck Size —
32/40
Number of Tools (station) —
12
Max. turning diameter
—
1000 mm
Get a Quote
Description
ITEM/MODEL
UV-100ATC
Controller
FANUC 0i-T
CAPACITY
Swing over bed
mm
1100
Max. turning diameter
mm
1000
Max. turning length
mm
800
Guide way type
Box way
SPINDLE
Spindle nose taper
ASA
A2-15
Chuck diameter
inch
24(32/40)
Spindle Speed
rpm
1200
Spindle drive system
2-step gearbox + Belt
Spindle Motor Power(Cont. /30min)
kW
30/37 (37/45, 45/55)
TOOL SPINDLE
Spindle taper
BT50
TRAVELS
X-axis Travel
mm
765
Z-axis Travel
mm
800
FEEDS
X-axis Rapid Traverse Rate
m/min
15
Z-axis Rapid Traverse Rate
m/min
7
TOOL MAGAZINE
Indexing type
Servo-gear
Number of tools
station
12
Max. tool length
mm
400
Max. tool weight
kg
50
Max. magazine load
kg
420
DIMENSION
Machine dimension L x W x H
m
3.1 x 3.7 x 4.6
Net weight
kg
16500
