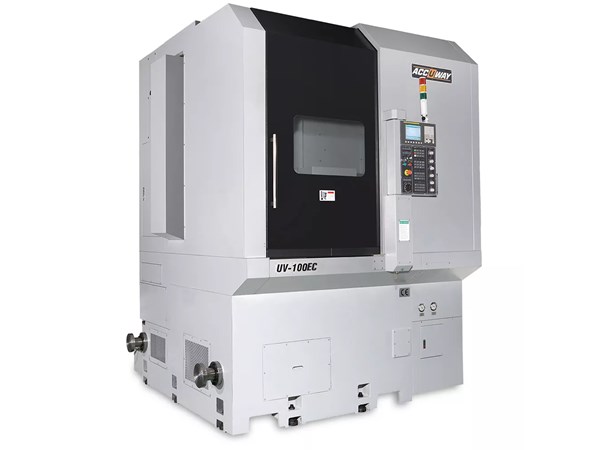

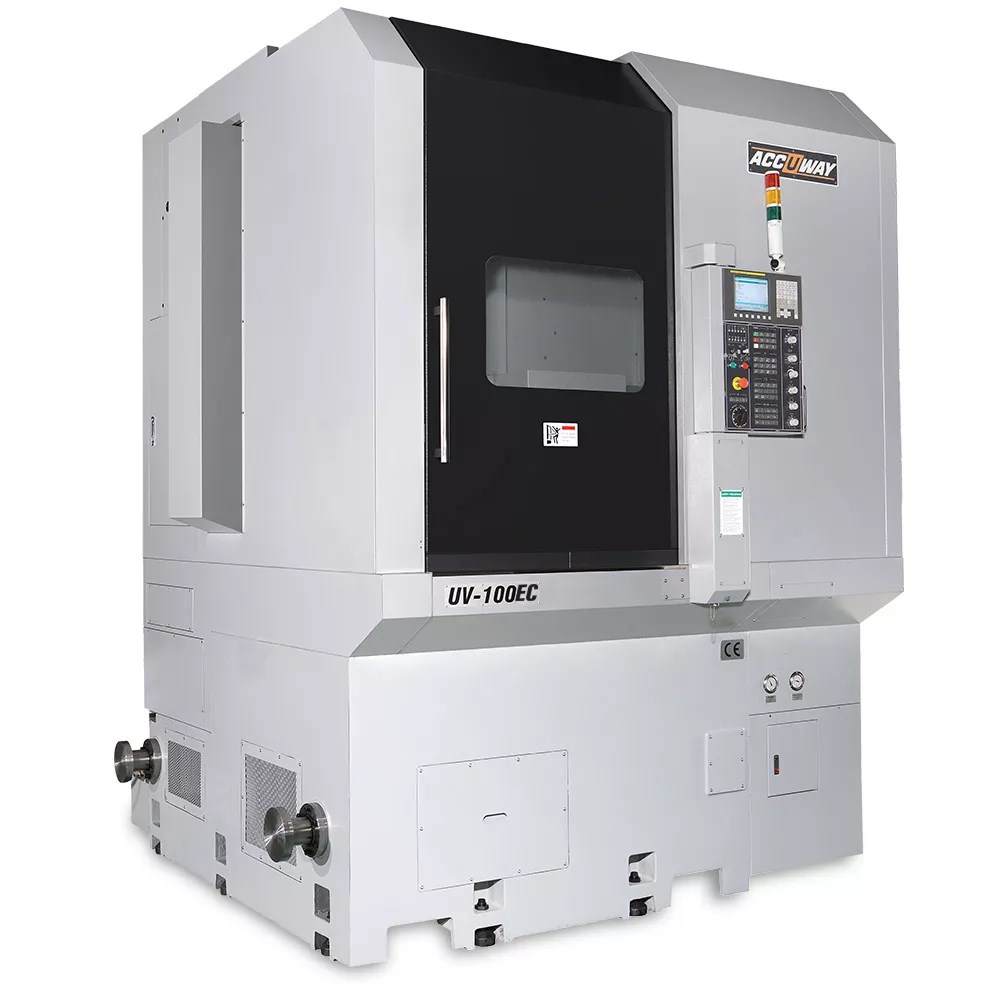

Accuway UV-100EC Vertical Lathes Turret Type

Accuway UV-100EC Vertical Lathes Turret Type

Accuway UV-100EC Vertical Lathes Turret Type

Chuck Size — 32/40

Number of Tools (station) — 12

Max. turning diameter — 720/950 mm

ITEM/MODEL		UV-100EC
Controller		FANUC 0i-T
CAPACITY
Swing over bed	mm	1100
Max. turning diameter	mm	1000
Max. turning length	mm	700
Guide way type		Box way
SPINDLE
Spindle nose taper	ASA	A2-15
Chuck diameter	inch	24(32/40)
Spindle Speed	rpm	1200
Spindle drive system		2-step gearbox + Belt
Spindle Motor Power(Cont. /30min)	kW	30/37 (37/45,45/55)
TRAVELS
X-axis Travel	mm	550
Z-axis Travel	mm	800
FEEDS
X-axis Rapid Traverse Rate	m/min	15
Z-axis Rapid Traverse Rate	m/min	7
TURRET
Tooling system		BMT
Turret driven type		Servo mechanical
Number of tools	station	12
Square tool shank size	mm	32
Round tool shank size	mm	50
DIMENSION
Machine dimension L x W x H	m	3.1 x 3.7 x 4.2
Net weight	kg	16000
