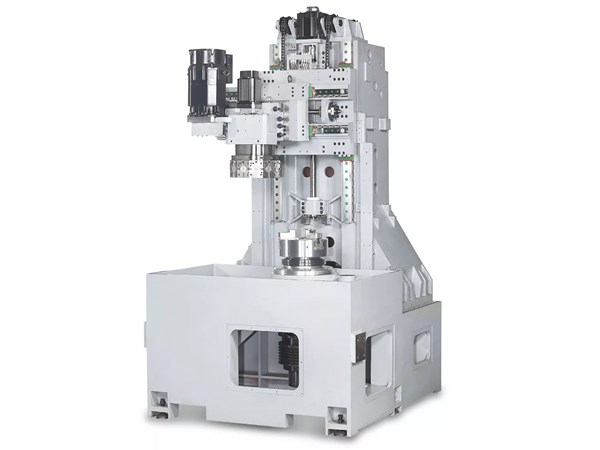

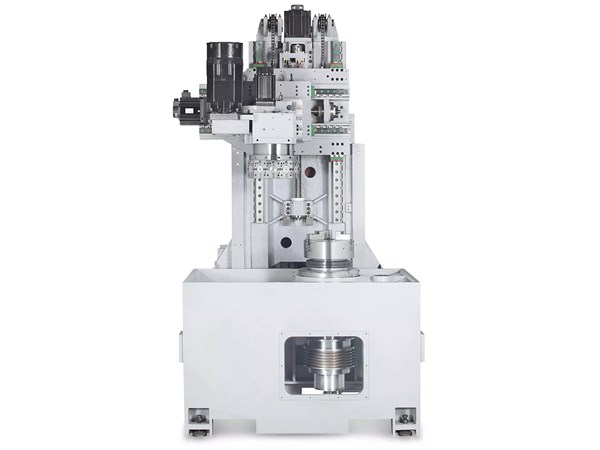

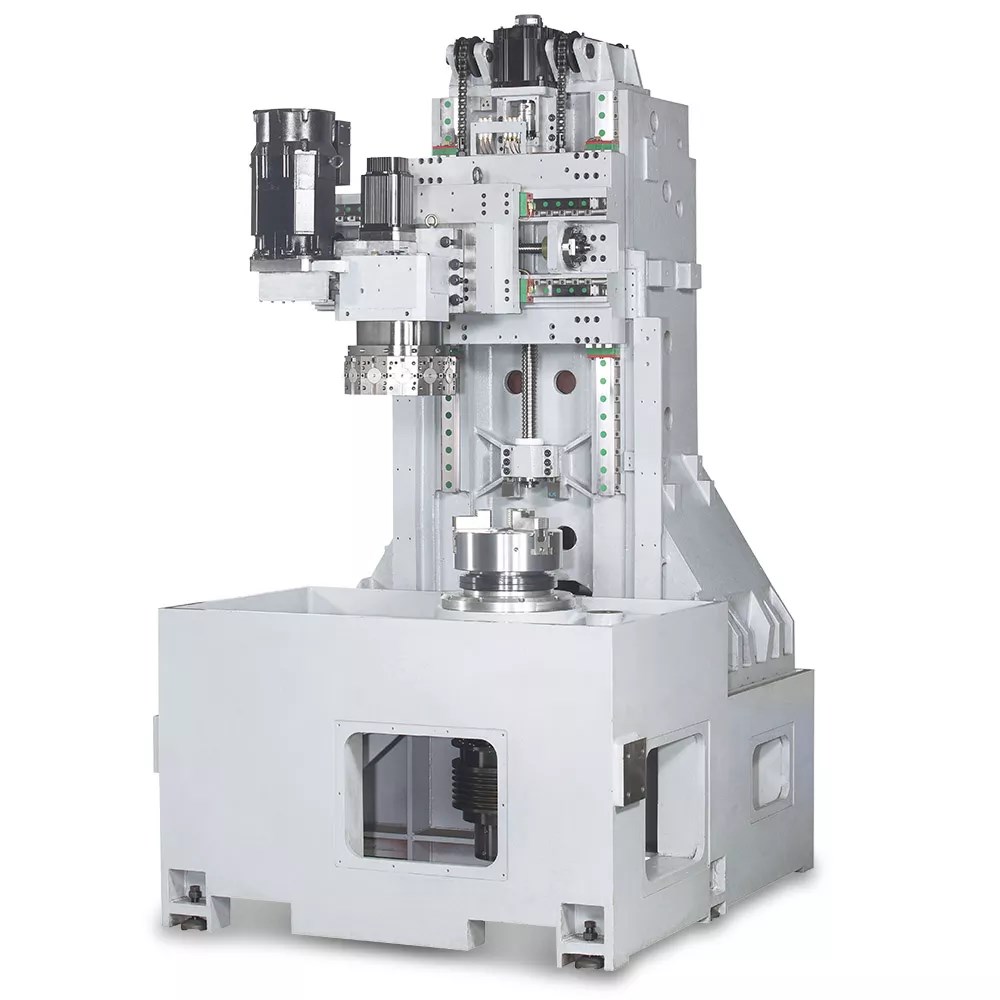

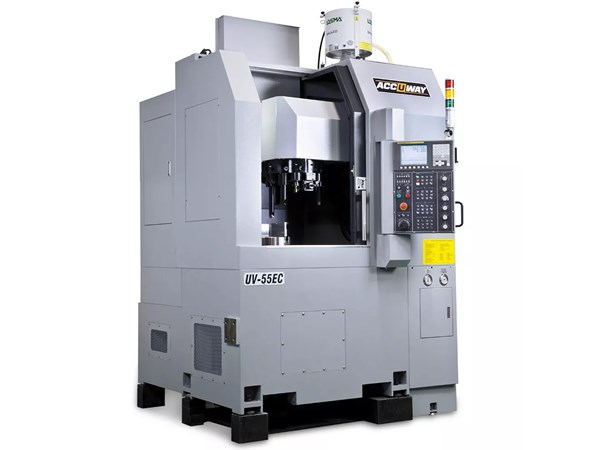

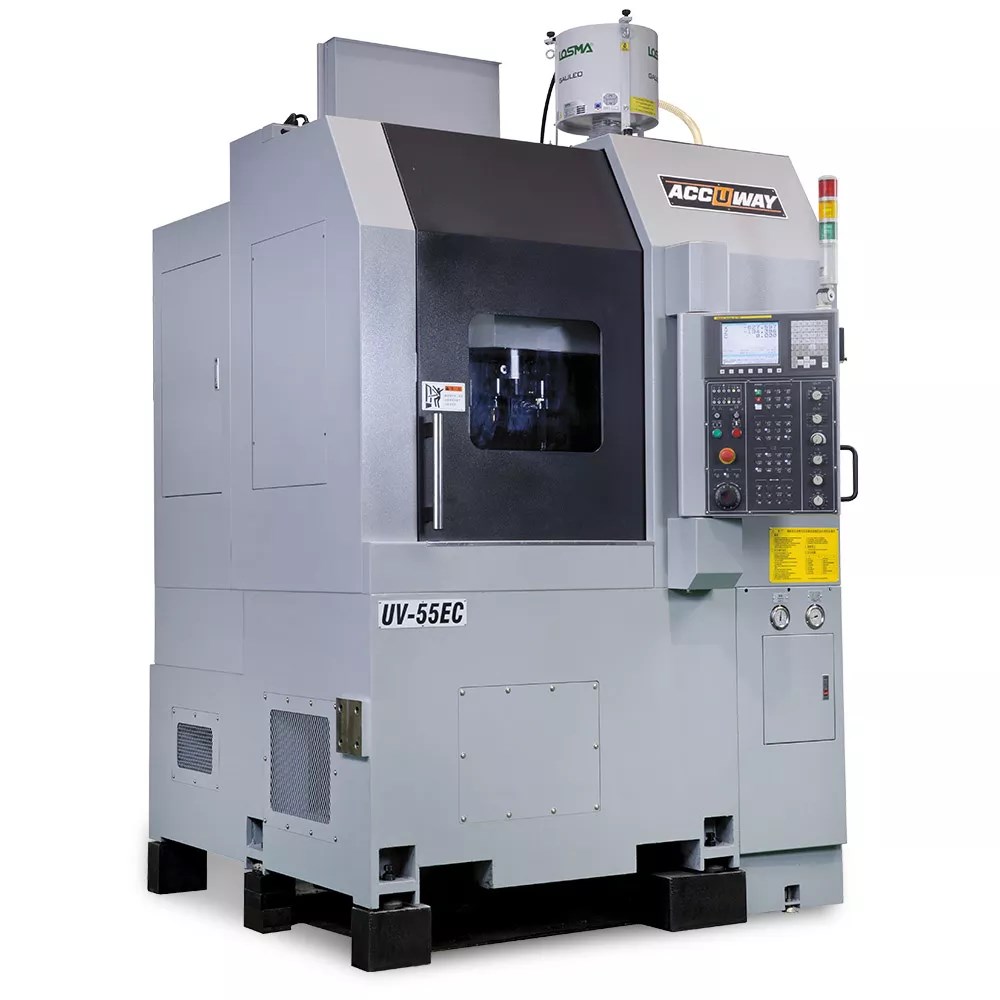

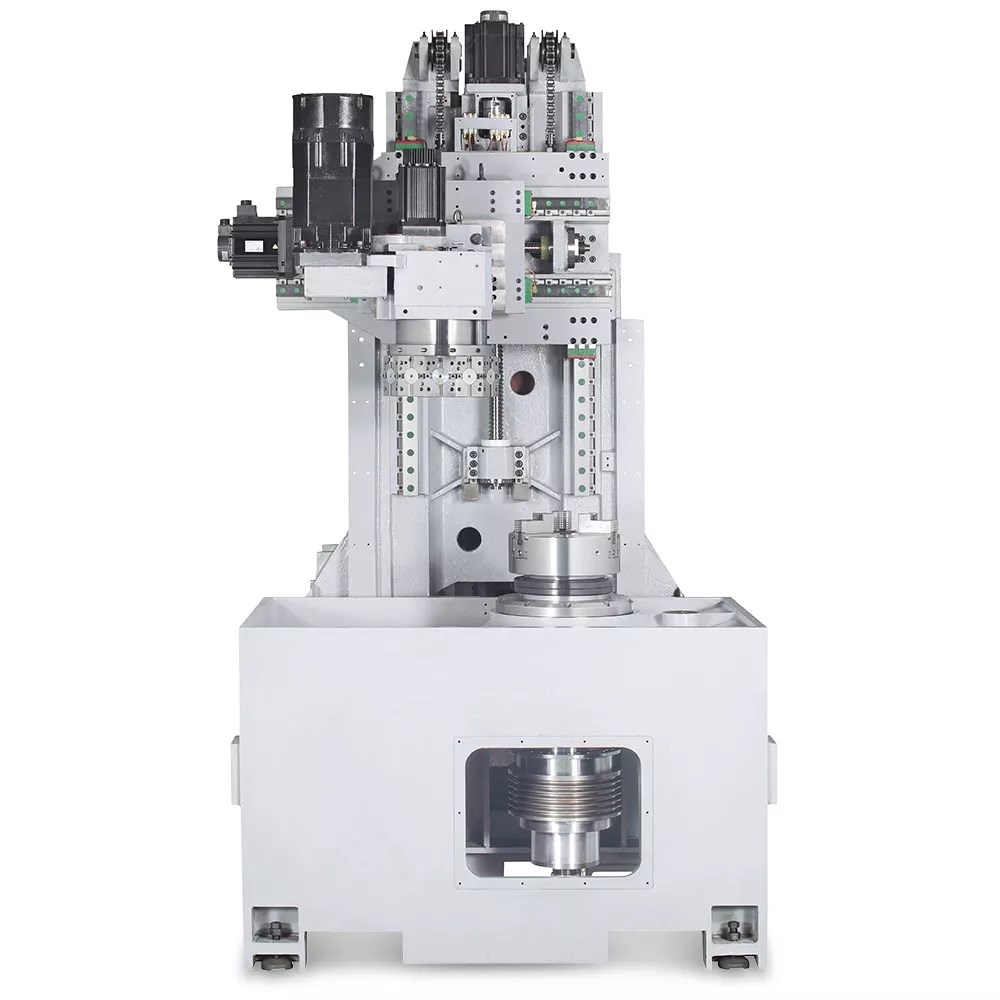

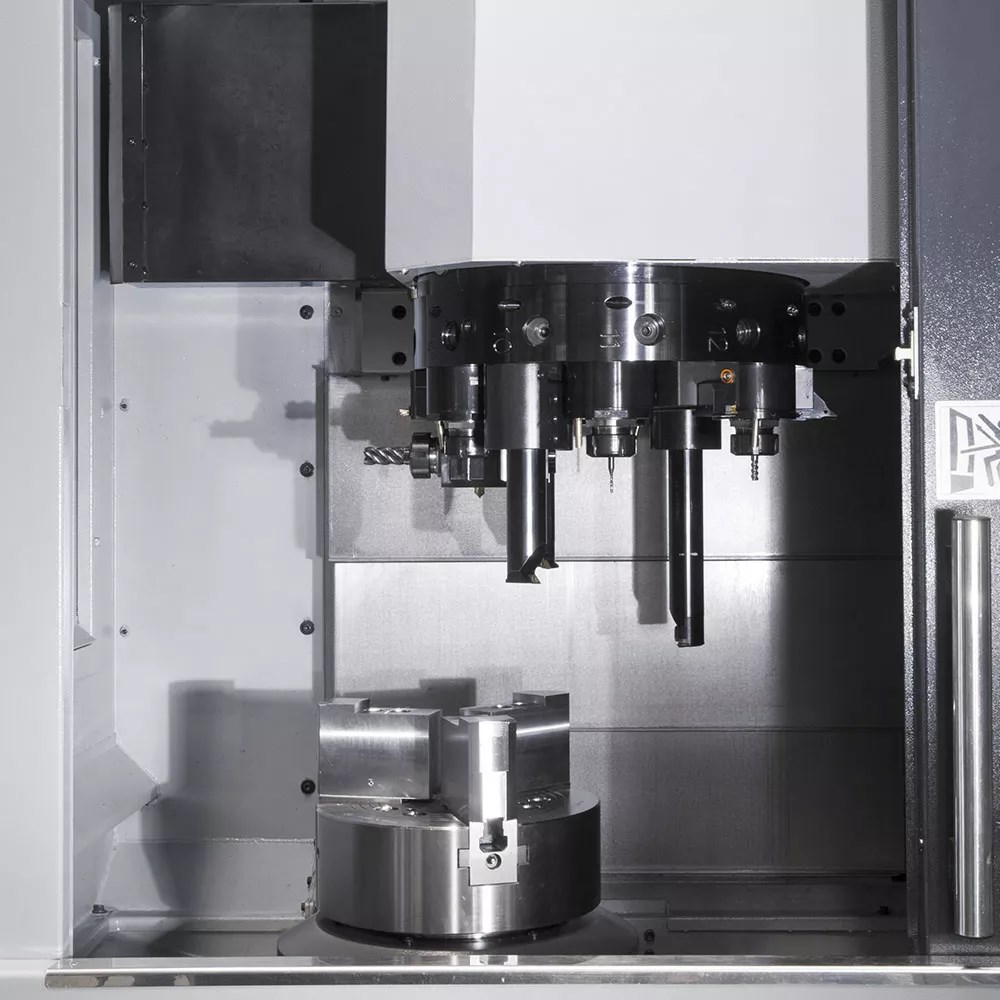

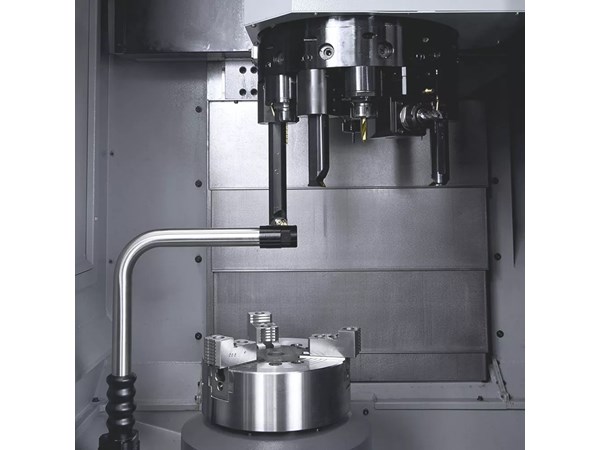

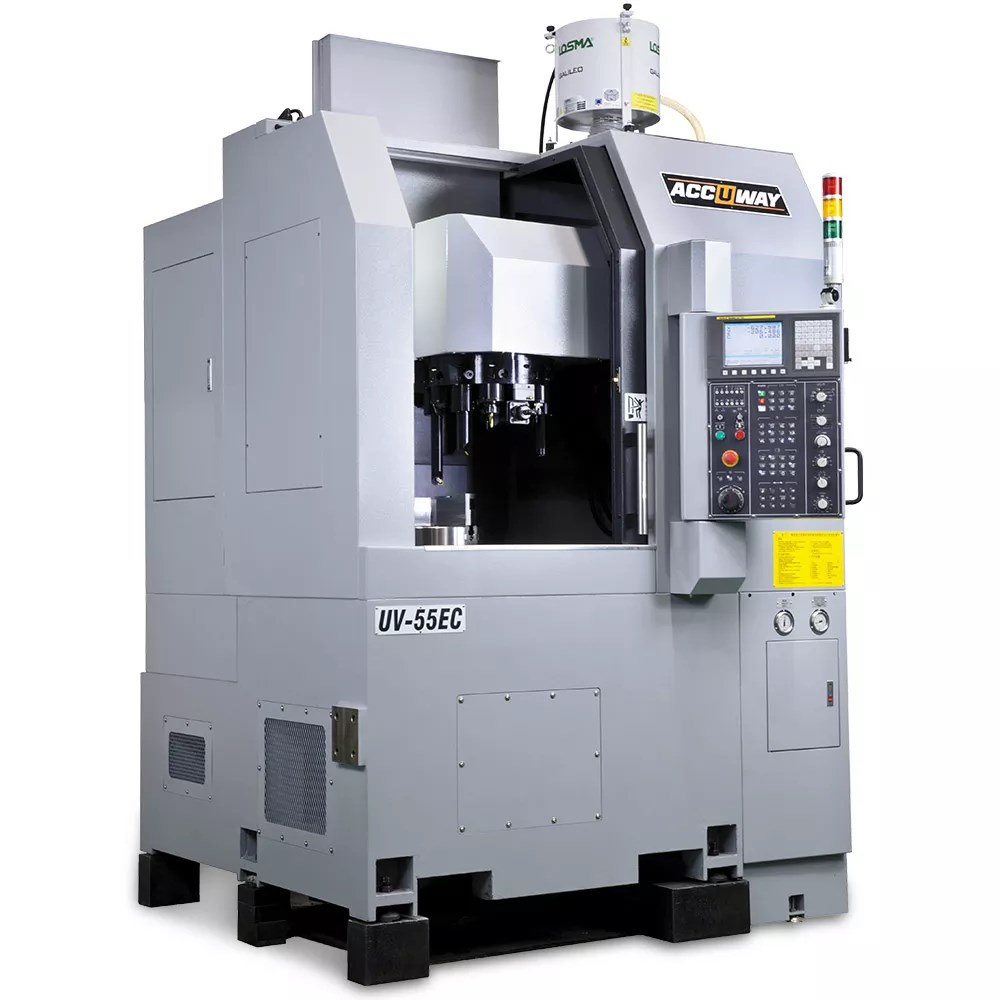

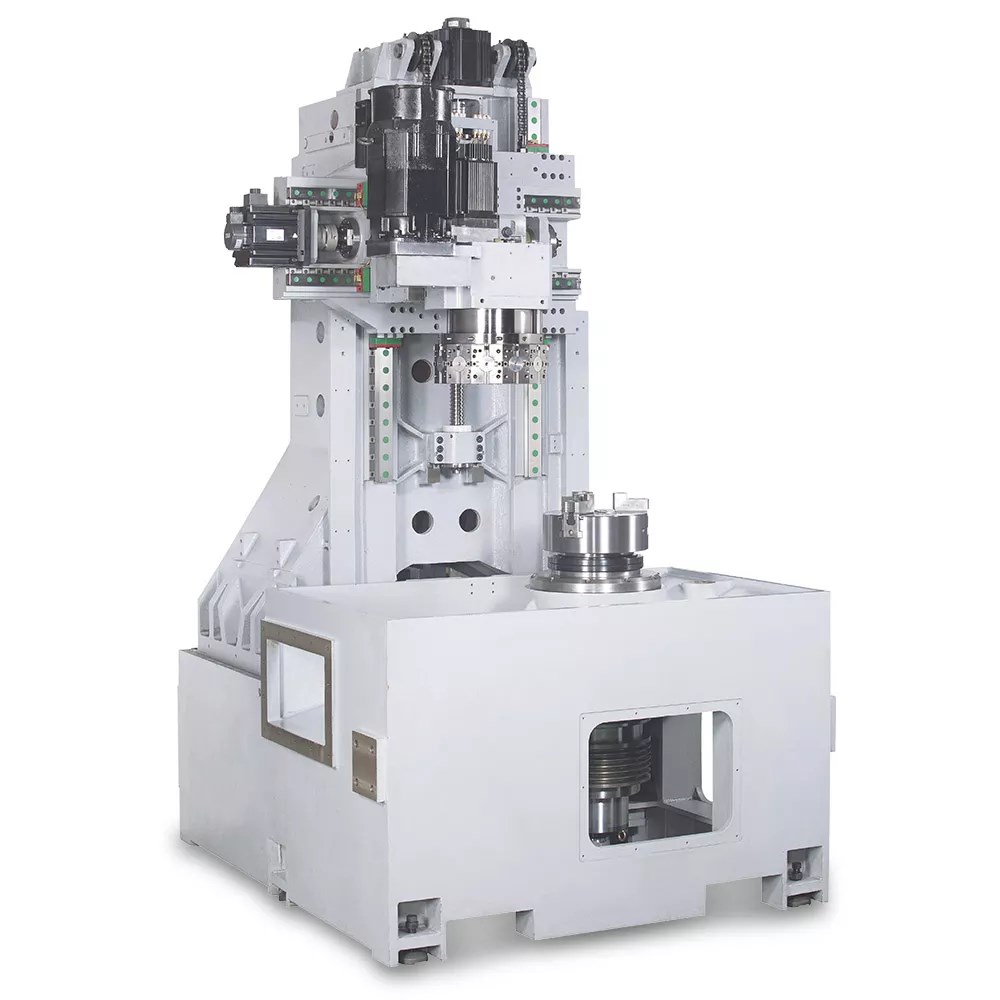

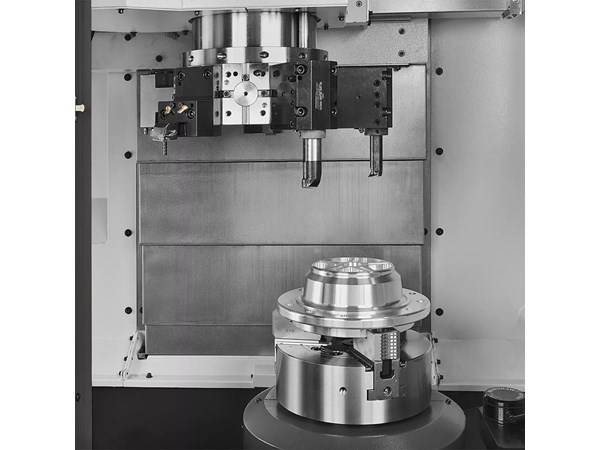

Accuway UV-55EC Vertical Lathes Turret Type
Homepage
/
Accuway UV-55EC Vertical Lathes Turret Type
Accuway UV-55EC Vertical Lathes Turret Type
Chuck Size —
12/15
Number of Tools (station) —
12
Max. turning diameter
—
550 mm
Get a Quote
Description
ITEM/MODEL
UV-55EC
Controller
FANUC 0i-T
CAPACITY
Swing over bed
mm
750
Max. turning diameter
mm
550
Max. turning length
mm
550
Guide way type
Linear
SPINDLE
Spindle nose taper
ASA
A2-8
Chuck diameter
inch
12(15)
Spindle Speed
rpm
2500
Spindle drive system
Belt
Spindle Motor Power(Cont. /30min)
kW
15/18.5
TRAVELS
X-axis Travel
mm
295
Z-axis Travel
mm
550
FEEDS
X-axis Rapid Traverse Rate
m/min
20
Z-axis Rapid Traverse Rate
m/min
7

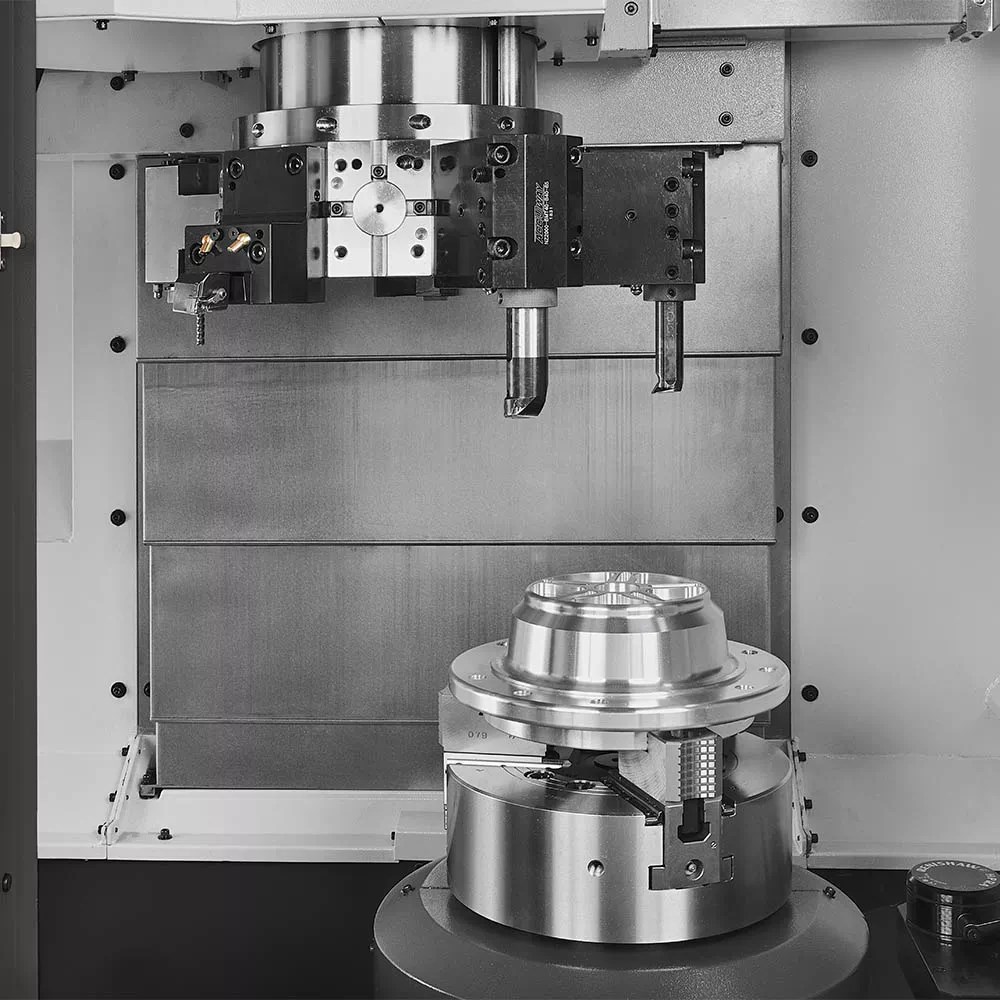

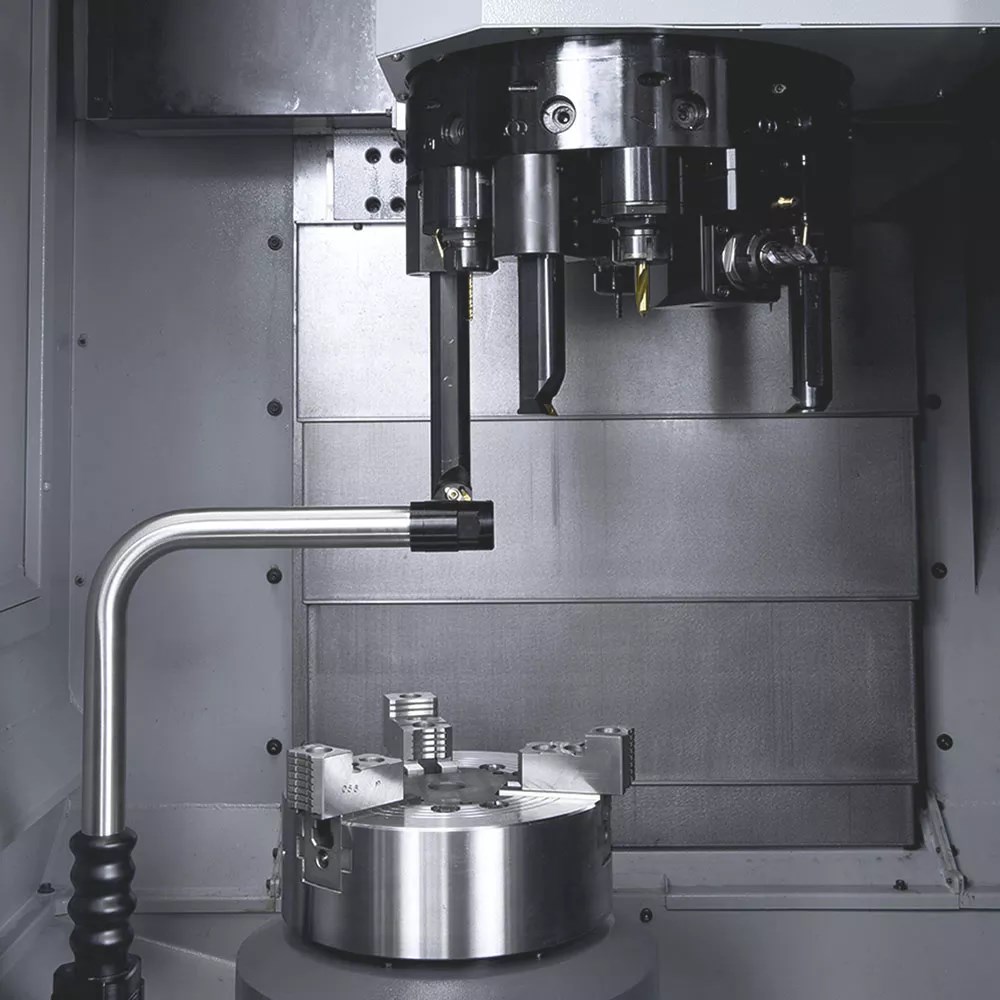

TURRET
Tooling system
BMT
Turret driven type
Servo mechanical
Number of tools
station
12
Square tool shank size
mm
25
Round tool shank size
mm
40
DIMENSION
Machine dimension L x W x H
m
2.3 x 3.0 x 3.0
Net weight
kg
5300
