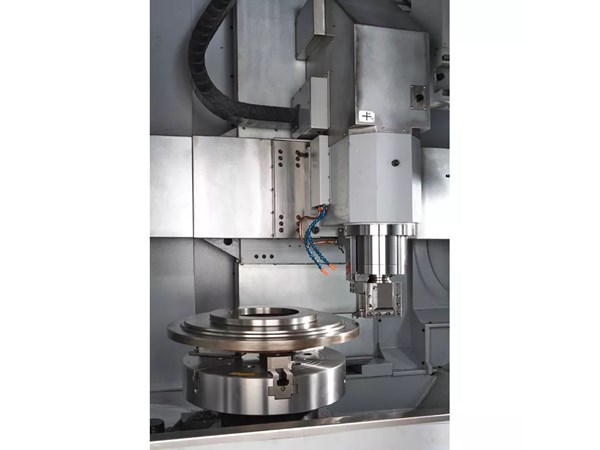

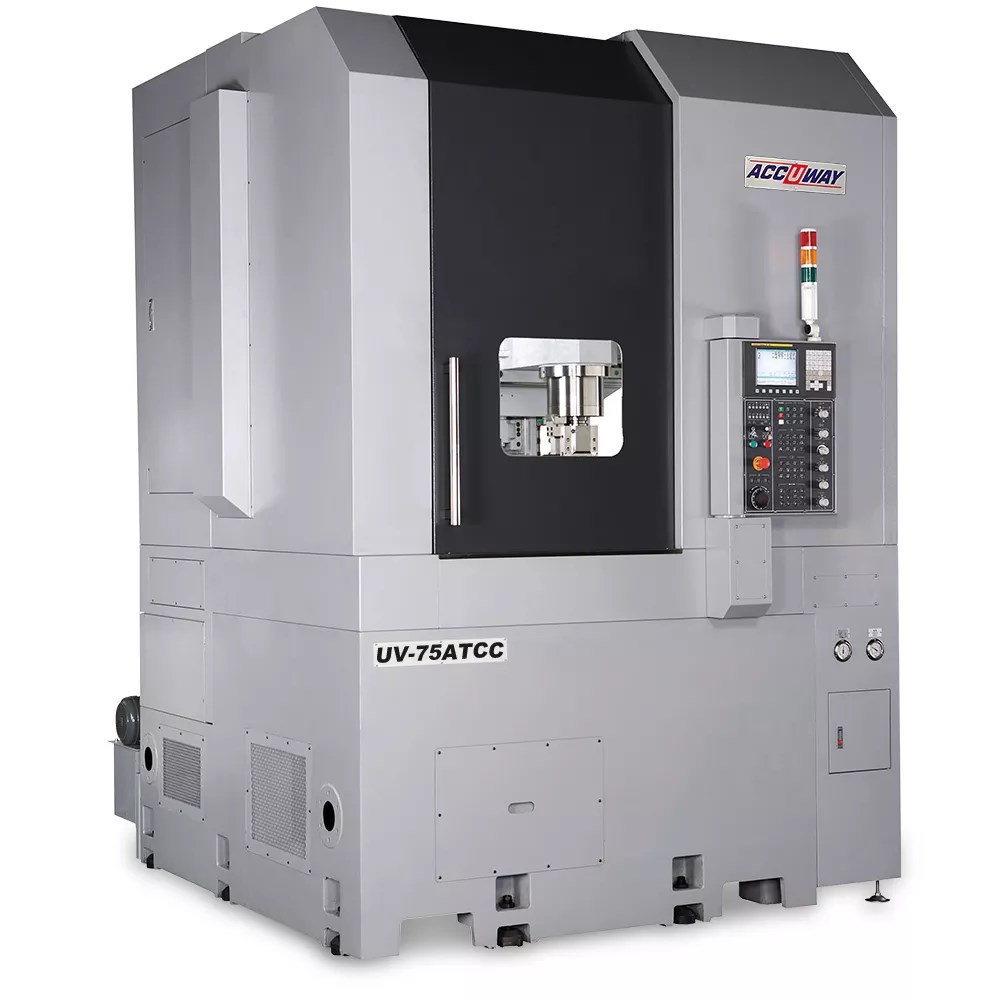

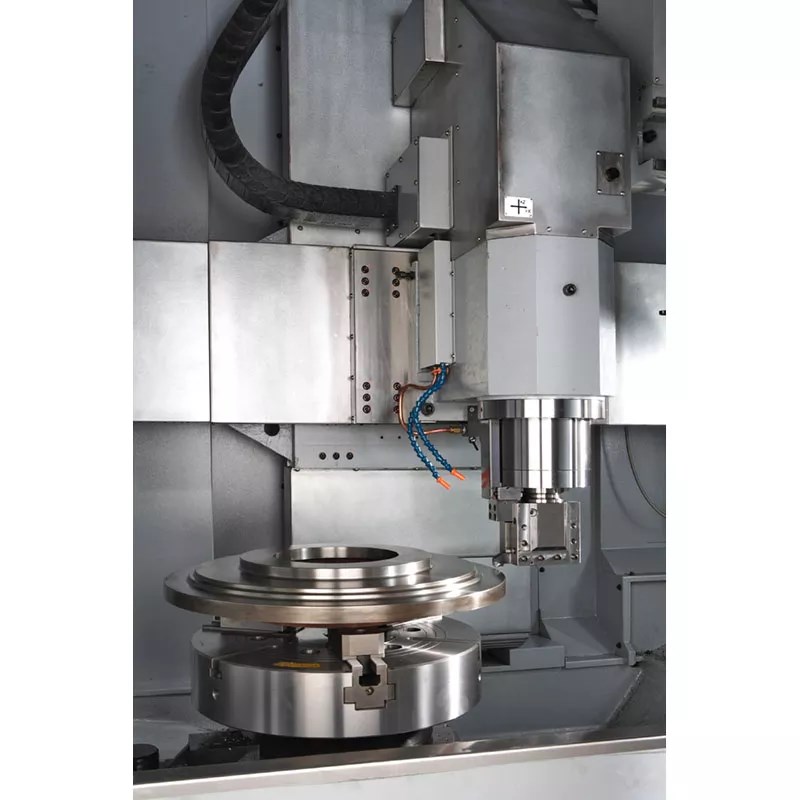

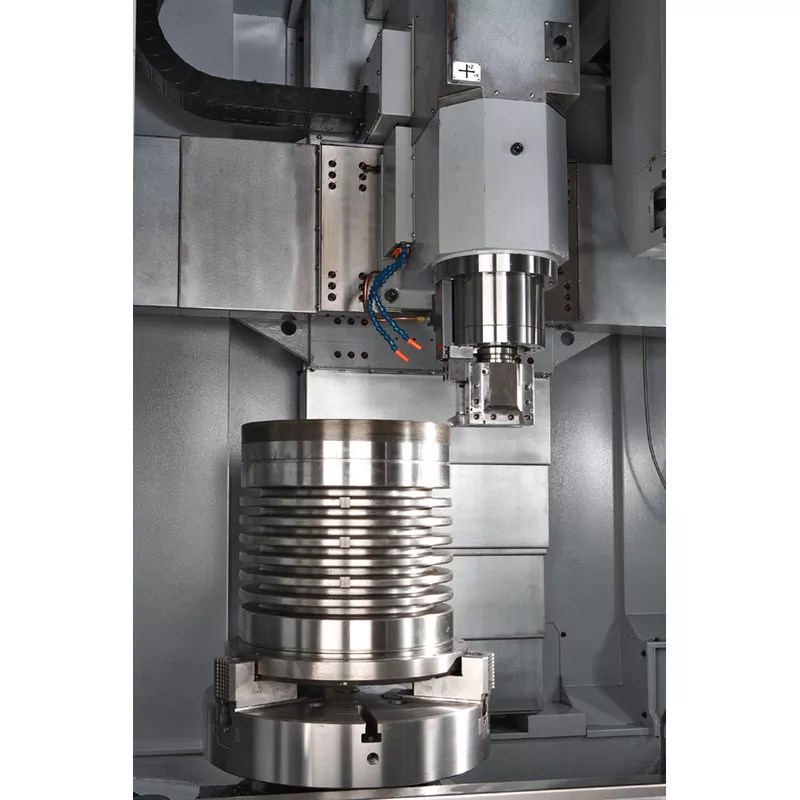

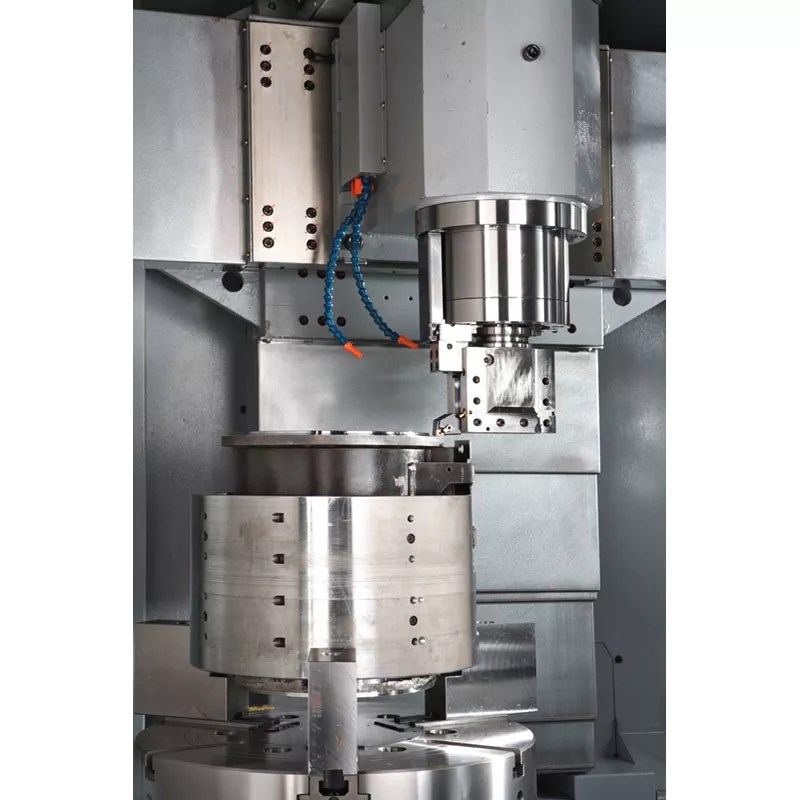

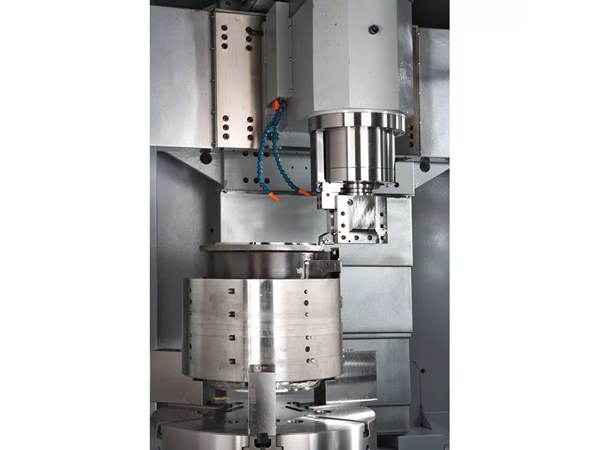

Accuway UV-75ATCC Vertical Lathes ACT Type

Homepage / Accuway UV-75ATCC Vertical Lathes ACT Type

Accuway UV-75ATCC Vertical Lathes ACT Type

Accuway UV-75ATCC Vertical Lathes ACT Type

Accuway UV-75ATCC Vertical Lathes ACT Type

Accuway UV-75ATCC Vertical Lathes ACT Type

Accuway UV-75ATCC Vertical Lathes ACT Type

Accuway UV-75ATCC Vertical Lathes ACT Type

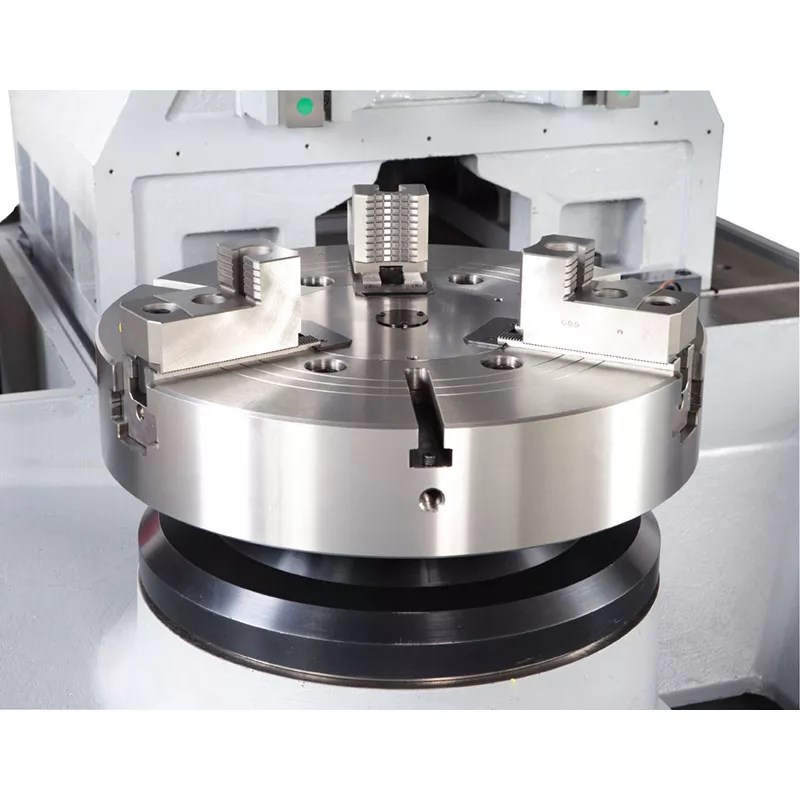

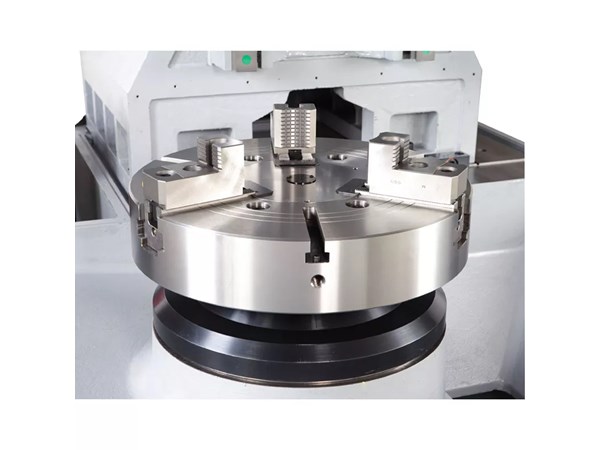

Chuck Size — 24/32

Number of Tools (station) — 12

Max. turning diameter — 750 mm

ITEM/MODEL		UV-75ATCC
Controller		FANUC 0i-T
CAPACITY
Swing over bed	mm	850
Max. turning diameter	mm	750
Max. turning length	mm	800
Guide way type		Linear(Box way)
SPINDLE
Spindle nose taper	ASA	A2-11
Chuck diameter	inch	24(32)
Spindle Speed	rpm	1600
Spindle drive system		Belt
Spindle Motor Power(Cont. /30min)	kW	18.5/22
TOOL SPINDLE
Spindle taper		BT50
Max. spindle speed	rpm	3000
Spindle drive system		Belt
Spindle bearing diameter	mm	100
Spindle Motor Power(Cont. /30min)	kW	5.5/7.5
Max. spindle torque	N-m	105
TRAVELS
X-axis Travel	mm	650
Z-axis Travel	mm	800
FEEDS
X-axis Rapid Traverse Rate	m/min	20
Z-axis Rapid Traverse Rate	m/min	7
TOOL MAGAZINE
Indexing type		Servo-gear
Number of tools	station	12
Max. tool length	mm	400
Max. tool weight	kg	50
Max. magazine load	kg	420
DIMENSION
Machine dimension L x W x H	m	2.7 x 3.7 x 4.0
Net weight	kg	16500
