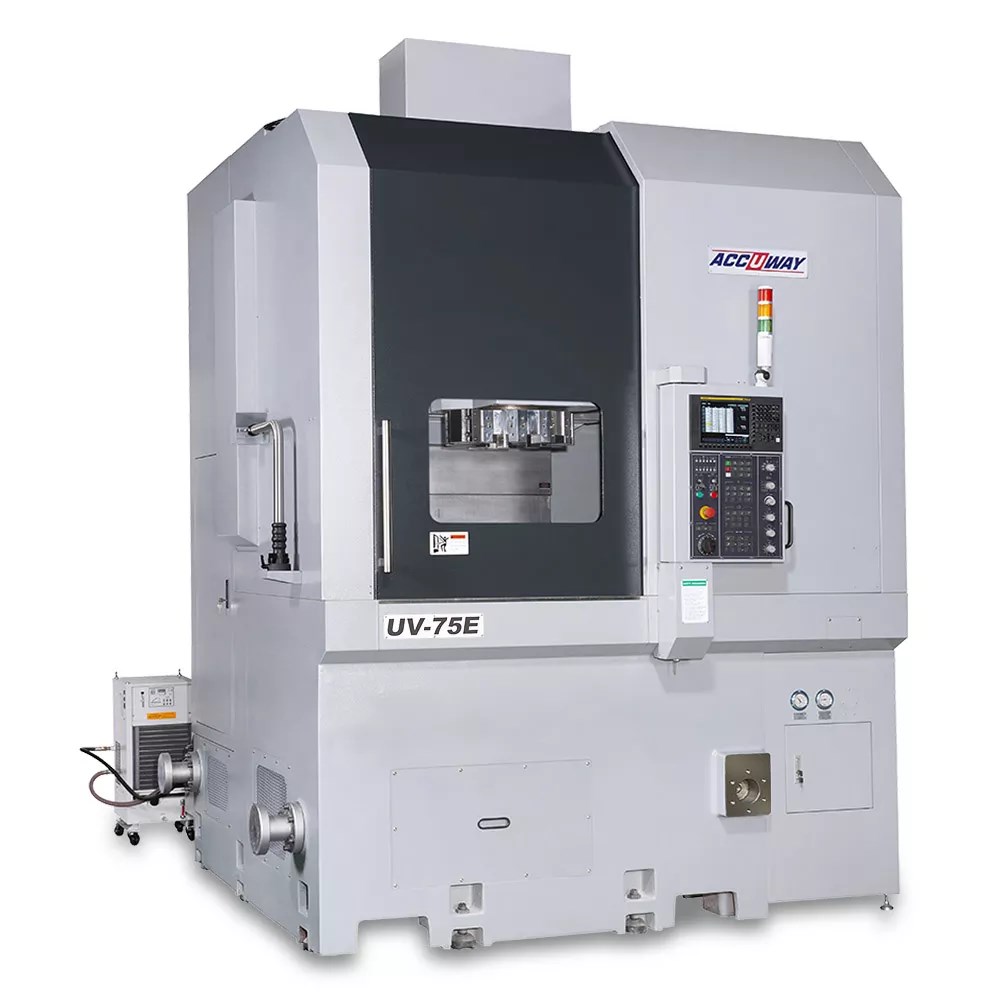

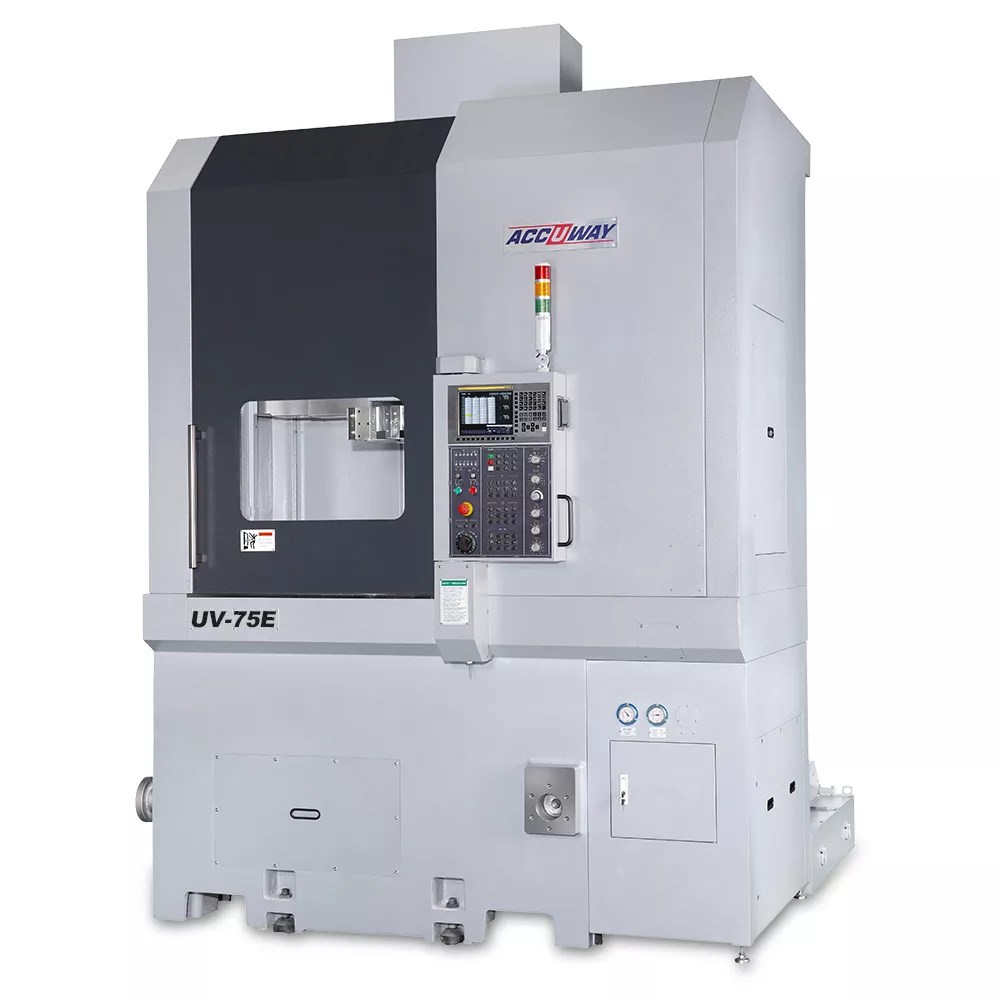

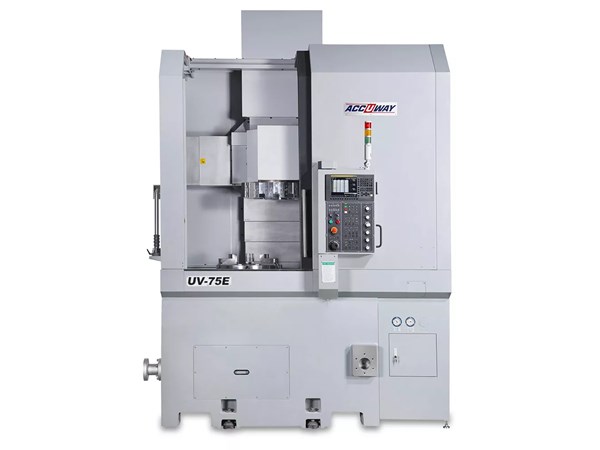

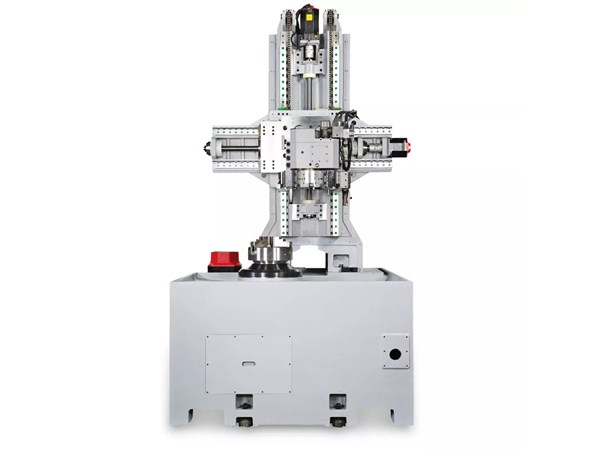

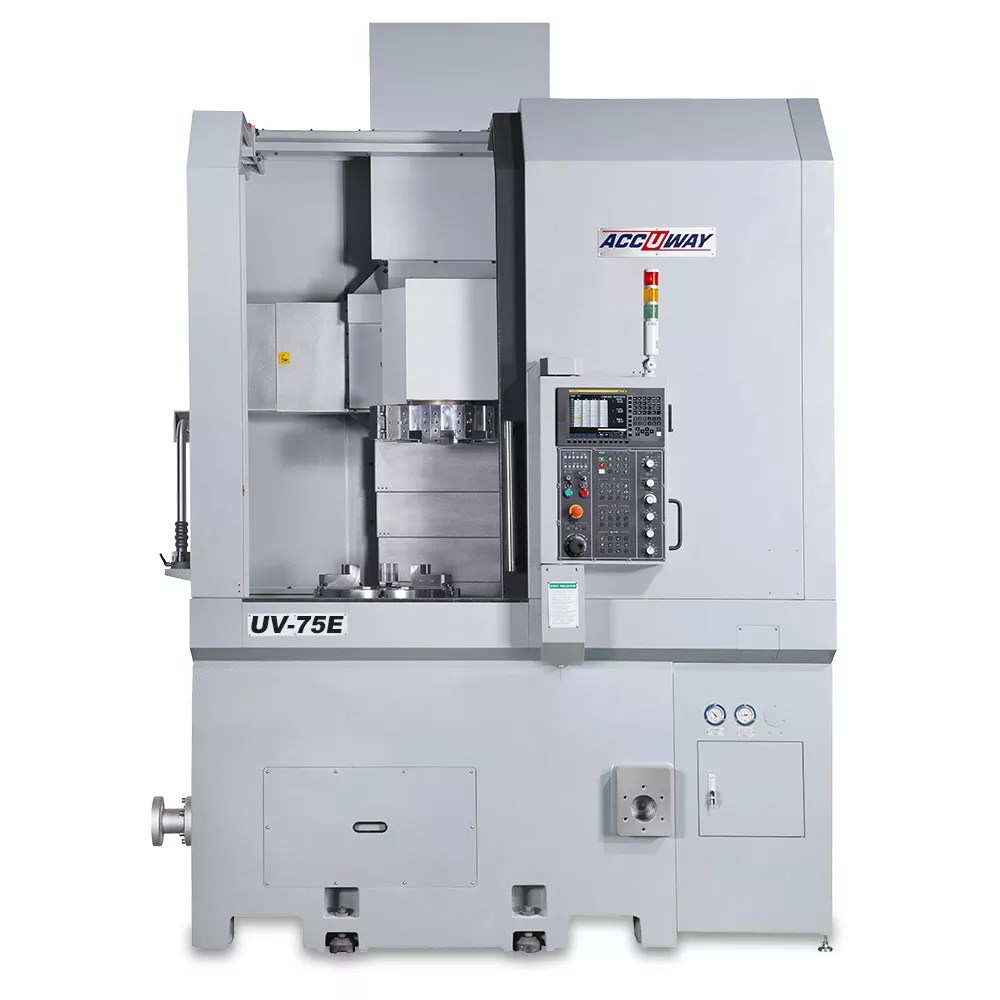

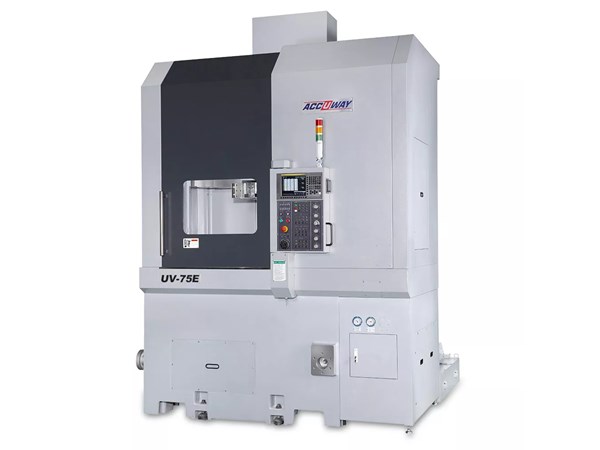

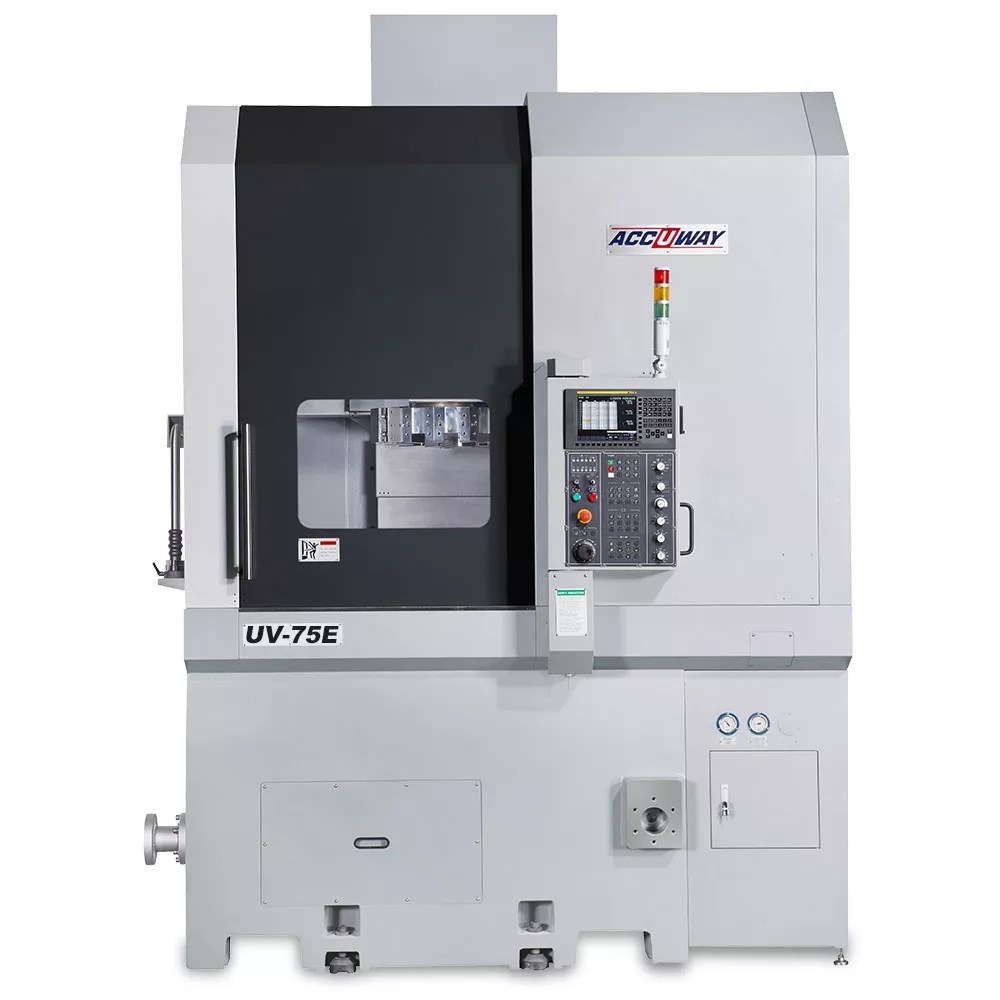

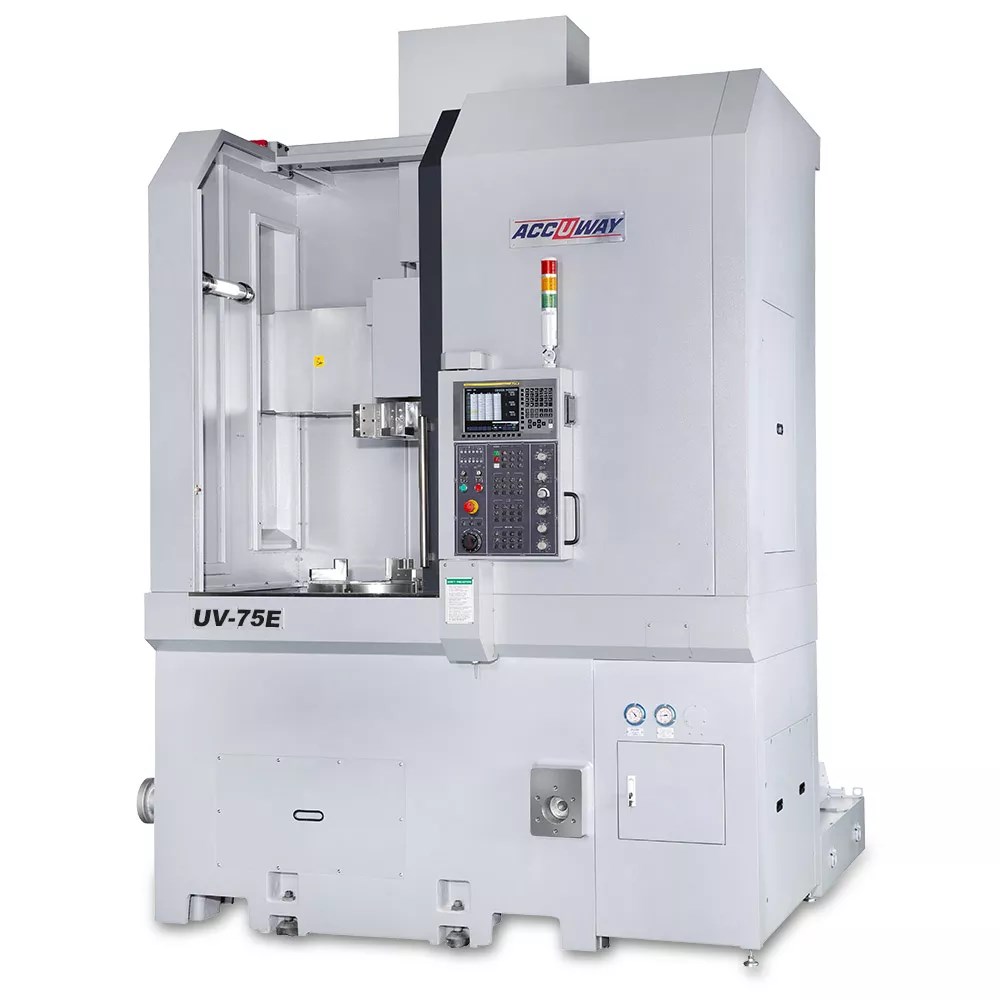

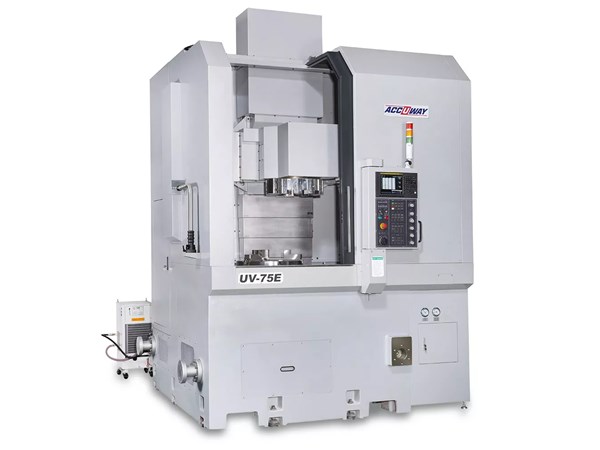

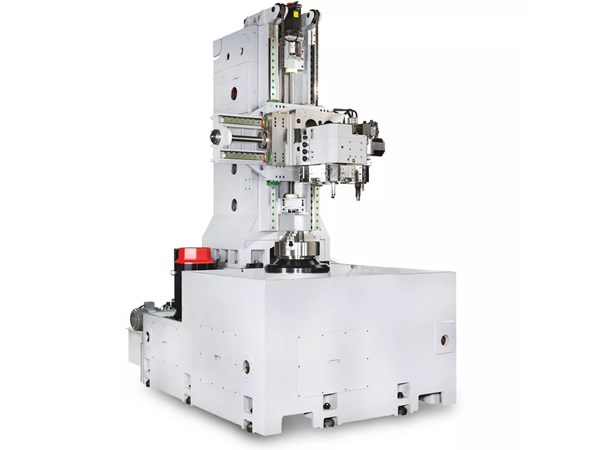

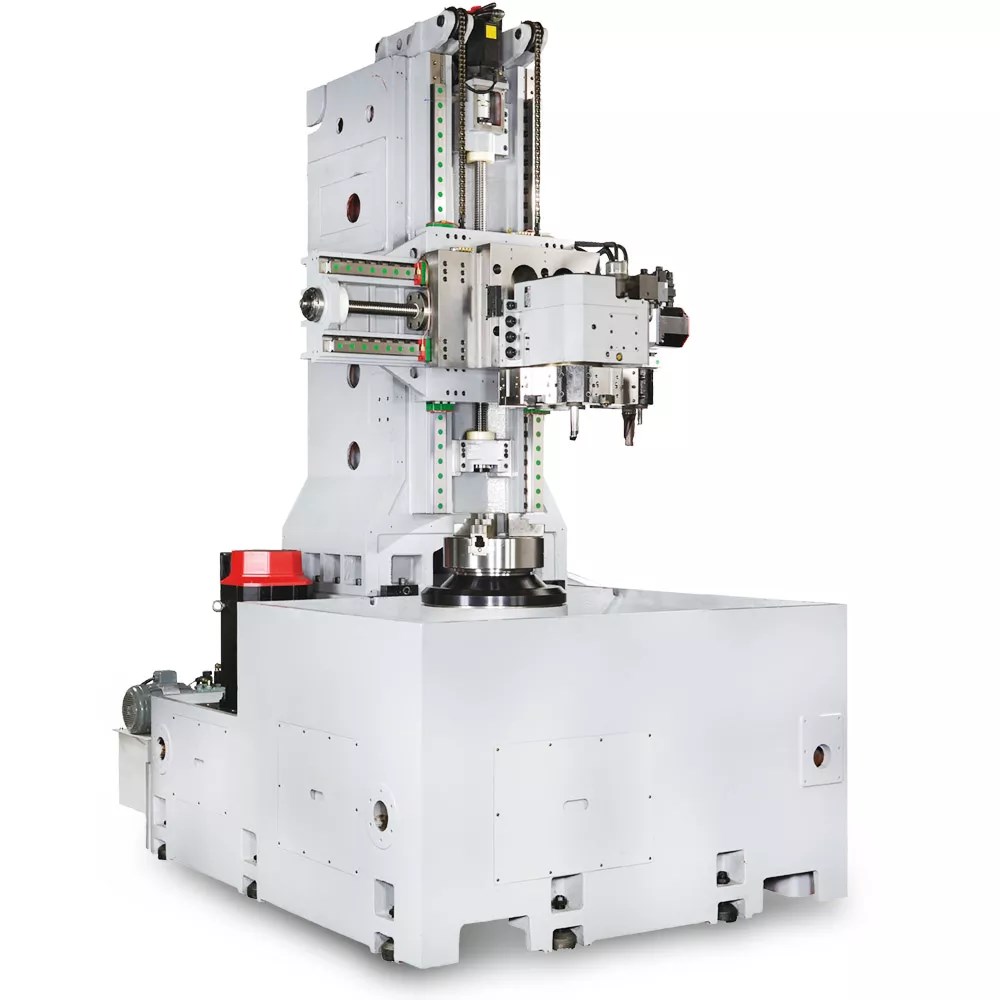

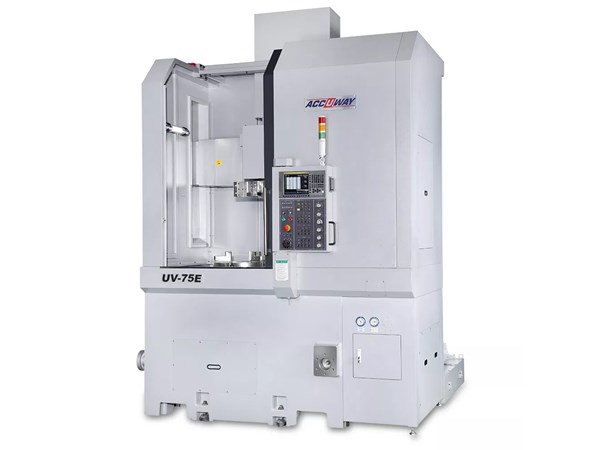

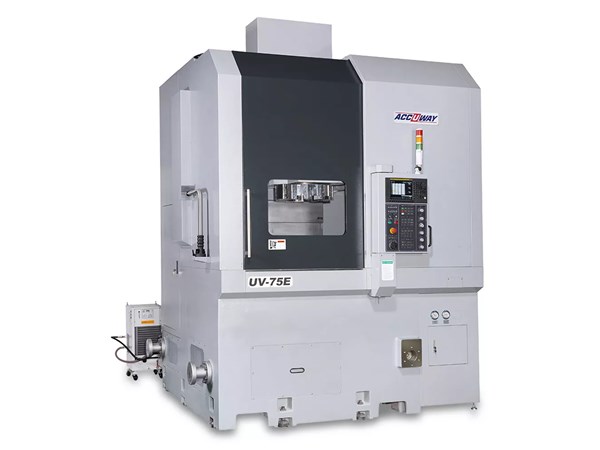

Accuway UV-75E Vertical Lathes Turret Type
Homepage
/
Accuway UV-75E Vertical Lathes Turret Type
Accuway UV-75E Vertical Lathes Turret Type
Chuck Size —
24/32
Number of Tools (station) —
12
Max. turning diameter
—
750 mm
Get a Quote
Description
ITEM/MODEL
UV-75E
Controller
FANUC 0i-T
CAPACITY
Swing over bed
mm
850
Max. turning diameter
mm
750
Max. turning length
mm
700
Guide way type
Linear (Box way)
SPINDLE
Spindle nose taper
ASA
A2-11
Chuck diameter
inch
24(32)
Spindle Speed
rpm
1600(630)
Spindle drive system
Belt
Spindle Motor Power(Cont. /30min)
kW
18.5/22
TRAVELS
X-axis Travel
mm
420
Z-axis Travel
mm
800
FEEDS
X-axis Rapid Traverse Rate
m/min
20
Z-axis Rapid Traverse Rate
m/min
7

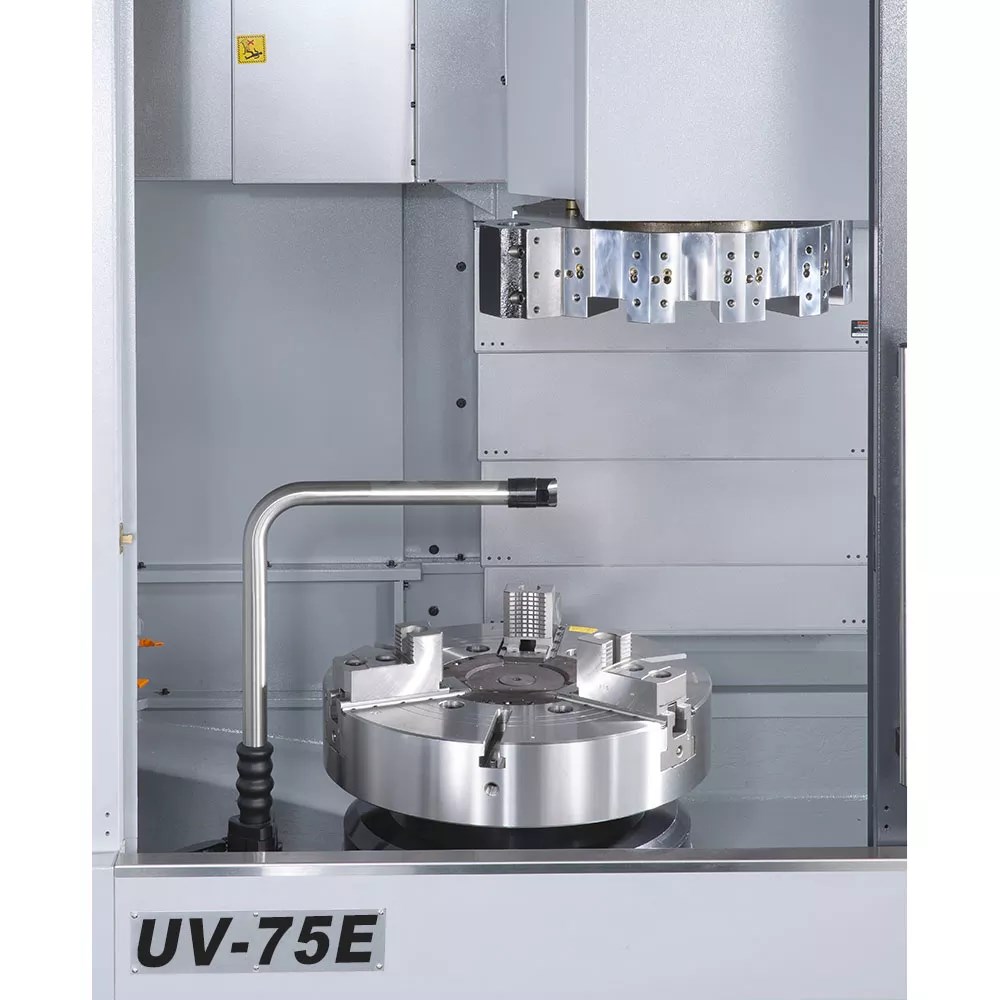

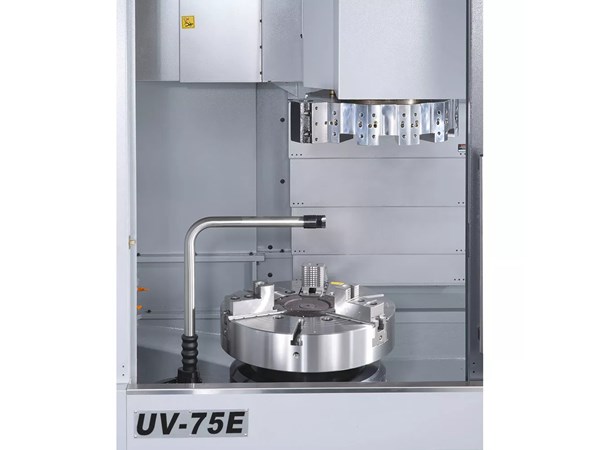

TURRET
Tooling system
BOT
Turret driven type
Hydraulic
Number of tools
station
12
Square tool shank size
mm
32
Round tool shank size
mm
50
DIMENSION
Machine dimension L x W x H
m
2.6 x 3.7 x 4.2
Net weight
kg
15000
