Accuway UZ-2000T2W CNC Lathe Two Turret – Single Spindle

Homepage / Accuway UZ-2000T2W CNC Lathe Two Turret – Single Spindle

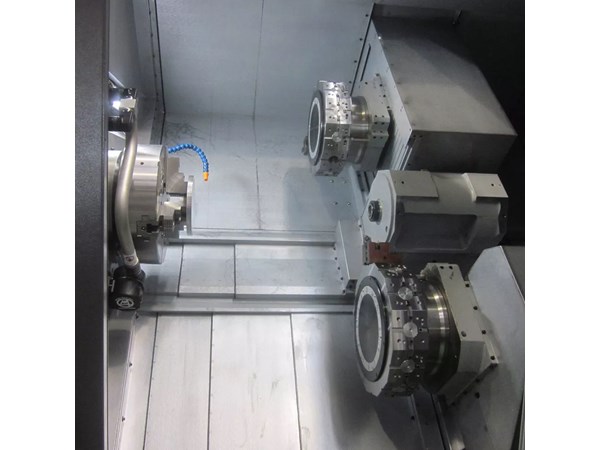

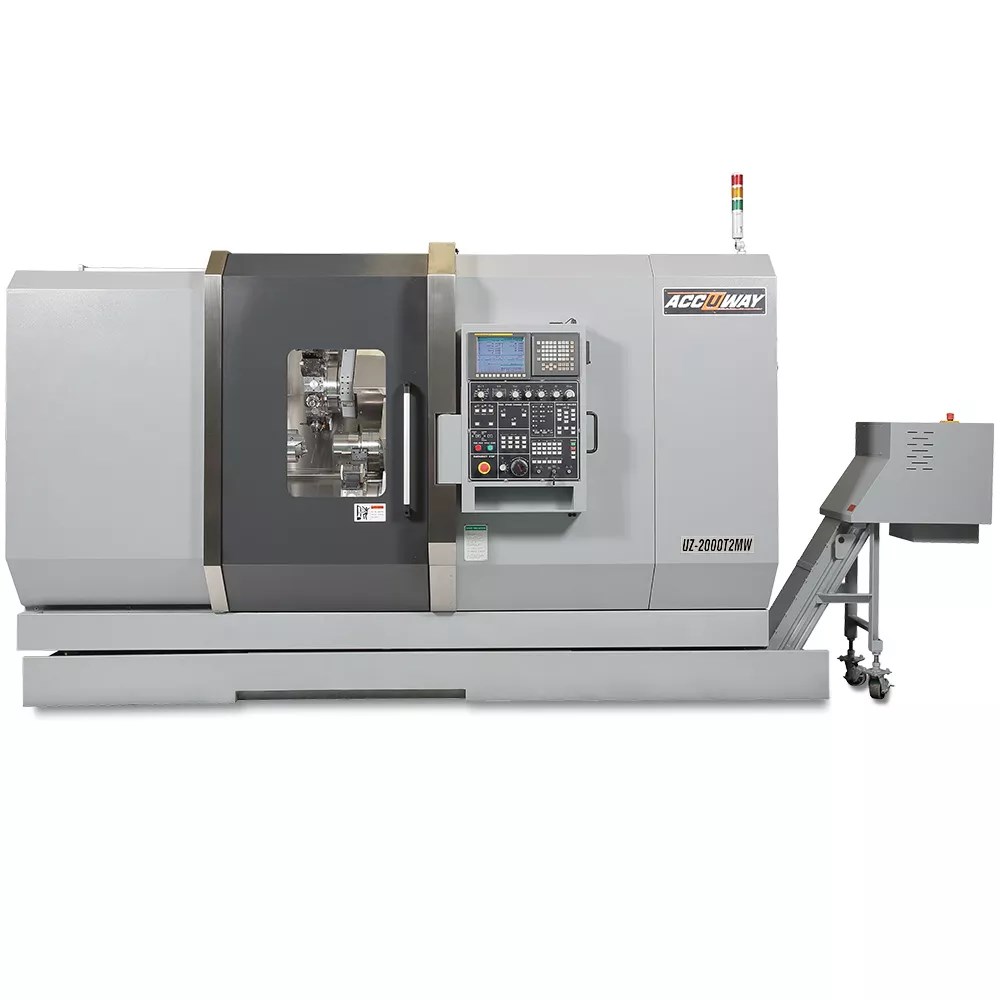

Accuway UZ-2000T2W CNC Lathe Two Turret – Single Spindle

Accuway UZ-2000T2W CNC Lathe Two Turret – Single Spindle

Accuway UZ-2000T2W CNC Lathe Two Turret – Single Spindle

Chuck Size — 6/8/10/15

Number of Tools (station) — 16+16

Distance Between Spindles — 810 mm

ITEM/MODEL		UZ-2000T2MW			UZ-2000T2W
Controller		FANUC 0i-T
CAPACITY
Swing over bed	mm	660			660
Swing over saddle	mm	620			620
Max. Turning Diameter	mm	320			320
Max. turning length	mm	790			790
Guide way type		Linear + Box
SPINDLE
Spindle Nose	ASA	A2-5	A2-8	A2-11	A2-5	A2-8	A2-11
Chuck Diameter	inch	6	10	15	6	10	15
Bar Capacity	mm	52	78	105	52	78	105
Spindle Speed	rpm	5000(Built-in)	3500(Belt)	2500(Belt)	5000(Built-in)	3500(Belt)	2500(Belt)
Spindle Motor Power	kW	11/15 (15/18.5) Cont. /30min
TAILSTOCK
Tailstock body travel	mm	770			770
Quill travel	mm	120			120
Quill diameter	mm	85			85
Quill taper	MT#	5			5
TRAVELS
X1/X2 axis Travel	mm	210			210
Z1/Z2 axis Travel	mm	840			840
Y-axis Travel	mm	-			-
FEED RATES
X1/X2 axis Rapid Traverse Rate	m/min	20			24
Z1/Z2 axis Rapid Traverse Rate	m/min	36			40
Y-axis Rapid Traverse Rate	m/min	-			-
TURRET
Tooling system		BMT-40			BMT-40
Turret driven type		Servo mechanical
Number of tools	station	16+16			16+16
Square tool shank size	mm	20			20
Round tool shank size	mm	32			32
Max. Rotary Tool Speed	rpm	6000			-
Rotary Tool power	kW	3.7/5.5			-
DIMENSION
Machine dimension LxWxH	m	5.1 x 2.4 x 2.4			5.1 x 2.4 x 2.4
Net weight	kg	10500			10500
