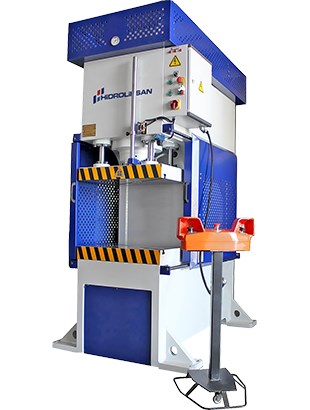

Hidroliksan CFS production press
Standard Equipments
- Chrome Plated Cylinder
- Steel Welded Frame
- Safeyt Cover and Light Barrier
- Two Hand Button Control
- Adjustable Pressure by Regulator
- Adjustable Stroke by Sensor
- Oil Pressure Gauge
- Air Cooling
- T-Slotted Table
- User Manual
- 1 Year Warranty
| Model |
CFS 30 |
CFS 60 |
CFS 100 |
CFS 150 |
CFS 200 |
CFS 250 |
| CAPACITY (TON) |
30 |
60 |
100 |
150 |
200 |
250 |
| TABLE SIZE (mm) |
500×500 |
600×500 |
800×500 |
800×600 |
900×600 |
1000×600 |
| STROKE (mm) |
400 |
400 |
400 |
400 |
400 |
400 |
| DAYLIGHT (mm) |
500 |
500 |
500 |
500 |
500 |
500 |
| PUMP (CC) |
9 |
12+6 |
20+9 |
33+9 |
32+16 |
44+16 |
| MOTOR (KW) |
4 |
3 |
4 |
55 |
11 |
11 |
| ADVANCE SPEED (mm/s) |
10 |
12 |
12 |
12 |
9 |
9 |
| RETURN SPEED (mm/s) |
17 |
21 |
18 |
21 |
18 |
18 |
| WORKING SPEED (mm/s) |
10 |
4 |
4 |
3 |
3 |
3 |
| DIMENSIONS (L×W×H mm) |
1500×1400×2300 |
1500×1400×2300 |
1700×1500×2700 |
1700×1600×2900 |
1900×1700×2900 |
2000×1600×2900 |
| WEIGHT (KG) |
2500 |
3500 |
5000 |
10000 |
13000 |
14000 |
