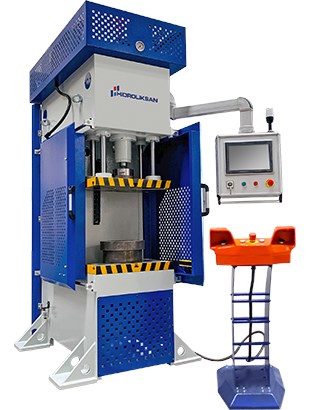

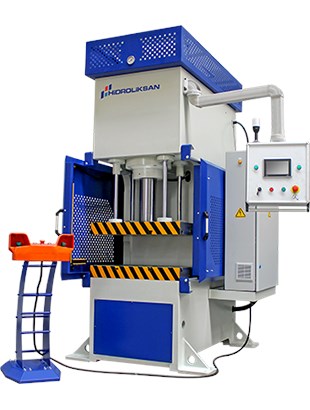

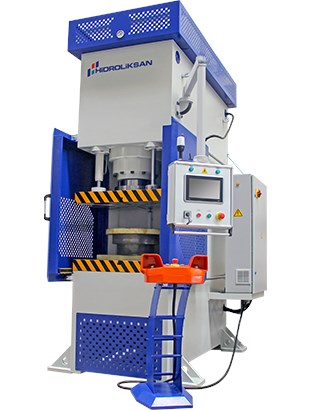

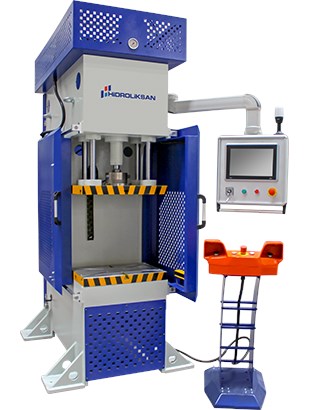

Hidroliksan CFSS production press
Standard Equipments
- Chrome Plated Cylinder
- Steel Welded Frame
- HMI Touch Screen Control Panel
- Safeyt Cover and Light Barrier
- Two Hand Button Control
- Adjustable Variable Pressure on HMI Touch Screen Control Panel
- Adjustable Stroke on HMI Touch Screen Control Panel
- Adjustable Variable Speed on HMI Touch Screen Control Panel
- Oil Pressure Gauge
- Air Cooling
- T-Slotted Table
- User Manual
- 1 Year Warranty
Optional Equipments
- Ejector Cylinder
- Variable Speeds
| Model |
CFSS 30 |
CFSS 60 |
CFSS 100 |
CFSS 150 |
CFSS 200 |
CFSS 250 |
| CAPACITY (TON) |
30 |
60 |
100 |
150 |
200 |
250 |
| TABLE SIZE (mm) |
500×500 |
600×500 |
800×500 |
1000×600 |
1000×600 |
1100×600 |
| STROKE (mm) |
400 |
400 |
400 |
400 |
400 |
400 |
| DAYLIGHT (mm) |
500 |
500 |
500 |
600 |
600 |
600 |
| THROAT DEEP (mm) |
280 |
310 |
310 |
360 |
370 |
370 |
| PUMP (CC) |
160C |
190C |
190C |
450C |
450C |
450C |
| MOTOR (KW) |
7.5KW |
11KW |
11KW |
18,5KW |
18.5KW |
18.5KW |
| ADVANCE SPEED (mm/s) |
150 |
100 |
110 |
130 |
130 |
130 |
| RETURN SPEED (mm/s) |
180 |
150 |
160 |
180 |
180 |
180 |
| WORKING SPEED (mm/s) |
10 |
10 |
10 |
5-15 |
5-12 |
5-10 |
| DIMENSIONS (L×W×H mm) |
1800×1400×2600 |
1900×1400×2600 |
1900×1700×2930 |
2400×1900×3500 |
2400×1900×3700 |
2400×2000×3900 |
| WEIGHT (KG) |
3000 |
3500 |
5500 |
12000 |
14500 |
15500 |
