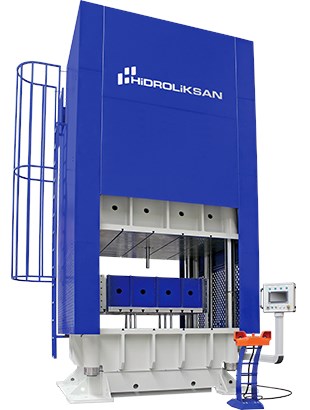

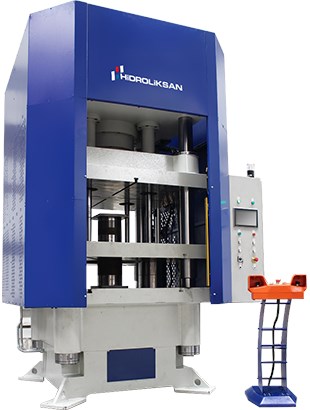

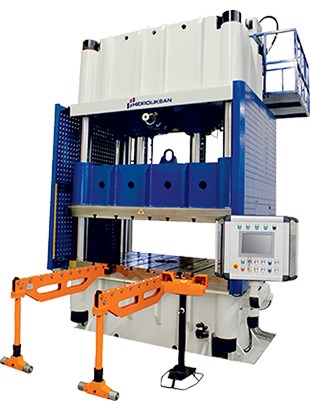

Hidroliksan HCFP production press
Standart Ekipmanlar
- Chrome Plated Cylinder
- Steel Welded Frame
- HMI Touch Screen Control Panel
- Safeyt Cover and Light Barrier
- Two Hand Button Control
- Adjustable Variable Pressure on HMI Touch Screen Control Panel
- Adjustable Stroke on HMI Touch Screen Control Panel
- Oil Pressure Gauge
- Air Cooling
- T-Slotted Table
- User Manual
- 1 Year Warranty
Oprsiyonel Ekipmanlar
- Ejector Cylinder
- Variable Speeds
- Cushion
- Tool Loading Device
| Model |
HCFP 100 |
HCFP 200 |
HCFP 300 |
HCFP 400 |
HCFP 500 |
HCFP 500 |
HCFP 1000 |
| CAPACITY (TON) |
100 |
200 |
300 |
400 |
500 |
600 |
1000 |
| TABLE SIZE (mm) |
1000×800 |
1000×800 |
1200×1000 |
1500×1200 |
1500×1200 |
1700×1500 |
Ask for Quote |
| STROKE (mm) |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
|
| DAYLIGHT (mm) |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
|
| PUMP (CC) |
28 |
45 |
71 |
100 |
100 |
140 |
|
| MOTOR (KW) |
11 |
185 |
30 |
37 |
37 |
55 |
|
| ADVANCE SPEED (mm/s) |
110 |
140 |
150 |
150 |
150 |
150 |
|
| RETURN SPEED (mm/s) |
180 |
200 |
220 |
200 |
200 |
250 |
|
| WORKING SPEED (mm/s) |
3-16 |
3-12 |
3-15 |
3-15 |
3-12 |
5-15 |
|
| POT (OPTIONAL/OPSİYONEL) |
|
|
|
|
|
|
|
| DIMENSIONS (L×W×H mm) |
2600×3500×4600 |
2700×3300×5000 |
2800×3500×5400 |
2800×3600×6200 |
3100×3700×6500 |
3300×4200×6700 |
|
| WEIGHT (KG) |
8000 |
10000 |
13500 |
21000 |
26000 |
32000 |
|
