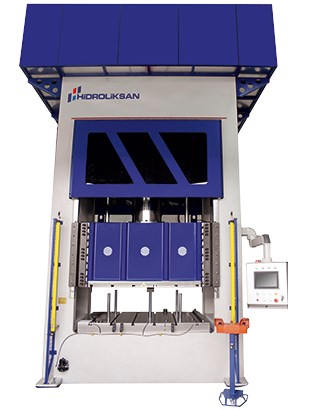

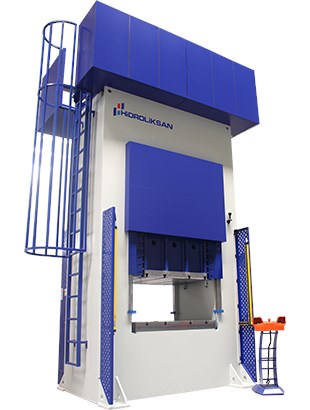

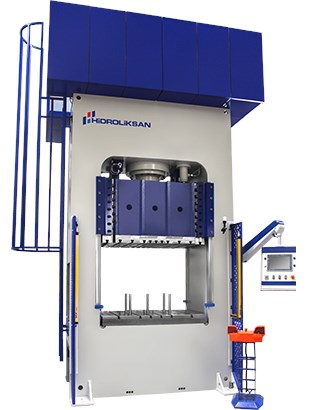

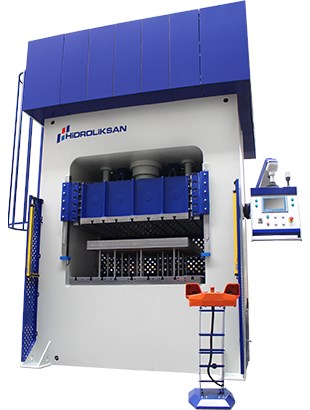

Hidroliksan HDD production press
Standard Equipments
- Chrome Plated Cylinder
- Steel Welded Frame
- HMI Touch Screen Control Panel
- Safeyt Cover and Light Barrier
- Two Hand Button Control
- Adjustable Variable Pressure on HMI Touch Screen Control Panel
- Adjustable Stroke on HMI Touch Screen Control Panel
- Oil Pressure Gauge
- Lubrication
- Air Cooling
- T-Slotted Table
- User Manual
- 1 Year Warranty
Optional Equipments
- Ejector Cylinder
- Variable Speeds
- Tool Loading Device
| Model |
HDD 100 |
HDD 200 |
HDD 300 |
HDD 400 |
HDD 500 |
HDD 600 |
HDD 800 |
HDD 1000 |
HDD 1500 |
HDD 2000 |
HDD 3000 |
| CAPACITY (TON) |
100 |
200 |
300 |
400 |
500 |
600 |
800 |
1000 |
1500 |
2000 |
3000 |
| TABLE SIZE (mm) |
1000×800 |
1000×800 |
1200×1000 |
1500×1200 |
1500×1200 |
1700×1500 |
Ask for Quote |
Ask for Quote |
Ask for Quote |
Ask for Quata |
Ask for Quote |
| STROKE (mm) |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
|
|
|
|
|
| DAYLIGHT (mm) |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
|
|
|
|
|
| PUMP (CC) |
28 |
45 |
71 |
100 |
100 |
140 |
|
|
|
|
|
| MOTOR (KW) |
11 |
185 |
30 |
37 |
37 |
55 |
|
|
|
|
|
| ADVANCE SPEED (mm/s) |
110 |
140 |
150 |
150 |
150 |
150 |
|
|
|
|
|
| RETURN SPEED (mm/s) |
180 |
200 |
220 |
200 |
200 |
250 |
|
|
|
|
|
| WORKING SPEED (mm/s) |
3-16 |
3-12 |
3-15 |
3-15 |
3-12 |
5-15 |
|
|
|
|
|
| CUSHION |
|
|
|
|
|
|
|
|
|
|
|
| CAPACITY (TON) |
40 |
300 |
130 |
150 |
200 |
250 |
|
|
|
|
|
| STROKE (mm) |
300 |
300 |
300 |
300 |
300 |
300 |
|
|
|
|
|
| DIMENSIONS (L×W×H mm) |
2600×3300 x4600 |
2700×3300 x5000 |
2800×3500 x5400 |
2800×3600 x6200 |
3100×3700 x6500 |
3300×4200 x6700 |
|
|
|
|
|
| WEIGHT (KG) |
9000 |
11000 |
16000 |
23000 |
28000 |
40XXX |
|
|
|
|
|
