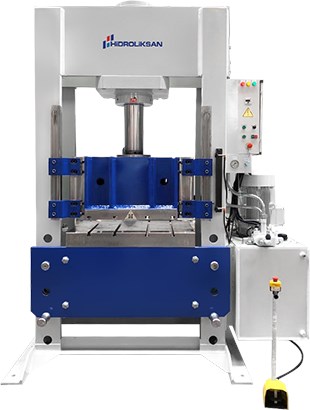

Hidroliksan HDT production press
Standard Equipments
- Chrome Plated Cylinder
- Steel Welded Frame
- Pressure Adjustment
- Oil Pressure Gauge
- T-Slotted Table
- User Manual
- 1 Year Warranty
Optional Equipments
- Ejector Cylinder
- HMI Touch Screen Control Panel
| Model |
HDT 100 |
HDT 150 |
HDT 200 |
HDT 250 |
| CAPACITY (TON) |
100 |
150 |
200 |
250 |
| TABLE SIZE (mm) |
800x600 |
1000x600 |
1000x600 |
1500x600 |
| STROKE (mm) |
400 |
400 |
400 |
400 |
| DAYLIGHT (mm) |
600 |
600 |
600 |
600 |
| CYLINDER DIAMETER (mm) |
220 |
270 |
320 |
360 |
| PUMP (CC) |
15 |
22 |
34 |
45 |
| MOTOR (KW) |
55 |
75 |
15 |
185 |
| ADVANCE SPEED (mm/s) |
6 |
6 |
7 |
7 |
| RETURN SPEED (mm/s) |
12 |
12 |
14 |
14 |
| WORKING SPEED (mm/s) |
6 |
6 |
7 |
7 |
| DIMENSIONS (LxWxH mm) |
1500x2400x2700 |
1500x2600x2700 |
1500x2600x2800 |
1700x2700x2800 |
| WEIGHT (KG) |
3000 |
4500 |
6500 |
8000 |
