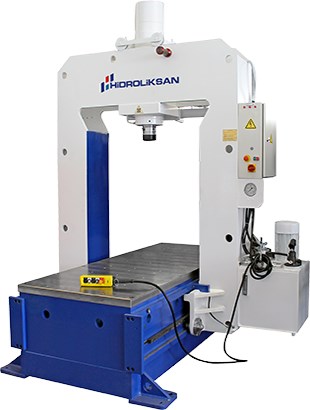

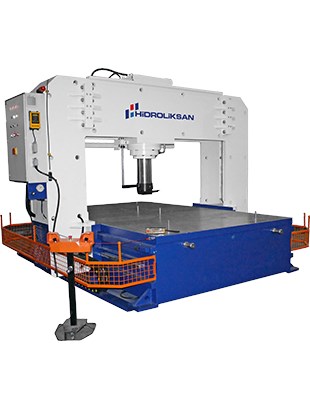

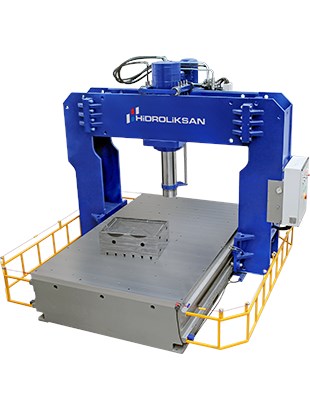

Hidroliksan HSPS production press
Standard Equipments
- Chrome Plated Cylinder
- Steel Welded Frame
- Controled by Pendant
- X,Y,Z Axis Movement by Motorised
- Stroke Control in any Position
- Pressure Adjustment
- Oil Pressure Gauge
- T-Slotted Table
- Working Plate
- User Manual
- 1 Year Warranty
| Model |
HSPS 100 |
HSPS 200 |
HSPS 300 |
HSPS 400 |
| CAPACITY (TON) |
100 |
200 |
300 |
400 |
| TABLE SIZE (mm) |
1000×2000 |
1000×2500 |
1500×3000 |
1500×3500 |
| STROKE (mm) |
400 |
400 |
500 |
600 |
| DAYLIGHT (mm) |
400 |
400 |
500 |
600 |
| PUMP (CC) |
15 |
17 |
40 |
66 |
| MOTOR (kW) |
55 |
55 |
11 |
185 |
| ADVANCE SPEED (mm/s) |
6 |
7 |
6 |
7 |
| RETURN SPEED (mm/s) |
12 |
14 |
12 |
14 |
