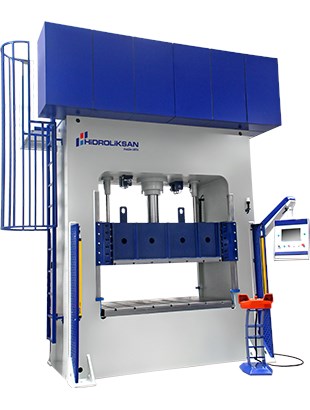

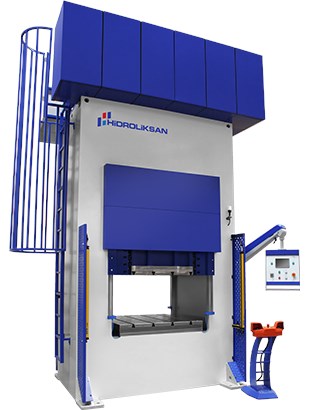

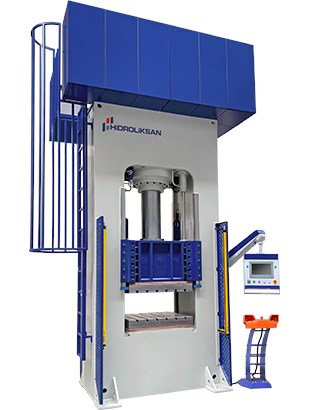

Hidroliksan SMC-HHRP production press
Standard Equipments
- Chrome Plated Cylinder
- Steel Welded Frame
- HMI Touch Screen Control Panel
- Safeyt Cover and Light Barrier
- Two Hand Button Control
- Adjustable Variable Pressure on HMI Touch Screen Control Panel
- Adjustable Stroke on HMI Touch Screen Control Panel
- Adjustable Variable Speed on HMI Touch Screen Control Panel
- Oil Pressure Gauge
- Air Cooling
- T-Slotted Table
- User Manual
- 1 Year Warranty
| Model |
HHRP 100 |
HHRP 200 |
HHRP 300 |
HHRP 400 |
HHRP 500 |
HHRP 600 |
HHRP 800 |
HHRP 1000 |
HHRP 1500 |
HHRP 2000 |
HHRP 3000 |
| CAPACITY (TON) |
100 |
200 |
300 |
400 |
500 |
600 |
800 |
1000 |
2000 |
3000 |
3000 |
| TABLE SIZE (mm) |
1000x800 |
1000x800 |
1200x1000 |
1500x1200 |
1500x1200 |
1700x1300 |
Ask for Quote |
Ask for Quote |
Ask for Quote |
Ask for Quote |
Ask for Quote |
| STROKE (mm) |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
|
|
|
|
|
| DAYLIGHT (mm) |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
|
|
|
|
|
| PUMP (CC) |
28 |
45 |
71 |
100 |
100 |
140 |
|
|
|
|
|
| MOTOR (KW) |
11 |
185 |
30 |
37 |
37 |
55 |
|
|
|
|
|
| ADVANCE SPEED (mm/s) |
110 |
140 |
150 |
150 |
150 |
150 |
|
|
|
|
|
| RETURN SPEED (mm/s) |
180 |
200 |
220 |
200 |
200 |
250 |
|
|
|
|
|
| WORKING SPEED (mm/s) |
3-16 |
3-12 |
3-15 |
3-15 |
3-12 |
5-15 |
|
|
|
|
|
| DIMENSIONS (LxWxH mm) |
2800x3300 *4800 |
2700x3300 *5000 |
2800x3500 *5400 |
2800x3800 *6200 |
3100x3700 *6500 |
3300x4200 *6700 |
|
|
|
|
|
| WEIGHT (KG) |
7500 |
9000 |
12500 |
19500 |
24000 |
30000 |
|
|
|
|
|
