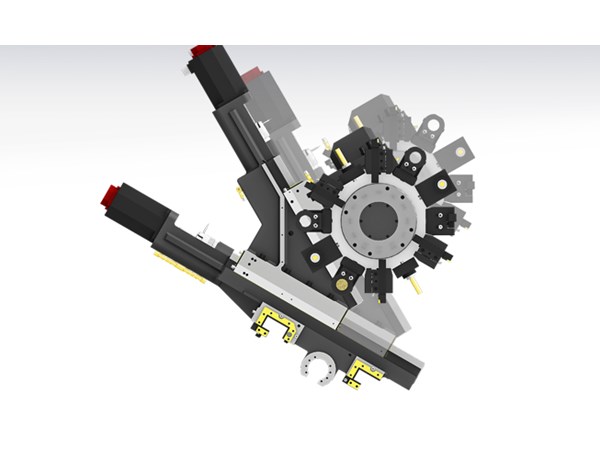

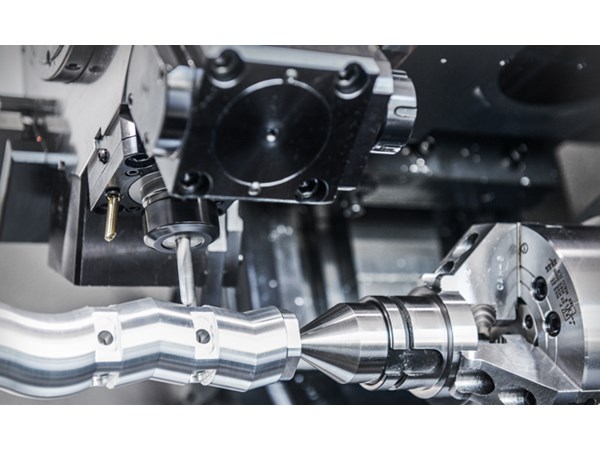

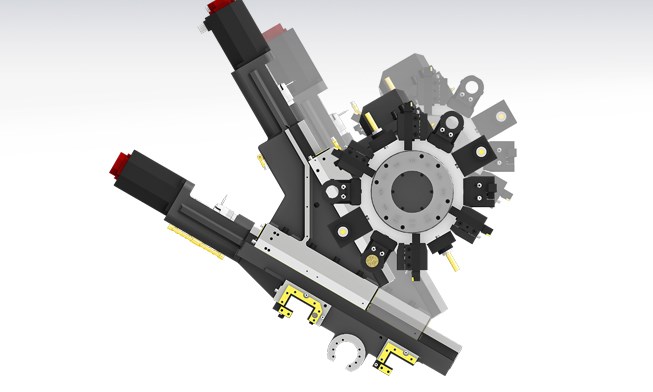

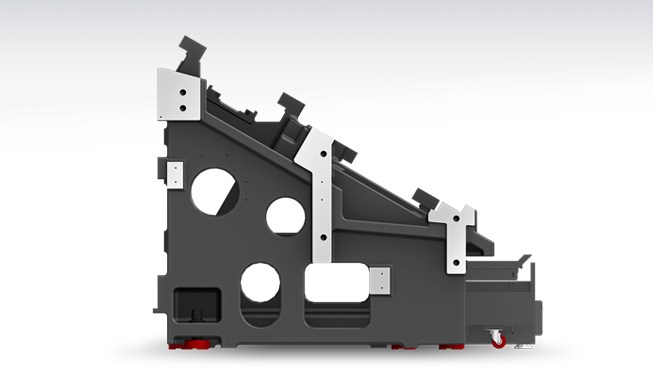

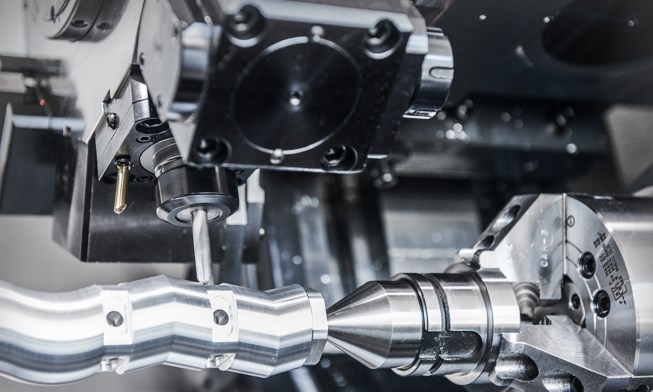

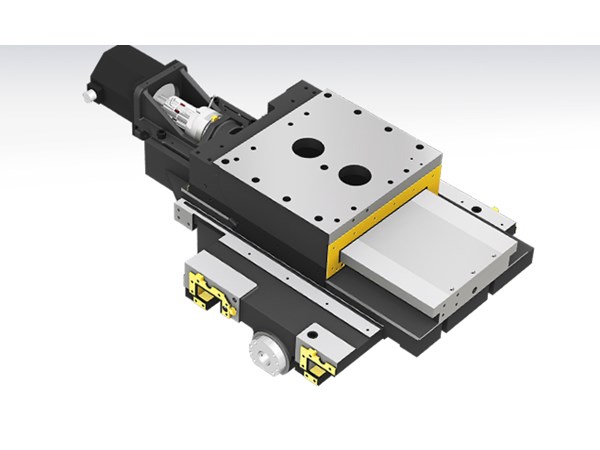

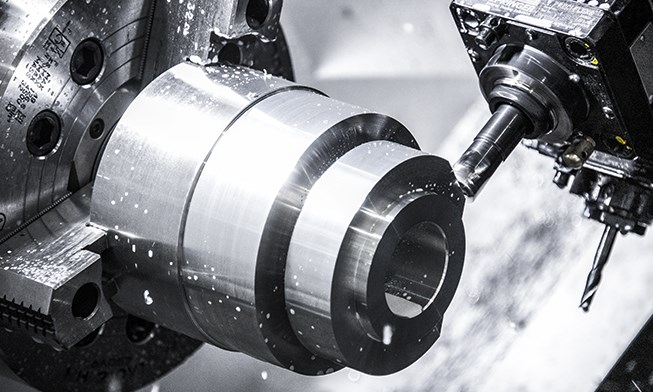

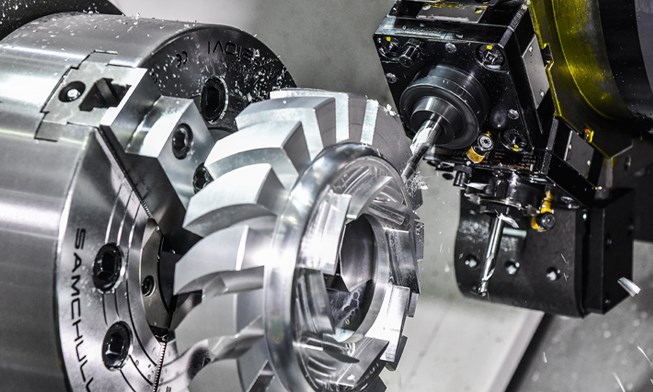

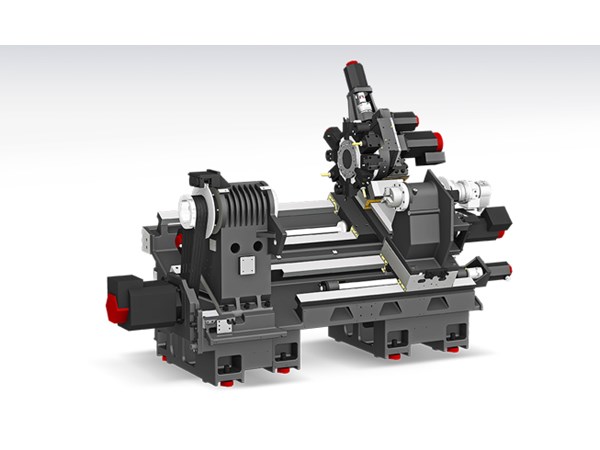

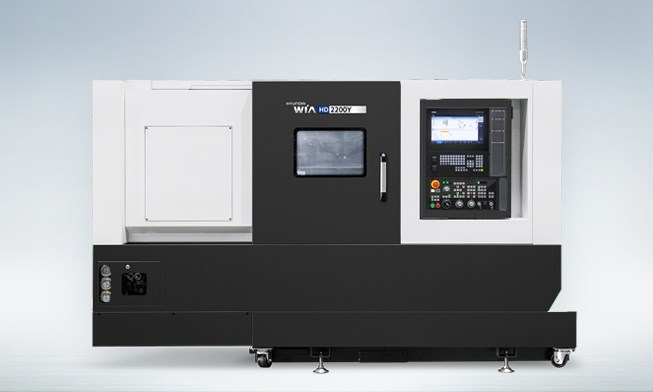

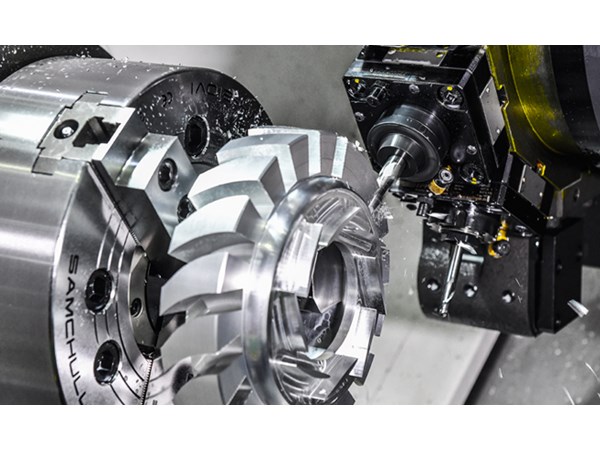

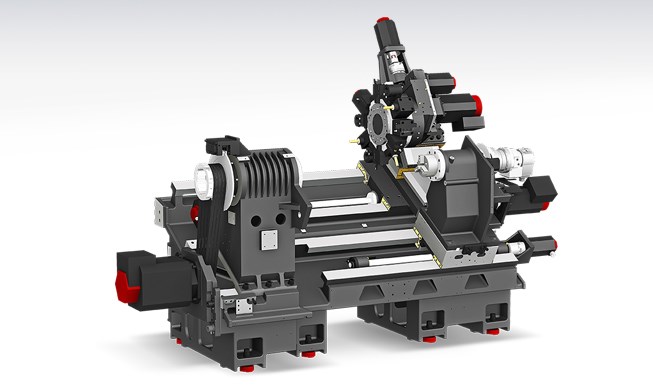

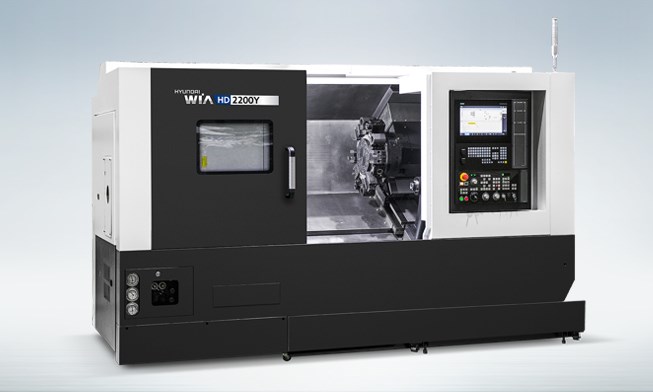

Hyundai Wia HD2200Y Turning Center

Homepage / Hyundai Wia HD2200Y Turning Center

Hyundai Wia HD2200Y Turning Center

Hyundai Wia HD2200Y Turning Center

Hyundai Wia HD2200Y Turning Center

Hyundai Wia HD2200Y Turning Center

Hyundai Wia HD2200Y Turning Center

Hyundai Wia HD2200Y Turning Center

Hyundai Wia HD2200Y Turning Center

Hyundai Wia HD2200Y Turning Center

Hyundai Wia HD2200Y Turning Center

Hyundai Wia HD2200Y Turning Center

Max Turning Diameter — 300 mm

Max Turning Length — 610 mm

Chuck Size — 8″

Spindle rpm — 4,000 rpm

Bar Capacity — Ø65 mm

Max. Swing — Ø820 mm

Description	Unit	HD2200Y	HD2600Y	HD3100YA	HD3100Y
Max Turning Dia	mm	300	300	420	420
Max Turning Length	mm	610	610	760	760
Chuck Size	inch	8″	10″	10″	12″
Driving Method	-	Belt	Belt	Belt	Belt
Spindle RPM	r/min	4,000	3,500	3,500	2,800
Spindle Output	kW	18.5/15	18.5/15	26/18.5	26/18.5
Spindle Torque	N.m	206.2/125.4	400.7/243.7	734/522	1051/672
Travel(X/Y/Z)	mm	215/110/680	215/110/680	265/120/830	265/120/830
Rapid Travel(X/Y/Z)	m/min	24/10/30	24/10/30	24/10/30	24/10/30
Slide Type	-	BOX	BOX	BOX	BOX
No. of Tools	EA	12	12	12	12
Tool Size	mm	25/40	25/40	25/50	25/50
Milling Tool Speed	r/min	6,000	6,000	5,000	5,000
