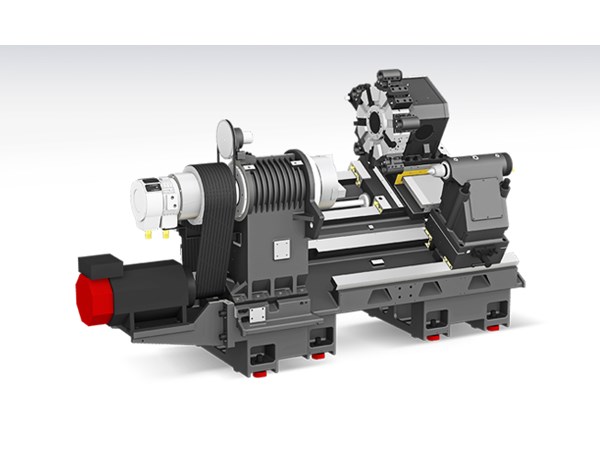

Hyundai Wia HD2600 Turning Center

Homepage / Hyundai Wia HD2600 Turning Center

Hyundai Wia HD2600 Turning Center

Hyundai Wia HD2600 Turning Center

Hyundai Wia HD2600 Turning Center

Hyundai Wia HD2600 Turning Center

Hyundai Wia HD2600 Turning Center

Hyundai Wia HD2600 Turning Center

Hyundai Wia HD2600 Turning Center

Hyundai Wia HD2600 Turning Center

Hyundai Wia HD2600 Turning Center

Hyundai Wia HD2600 Turning Center

Hyundai Wia HD2600 Turning Center

Hyundai Wia HD2600 Turning Center

Hyundai Wia HD2600 Turning Center

Hyundai Wia HD2600 Turning Center

Hyundai Wia HD2600 Turning Center

Hyundai Wia HD2600 Turning Center

Max Turning Diameter — 460 mm

Max Turning Length — 659 mm

Chuck Size — 10″

Spindle rpm — 3,500 rpm

Bar Capacity — Ø81 mm

Max. Swing — Ø630 mm

Description	Unit	HD2600	HD2600M	HD2600L	HD2600LM
Max Turning Dia	mm	460	380	460	380
Max Turning Length	mm	659	613	1,079	1,033
Chuck Size	inch	10″	10″	10″	10″
Driving Method	-	Belt	Belt	Belt	Belt
Spindle RPM	r/min	3,500	3,500	3,500	3,500
Spindle Output	kW	26/18.5	26/18.5	26/18.5	26/18.5
Spindle Torque	N.m	734/522	734/522	734/522	734/522
Travel(X/Z)	mm	265/680	265/680	265/1,100	265/1,100
Rapid Travel(X/Z)	m/min	24/30	24/30	24/30	24/30
Slide Type	-	BOX	BOX	BOX	BOX
No. of Tools	EA	10	12	10	12
Tool Size	mm	25/50	25/40	25/50	25/40
Milling Tool Speed	r/min	-	6,000	-	6,000
