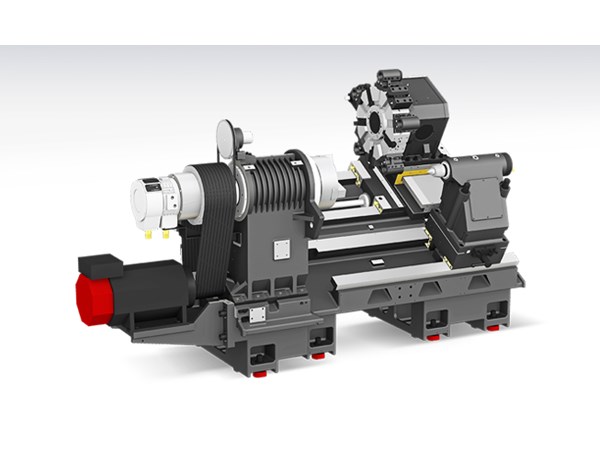

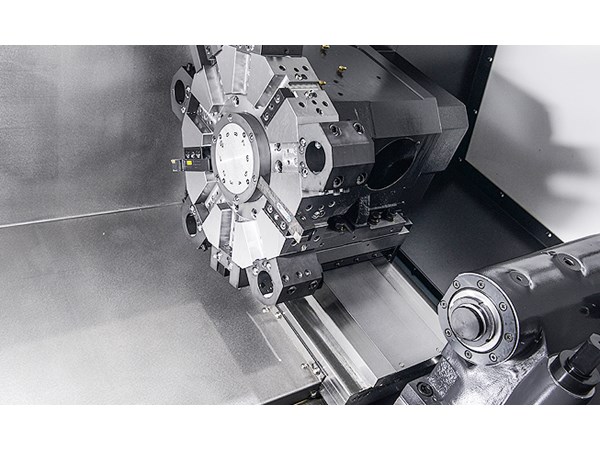

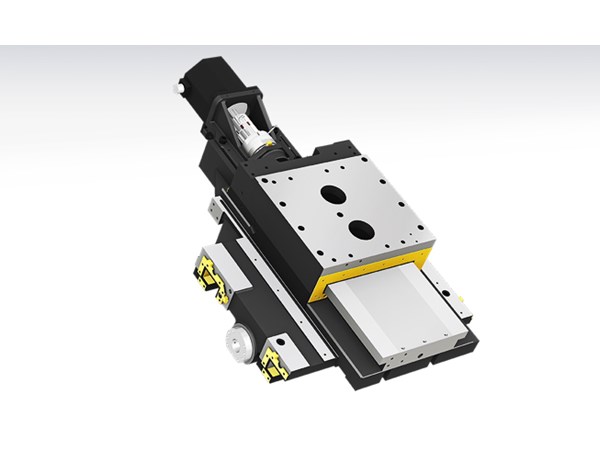

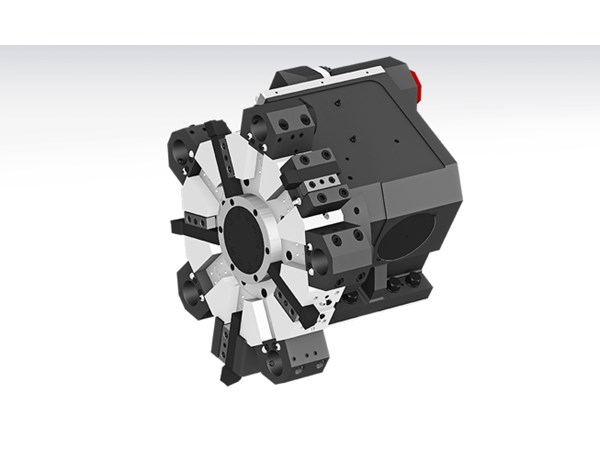

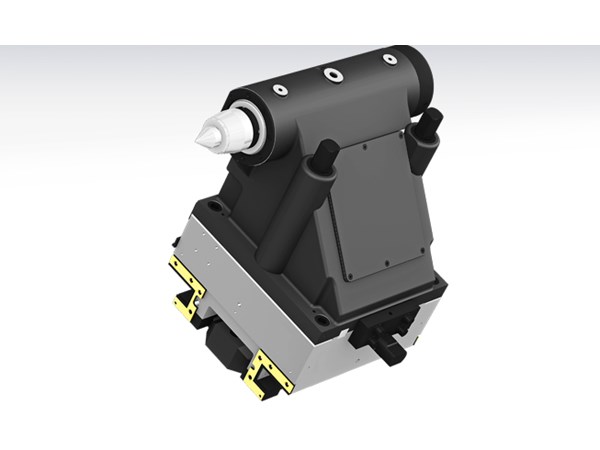

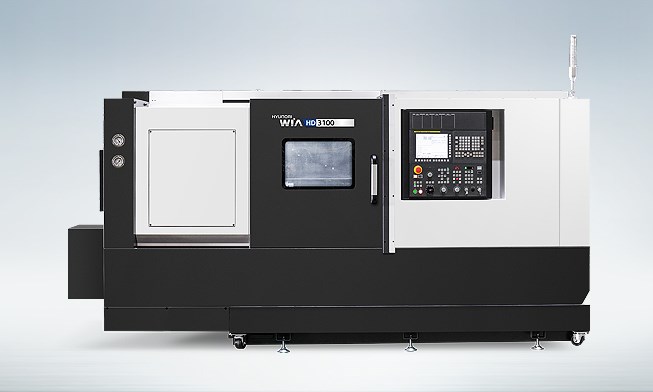

Hyundai Wia HD3100LM Turning Center

Homepage / Hyundai Wia HD3100LM Turning Center

Hyundai Wia HD3100LM Turning Center

Hyundai Wia HD3100LM Turning Center

Hyundai Wia HD3100LM Turning Center

Hyundai Wia HD3100LM Turning Center

Hyundai Wia HD3100LM Turning Center

Hyundai Wia HD3100LM Turning Center

Hyundai Wia HD3100LM Turning Center

Hyundai Wia HD3100LM Turning Center

Hyundai Wia HD3100LM Turning Center

Hyundai Wia HD3100LM Turning Center

Hyundai Wia HD3100LM Turning Center

Hyundai Wia HD3100LM Turning Center

Hyundai Wia HD3100LM Turning Center

Hyundai Wia HD3100LM Turning Center

Hyundai Wia HD3100LM Turning Center

Hyundai Wia HD3100LM Turning Center

Max Turning Diameter — 420 mm

Max Turning Length — 1260 mm

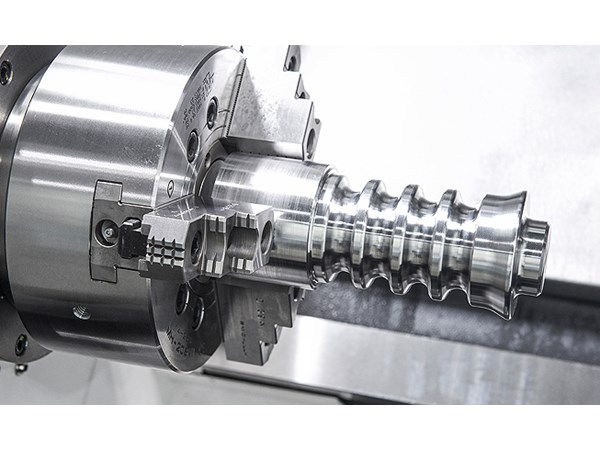

Chuck Size — 12″

Spindle rpm — 2,800 rpm

Bar Capacity — Ø102 mm

Max. Swing — Ø750 mm

Description	Unit	HD3100	HD3100L	HD3100M	HD3100LM
Max Turning Dia	mm	500	500	420	420
Max Turning Length	mm	780	1,300	740	1,260
Chuck Size	inch	12″	12″	12″	12″
Driving Method	-	Belt	Belt	Belt	Belt

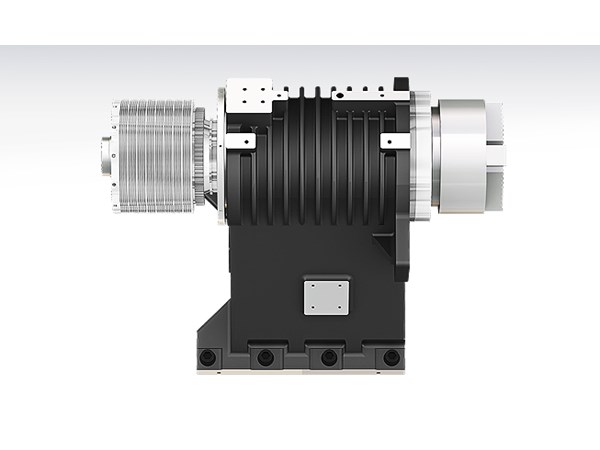

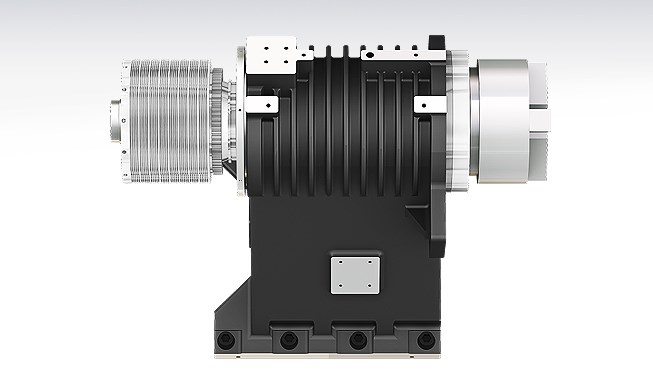

Spindle RPM	r/min	2,800	2,800	2,800	2,800
Spindle Output	kW	26/18.5	26/18.5	26/18.5	26/18.5
Spindle Torque	N.m	1,123/657	1,123/657	1,123/657	1,123/657
Travel(X/Z)	mm	265/830	265/1,350	265/830	265/1,350
Rapid Travel(X/Z)	m/min	24/30	24/30	24/30	24/30

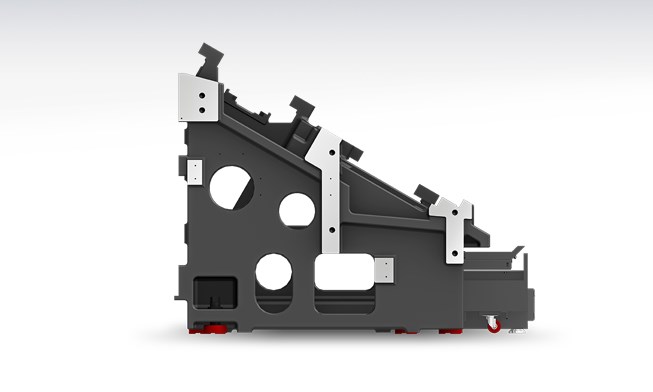

Slide Type	-	BOX	BOX	BOX	BOX

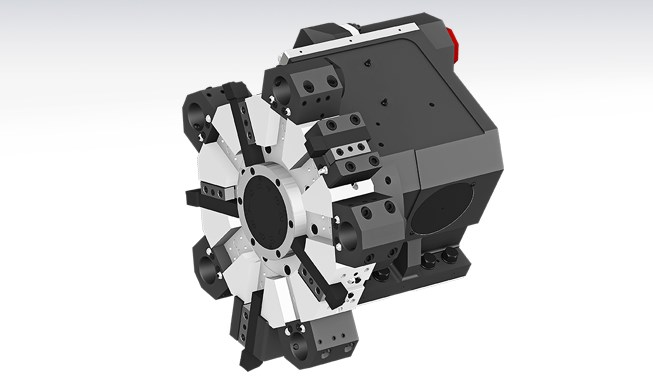

No. of Tools	EA	10	10	12	12

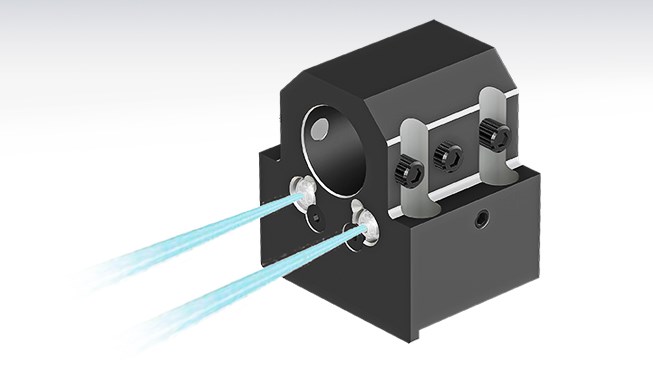

Tool Size	mm	25/50	25/50	25/50	25/50
