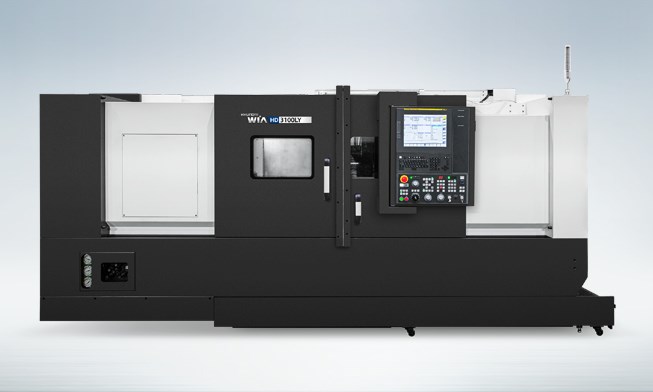

Hyundai Wia HD3100LY Turning Center

Homepage / Hyundai Wia HD3100LY Turning Center

Hyundai Wia HD3100LY Turning Center

Hyundai Wia HD3100LY Turning Center

Hyundai Wia HD3100LY Turning Center

Hyundai Wia HD3100LY Turning Center

Hyundai Wia HD3100LY Turning Center

Max Turning Diameter — 420 mm

Max Turning Length — 1280 mm

Chuck Size — 10″

Spindle rpm — 3,500 rpm

Bar Capacity — Ø102 mm

Max. Swing — Ø800 mm

Description	Unit	HD3100LY	HD3100LYA
Max Turning Dia	mm	420	420
Max Turning Length	mm	1,280	1,280
Chuck Size	inch	10	12
Driving Method	-	Belt	Belt
Spindle RPM	r/min	3,500	2,800
Spindle Output	kW	26/18.5	26/18.5
Spindle Torque	N.m	734/522	1,051/672
Travel(X/Y/Z)	mm	265/120/1,350	265/120/1,350
Rapid Travel(X/Y/Z)	m/min	24/10/30	24/10/30
Slide Type	-	BOX	BOX
No. of Tools	EA	12	12
Tool Size	mm	25/50	25/50
Milling Tool Speed	r/min	5,000	5,000
