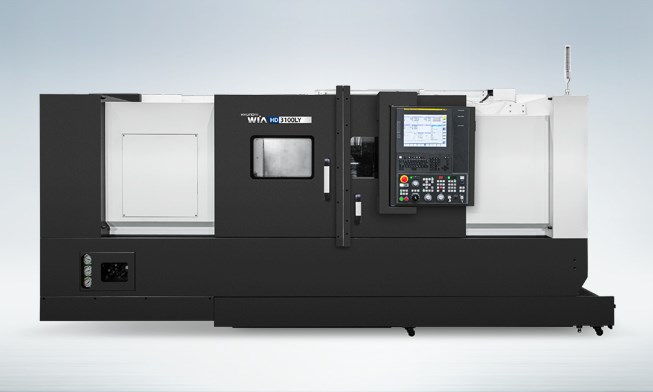

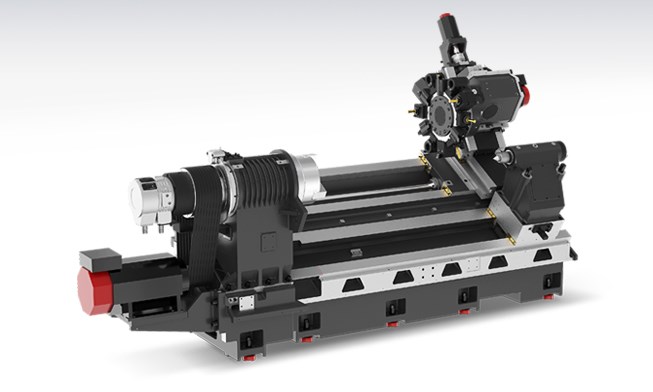

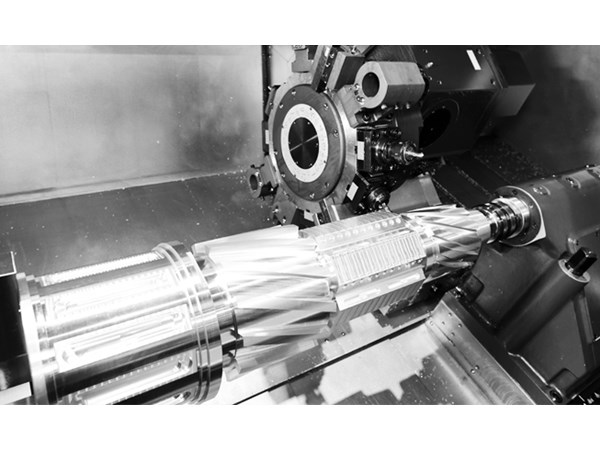

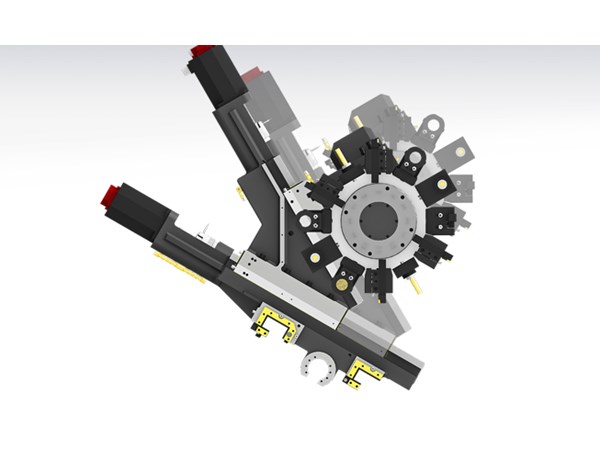

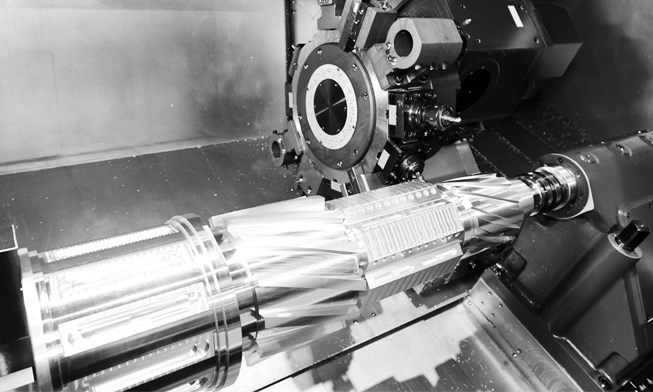

Hyundai Wia HD3100LYA Turning Center

Hyundai Wia HD3100LYA Turning Center

Hyundai Wia HD3100LYA Turning Center

Hyundai Wia HD3100LYA Turning Center

Hyundai Wia HD3100LYA Turning Center

Max Turning Diameter — 420 mm

Max Turning Length — 1280 mm

Chuck Size — 12″

Spindle rpm — 2,800 rpm

Bar Capacity — Ø81 mm

Max. Swing — Ø800 mm

Description	Unit	HD3100LY	HD3100LYA
Max Turning Dia	mm	420	420
Max Turning Length	mm	1,280	1,280
Chuck Size	inch	10	12
Driving Method	-	Belt	Belt
Spindle RPM	r/min	3,500	2,800
Spindle Output	kW	26/18.5	26/18.5
Spindle Torque	N.m	734/522	1,051/672
Travel(X/Y/Z)	mm	265/120/1,350	265/120/1,350
Rapid Travel(X/Y/Z)	m/min	24/10/30	24/10/30
Slide Type	-	BOX	BOX
No. of Tools	EA	12	12
Tool Size	mm	25/50	25/50
Milling Tool Speed	r/min	5,000	5,000
