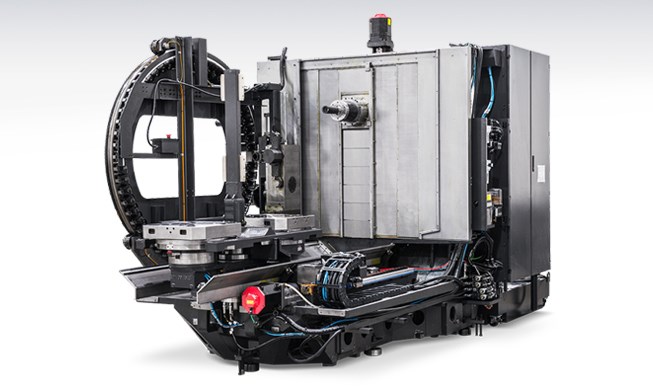

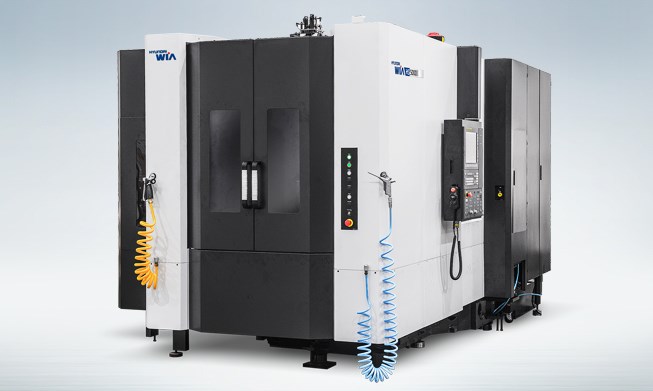

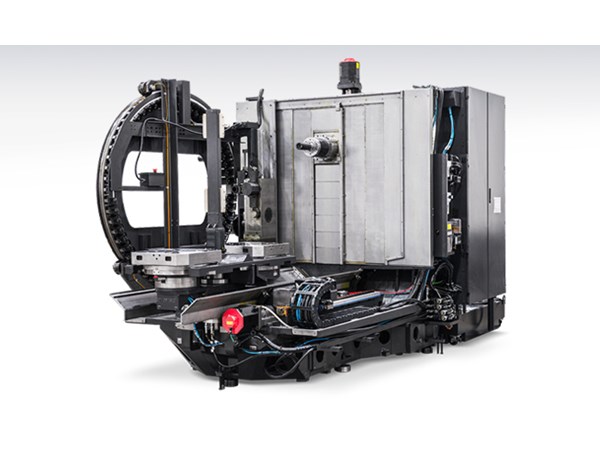

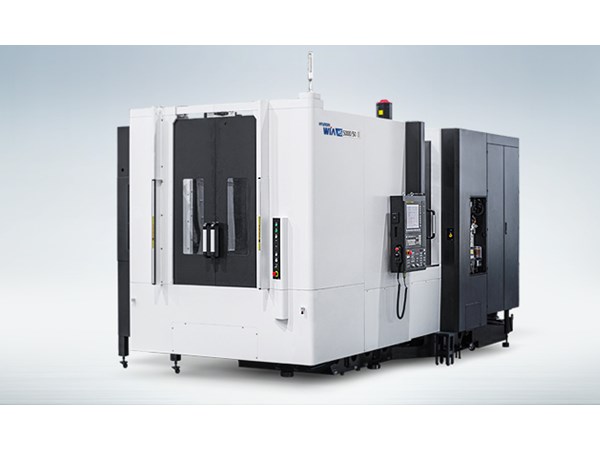

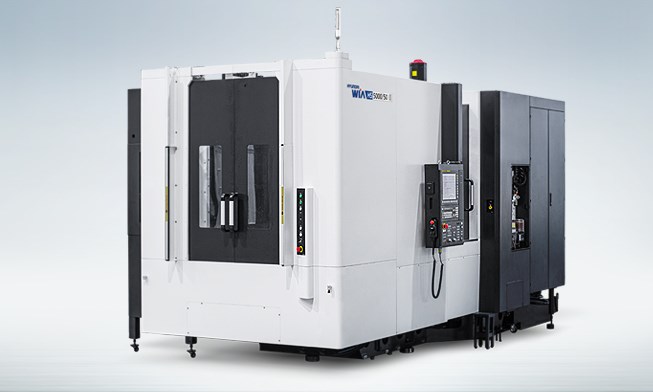

Hyundai Wia HS4000 II Horizontal Machining Center

Homepage / Hyundai Wia HS4000 II Horizontal Machining Center

Hyundai Wia HS4000 II Horizontal Machining Center

Hyundai Wia HS4000 II Horizontal Machining Center

Hyundai Wia HS4000 II Horizontal Machining Center

Hyundai Wia HS4000 II Horizontal Machining Center

Hyundai Wia HS4000 II Horizontal Machining Center

Hyundai Wia HS4000 II Horizontal Machining Center

Table Size — 2 - 400×400 mm

Travel(X/Y/Z) — 560/640/660 mm

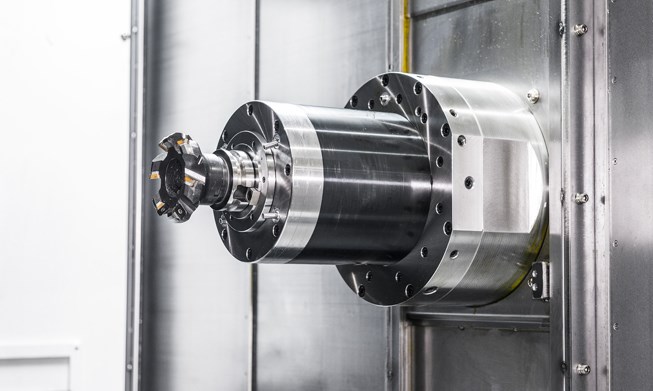

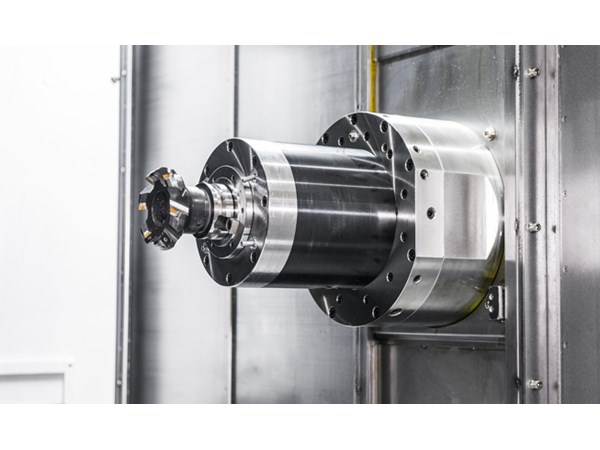

Spindle Taper — BBT40

Control Unit — Fanuc 31i-B Plus

Description	Unit	HS4000 II	HS5000 II	HS5000/50 II
Pallets Size	mm	2 - 400×400	2 - 500×500	2 - 500×500
Max. Load Capacity	kgf	2 - 400	2 - 500	2 - 1,000
Spindle Driving Method	-	Built in	Built in	Built in
Spindle Taper	-	BBT40	BBT40	BBT50
Spindle RPM	r/min	15,000	15,000	10,000
Spindle Power	kW	30/18.5	30/18.5	45/25
Spindle Torque	N.m	230/119	230/119	623/305
Travel(X/Y/Z)	mm	560/640/660	730/730/880	800/800/880
Rapid Feed Rate(X/Y/Z)	m/min	60/60/60	60/60/60	60/60/60
Slide Type	-	LM	LM	LM

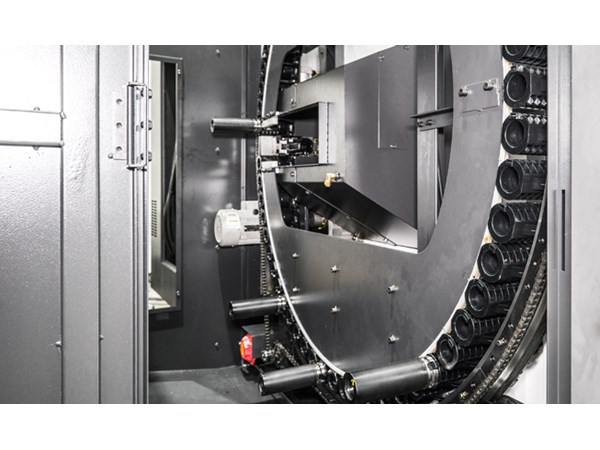

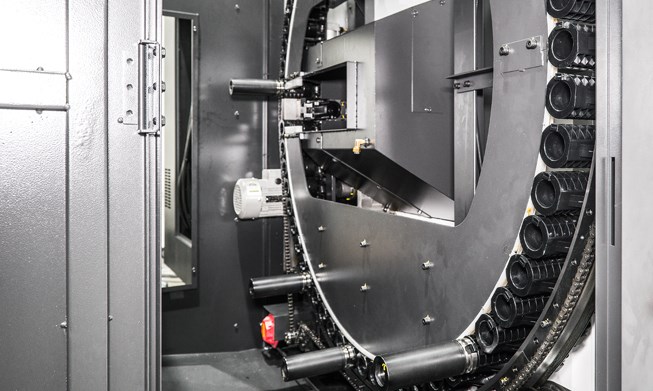

No. of Tools	EA	40	40	40
Tool Change Time	sec	0.9/2.3	0.9/2.6	2.0/4.0
(Chip To Chip)
No. of Pallets	EA	2	2	2
APC Type	-	ROTARY TURN	ROTARY TURN	ROTARY TURN
Pallet Change Time	sec	8.0	9.2	10
