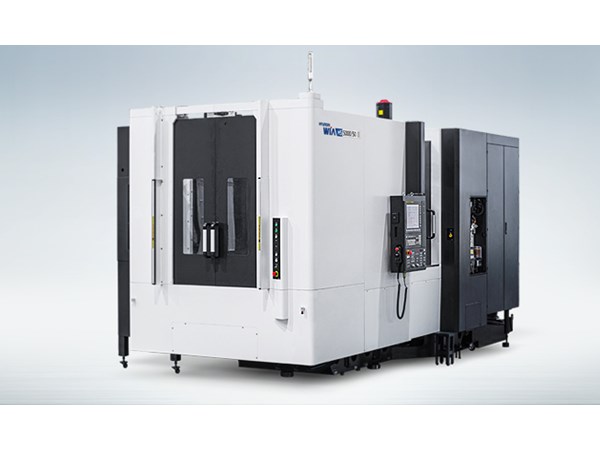

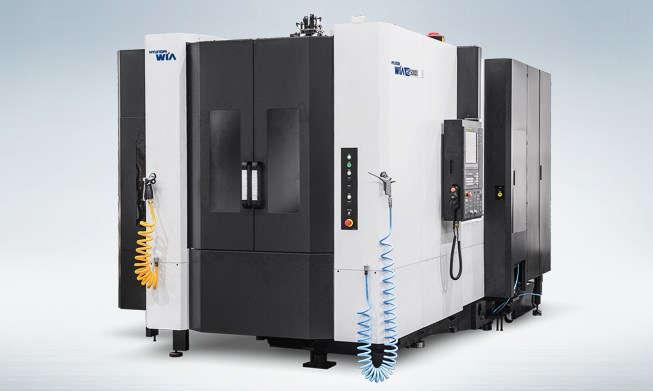

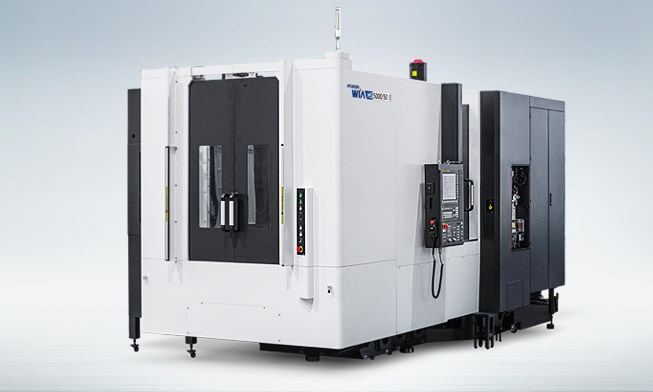

Hyundai Wia HS5000/50 II Horizontal Machining Center

Homepage / Hyundai Wia HS5000/50 II Horizontal Machining Center

Hyundai Wia HS5000/50 II Horizontal Machining Center

Hyundai Wia HS5000/50 II Horizontal Machining Center

Hyundai Wia HS5000/50 II Horizontal Machining Center

Hyundai Wia HS5000/50 II Horizontal Machining Center

Hyundai Wia HS5000/50 II Horizontal Machining Center

Hyundai Wia HS5000/50 II Horizontal Machining Center

Table Size — 2 - 500×500 mm

Travel(X/Y/Z) — 800/800/880 mm

Spindle Taper — BBT50

Control Unit — Fanuc 31i-B Plus

Description	Unit	HS4000 II	HS5000 II	HS5000/50 II
Pallets Size	mm	2 - 400×400	2 - 500×500	2 - 500×500
Max. Load Capacity	kgf	2 - 400	2 - 500	2 - 1,000
Spindle Driving Method	-	Built in	Built in	Built in
Spindle Taper	-	BBT40	BBT40	BBT50
Spindle RPM	r/min	15,000	15,000	10,000
Spindle Power	kW	30/18.5	30/18.5	45/25
Spindle Torque	N.m	230/119	230/119	623/305
Travel(X/Y/Z)	mm	560/640/660	730/730/880	800/800/880
Rapid Feed Rate(X/Y/Z)	m/min	60/60/60	60/60/60	60/60/60
Slide Type	-	LM	LM	LM
No. of Tools	EA	40	40	40
Tool Change Time	sec	0.9/2.3	0.9/2.6	2.0/4.0
(Chip To Chip)
No. of Pallets	EA	2	2	2
APC Type	-	ROTARY TURN	ROTARY TURN	ROTARY TURN
Pallet Change Time	sec	8.0	9.2	10
