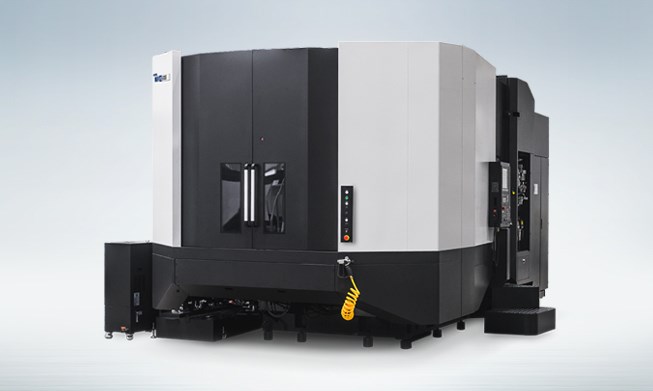

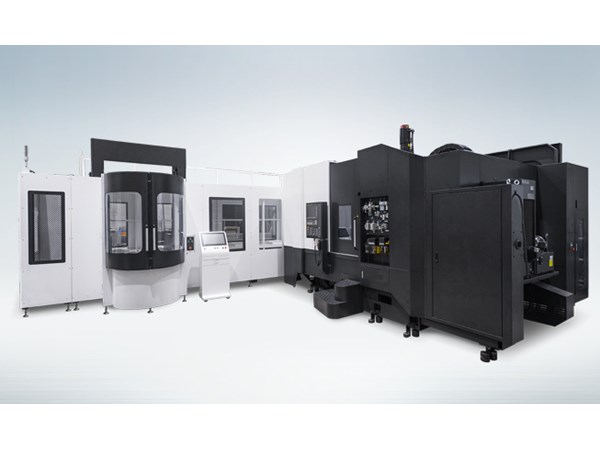

Hyundai Wia HS6300 II Horizontal Machining Center

Homepage / Hyundai Wia HS6300 II Horizontal Machining Center

Hyundai Wia HS6300 II Horizontal Machining Center

Hyundai Wia HS6300 II Horizontal Machining Center

Hyundai Wia HS6300 II Horizontal Machining Center

Hyundai Wia HS6300 II Horizontal Machining Center

Hyundai Wia HS6300 II Horizontal Machining Center

Hyundai Wia HS6300 II Horizontal Machining Center

Hyundai Wia HS6300 II Horizontal Machining Center

Table Size — 2 - 630×630 mm

Travel(X/Y/Z) — 1,050/900/1,000 mm

Spindle Taper — BBT50

Control Unit — Fanuc 31i-B Plus

Description	Unit	HS6300 II	HS8000 II
Pallets Size	mm	2 - 630×630	2 - 800×800
Max. Load Capacity	kgf	2 - 1,500	2 - 2,000
Spindle Driving Method	-	Built in	Built in
Spindle Taper	-	BBT50	BBT50
Spindle RPM	r/min	10,000	10,000
Spindle Power	kW	45/25	45/25
Spindle Torque	N.m	623/305	623/305
Travel(X/Y/Z)	mm	1,050/900/1,000	1,400/1,200/1,370
Rapid Feed Rate(X/Y/Z)	m/min	60/60/60	50/50/50
Slide Type	-	LM	LM
No. of Tools	EA	40	40
Tool Change Time	sec	4.9	5.4
(Chip To Chip)
No. of Pallets	EA	2	2
APC Type	-	DIRECT TURN	DIRECT TURN
Pallet Change Time	sec	12	16
