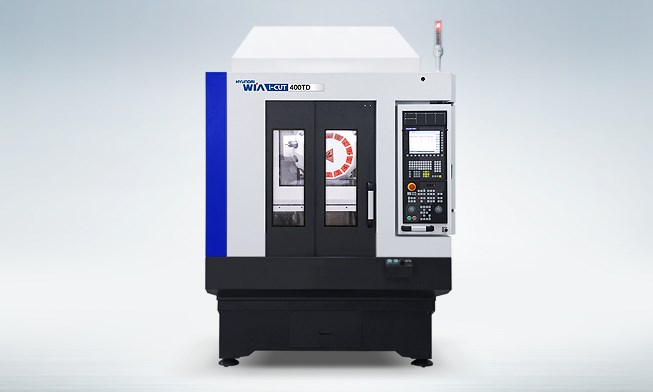

Hyundai Wia i-CUT400TD Vertical Machining Center

Homepage / Hyundai Wia i-CUT400TD Vertical Machining Center

Hyundai Wia i-CUT400TD Vertical Machining Center

Hyundai Wia i-CUT400TD Vertical Machining Center

Hyundai Wia i-CUT400TD Vertical Machining Center

Hyundai Wia i-CUT400TD Vertical Machining Center

Hyundai Wia i-CUT400TD Vertical Machining Center

Hyundai Wia i-CUT400TD Vertical Machining Center

Hyundai Wia i-CUT400TD Vertical Machining Center

Hyundai Wia i-CUT400TD Vertical Machining Center

Hyundai Wia i-CUT400TD Vertical Machining Center

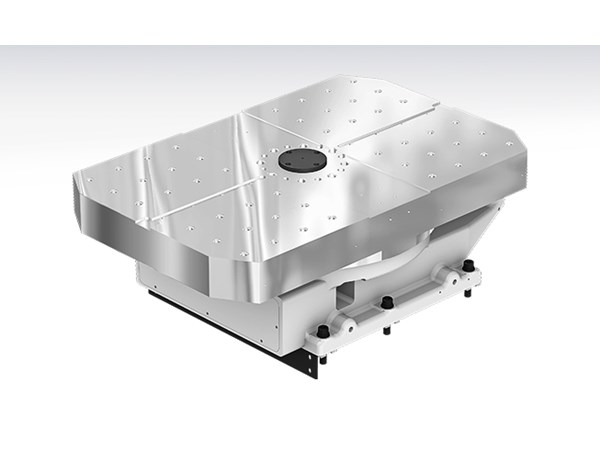

Table Size — 2 - 650×400 mm

Travel(X/Y/Z) — 520/400/330 mm

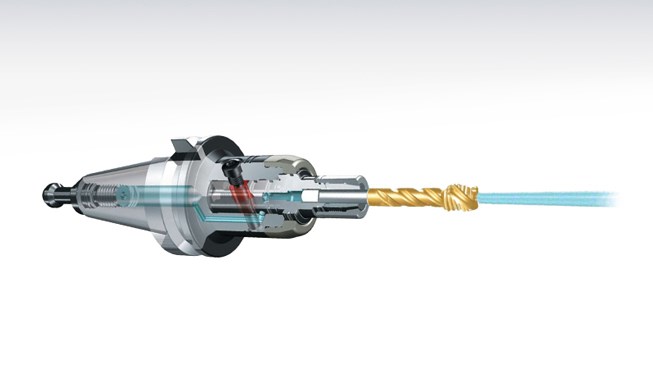

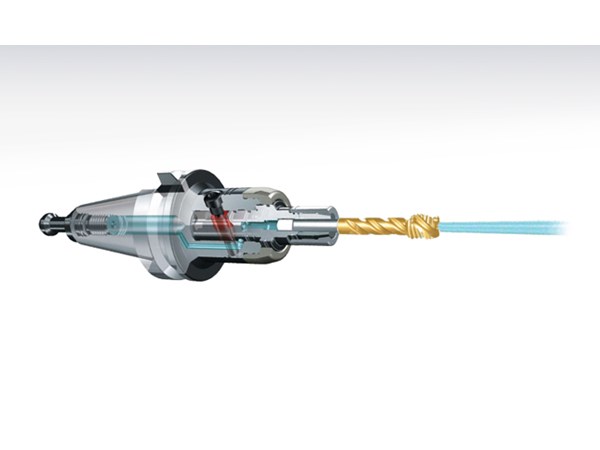

Spindle Taper — BBT30

Control Unit — Siemens 828D

Description	Unit	i-CUT400TD

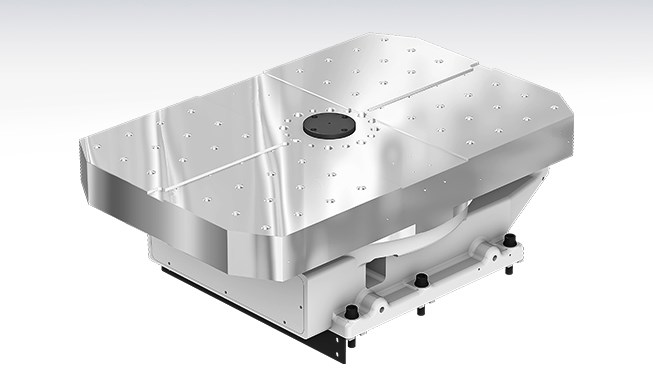

Table Size	mm	2 - 650×400
Max. Load Capacity	kg	2 - 250

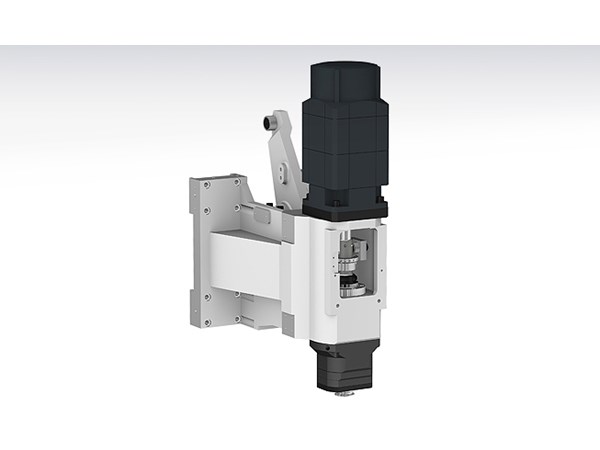

Spindle Driving Method	-	Direct
Spindle Taper	-	BBT30
Spindle RPM	r/min	12,000
Spindle Power	kW	14.1/4.1
Spindle Torque	N.m	45/21
Travel(X/Y/Z)	mm	520/400/330
Rapid Feed Rate(X/Y/Z)	m/min	56/56/56
Slide Type	-	LM

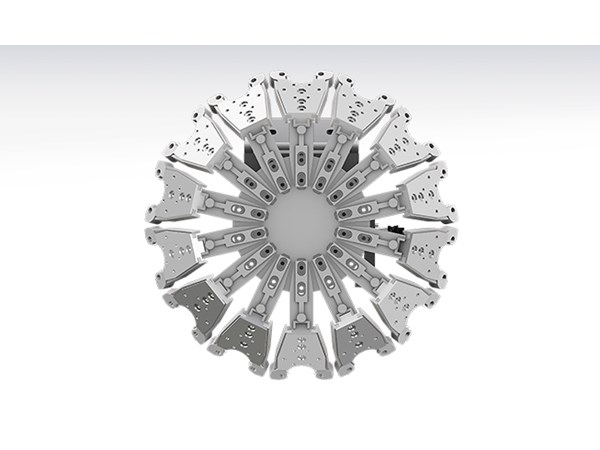

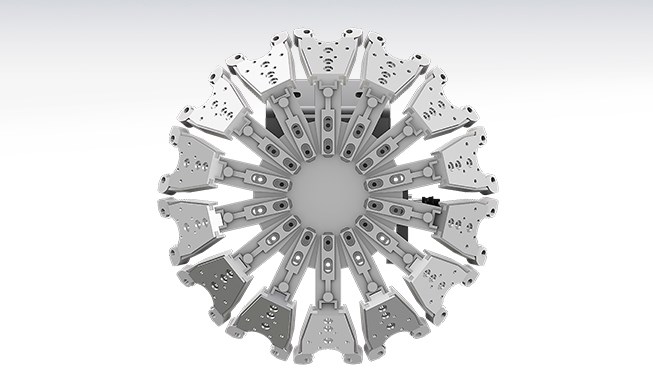

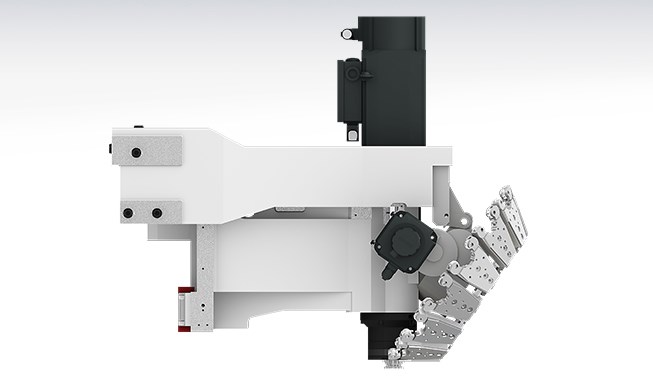

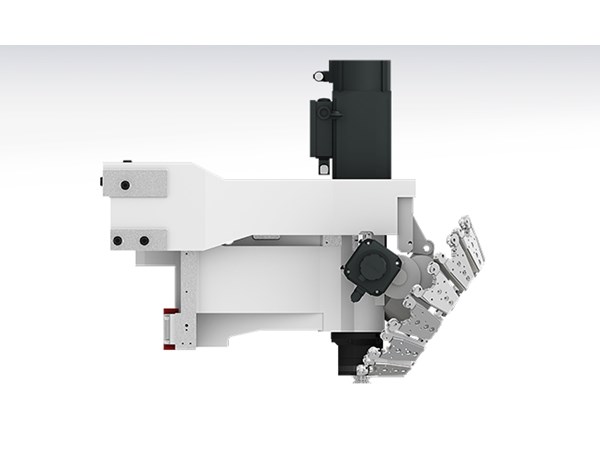

No. of Tools	EA	14
Tool Change Time (Chip To Chip)	sec	1.6
Tool Change Time (Chip To Chip)	sec	1.6
