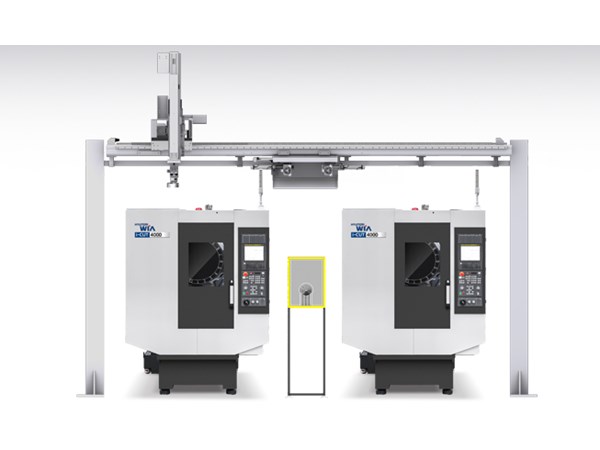

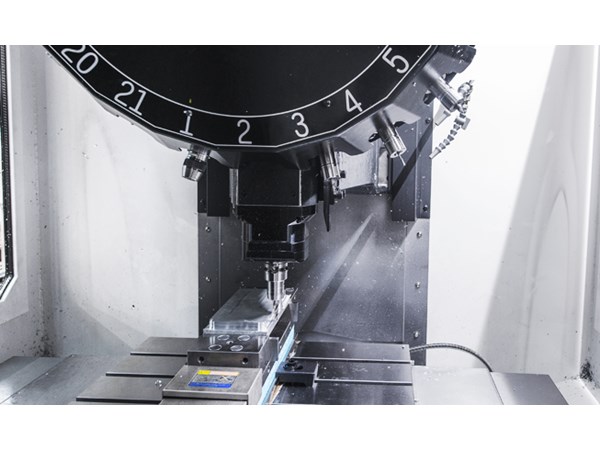

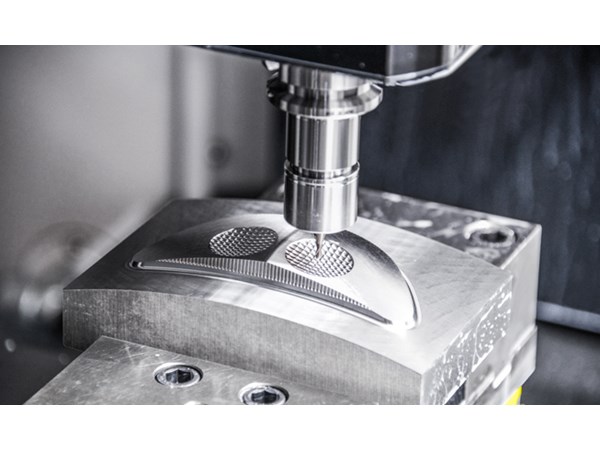

Hyundai Wia i-CUT4500 Vertical Machining Center

Homepage / Hyundai Wia i-CUT4500 Vertical Machining Center

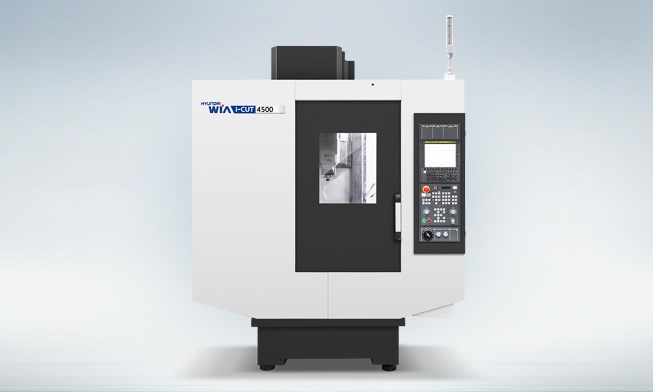

Hyundai Wia i-CUT4500 Vertical Machining Center

Hyundai Wia i-CUT4500 Vertical Machining Center

Hyundai Wia i-CUT4500 Vertical Machining Center

Hyundai Wia i-CUT4500 Vertical Machining Center

Hyundai Wia i-CUT4500 Vertical Machining Center

Hyundai Wia i-CUT4500 Vertical Machining Center

Hyundai Wia i-CUT4500 Vertical Machining Center

Hyundai Wia i-CUT4500 Vertical Machining Center

Hyundai Wia i-CUT4500 Vertical Machining Center

Table Size — 800×450 mm

Travel(X/Y/Z) — 700/450/300 mm

Spindle Taper — BBT30

Control Unit — Fanuc 0i Plus

Description	Unit	i-CUT4000	i-CUT4500
Table Size	mm	650×400	800×450
Max. Load Capacity	kg	300	300
Spindle Driving Method	-	Direct	Direct
Spindle Taper	-	BBT30	BBT30
Spindle RPM	r/min	12,000	12,000
Spindle Power	kW	13/3.7	13/3.7
Spindle Torque	N.m	82.7/23.5	82.7/23.5
Travel(X/Y/Z)	mm	550/400/300	700/450/300
Rapid Feed Rate(X/Y/Z)	m/min	56/56/56	56/56/56
Slide Type	-	LM	LM
No. of Tools	EA	21	21
Tool Change Time (Chip To Chip)	sec	1.8	1.8
Tool Change Time (Chip To Chip)	sec	1.8	1.8
