Hyundai Wia KF3500/5A Vertical Machining Center

Homepage / Hyundai Wia KF3500/5A Vertical Machining Center

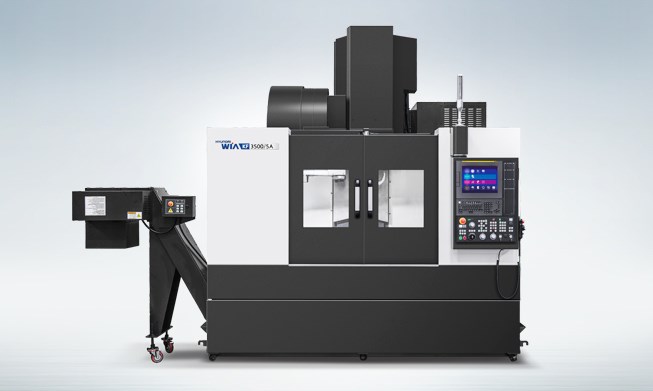

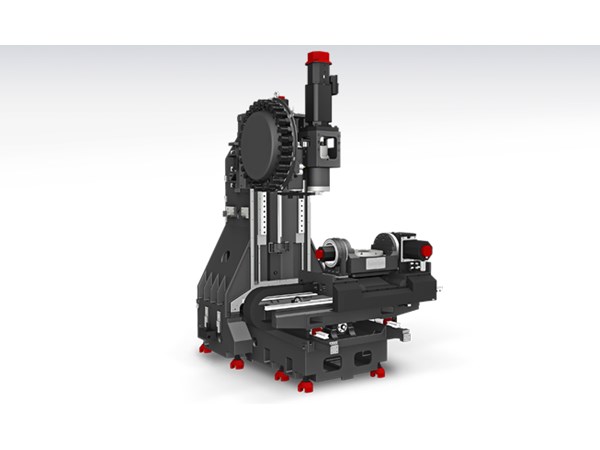

Hyundai Wia KF3500/5A Vertical Machining Center

Hyundai Wia KF3500/5A Vertical Machining Center

Hyundai Wia KF3500/5A Vertical Machining Center

Table Size — 350 mm

Travel(X/Y/Z) — 600/655/500 mm

Spindle Taper — BBT40

Control Unit — Fanuc 0i Plus

Description	Unit	KF3500/5A
Table Size	mm	350
Max. Load Capacity	kg	250
Spindle Driving Method	-	Direct
Spindle Taper	-	BBT40
Spindle RPM	r/min	12,000
Spindle Power	kW	18.5/11
Spindle Torque	N.m	118/52.5
Travel(X/Y/Z)	mm	600/655/500
Rapid Feed Rate(X/Y/Z)	m/min	36/36/30
Slide Type	-	LM
No. of Tools	EA	30
Tool Change Time (Chip To Chip)	sec	3.4
Tool Change Time (Chip To Chip)	sec	3.4
