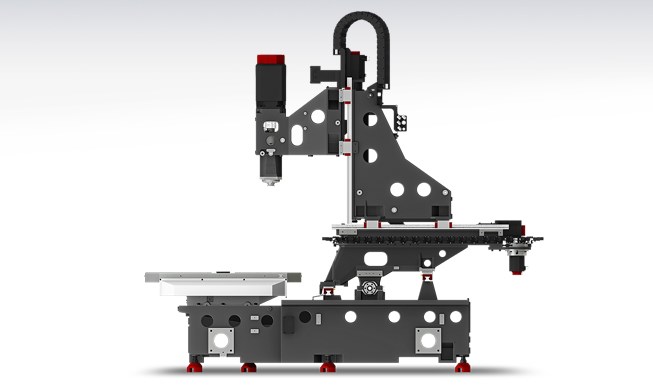

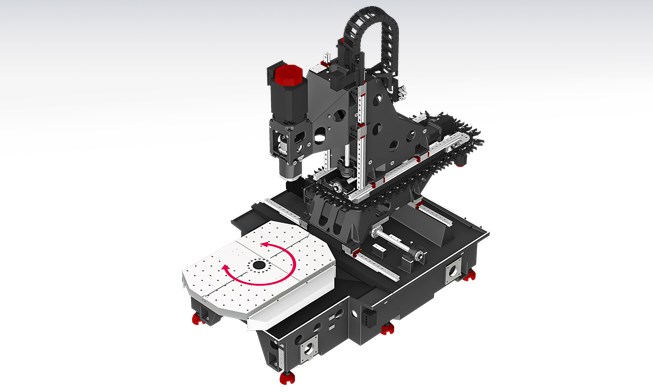

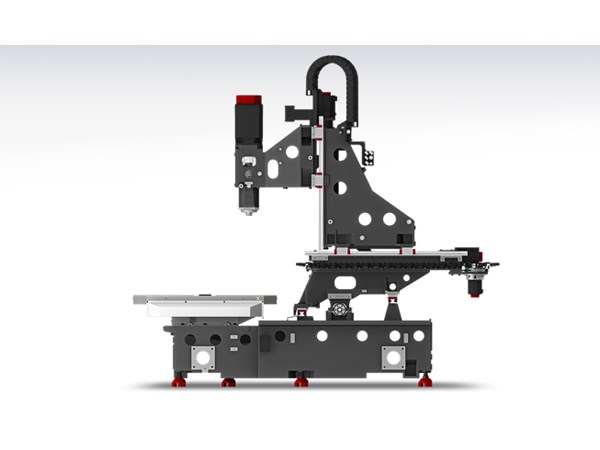

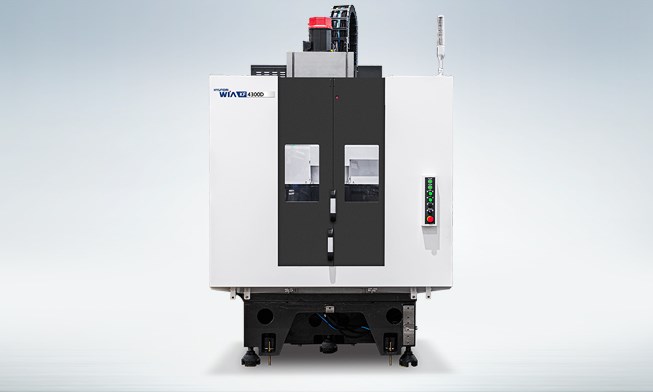

Hyundai Wia KF4300D Vertical Machining Center

Homepage / Hyundai Wia KF4300D Vertical Machining Center

Hyundai Wia KF4300D Vertical Machining Center

Hyundai Wia KF4300D Vertical Machining Center

Hyundai Wia KF4300D Vertical Machining Center

Hyundai Wia KF4300D Vertical Machining Center

Hyundai Wia KF4300D Vertical Machining Center

Hyundai Wia KF4300D Vertical Machining Center

Hyundai Wia KF4300D Vertical Machining Center

Hyundai Wia KF4300D Vertical Machining Center

Hyundai Wia KF4300D Vertical Machining Center

Hyundai Wia KF4300D Vertical Machining Center

Hyundai Wia KF4300D Vertical Machining Center

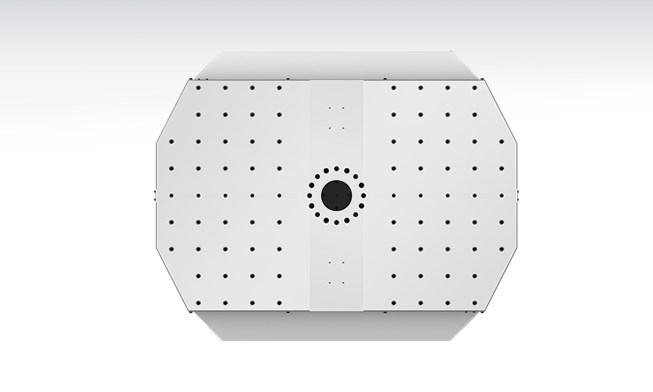

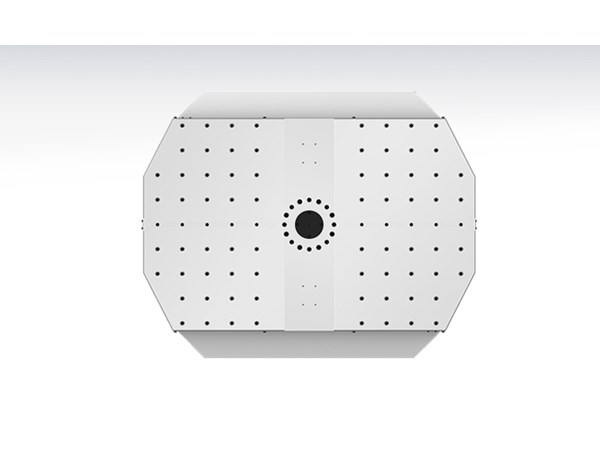

Table Size — 2 - 660×480 mm

Travel(X/Y/Z) — 560/430/570 mm

Spindle Taper — BBT40

Control Unit — FANUC 0i Plus

Description	Unit	KF4300D	KF5200D	KF6000D
Table Size	mm	2 - 660×480	2 - 860×570	2 - 950×650
Max. Load Capacity	kg	2 - 300	2 - 350	2 - 500

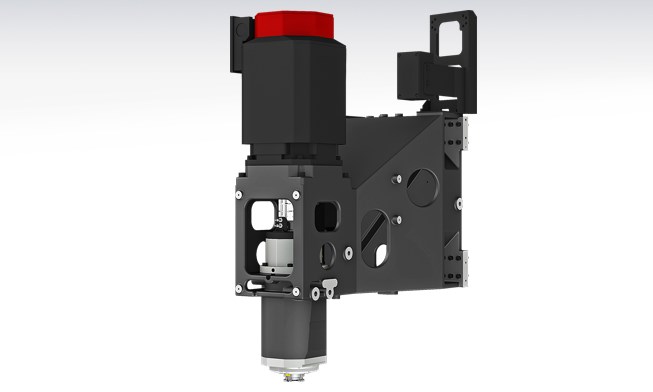

Spindle Driving Method	-	Direct	Direct	Direct

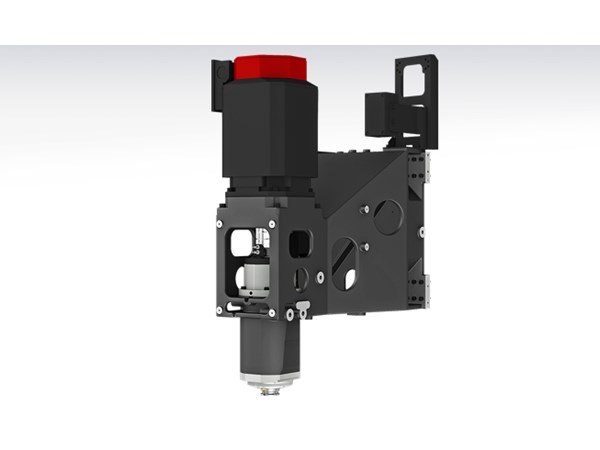

Spindle Taper	-	BBT40	BBT40	BBT40
Spindle RPM	r/min	8,000	8,000	8,000
Spindle Power	kW	18.5/15	18.5/15	18.5/15
Spindle Torque	N.m	118/95.5	118/95.5	118/95.5
Travel(X/Y/Z)	mm	560/430/570	760/520/570	830/600/635
Rapid Feed Rate(X/Y/Z)	m/min	42/42/42	42/42/42	42/42/42
Slide Type	-	LM	LM	LM

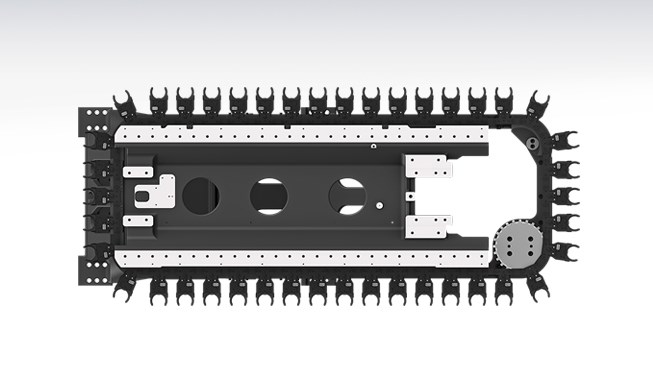

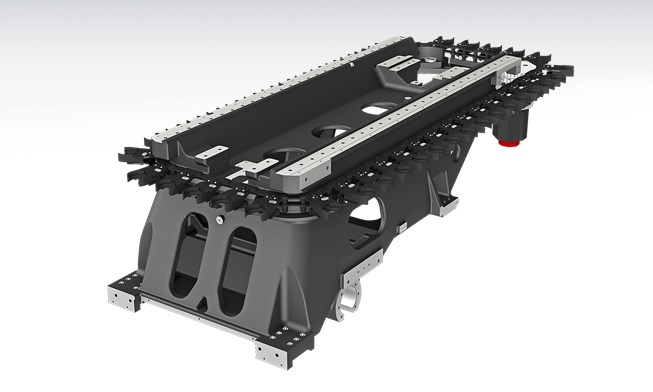

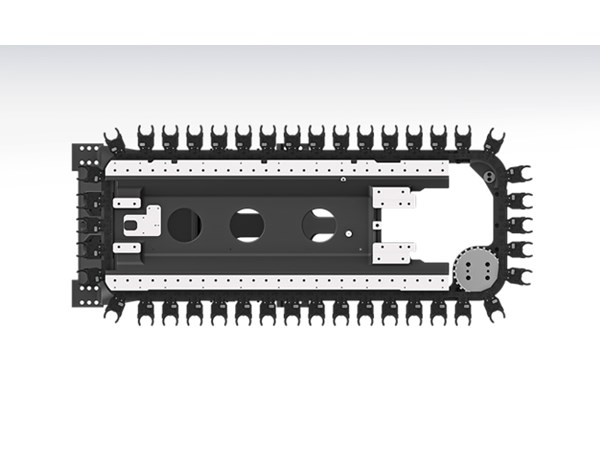

No. of Tools	EA	42	42	45
Tool Change Time (Chip To Chip)	sec	4.6	4.7	4.8
Tool Change Time (Chip To Chip)	sec	4.6	4.7	4.8
