Hyundai Wia KF5/50 Vertical Machining Center

Homepage / Hyundai Wia KF5/50 Vertical Machining Center

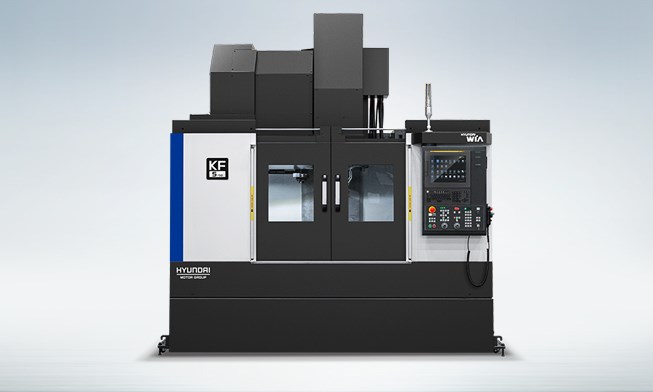

Hyundai Wia KF5/50 Vertical Machining Center

Hyundai Wia KF5/50 Vertical Machining Center

Table Size — 1,300×560 mm

Travel(X/Y/Z) — 1050/560/510 mm

Spindle Taper — BBT50

Control Unit — FANUC 0i Plus

Description	Unit	KF5/50
Table Size	mm	1,300x560
Max. Load Capacity	kg	1,000
Spindle Driving Method	-	Direct
Spindle Taper	-	BBT50
Spindle RPM	r/min	8,000
Spindle Power	kW	22/11
Spindle Torque	N.m	353.2/143
Travel(X/Y/Z)	mm	1050/560/510
Rapid Feed Rate(X/Y/Z)	m/min	36/36/30
Slide Type	-	LM
No. of Tools	EA	24
Tool Change Time (Chip To Chip)	sec	5.5
Tool Change Time (Chip To Chip)	sec	5.5
