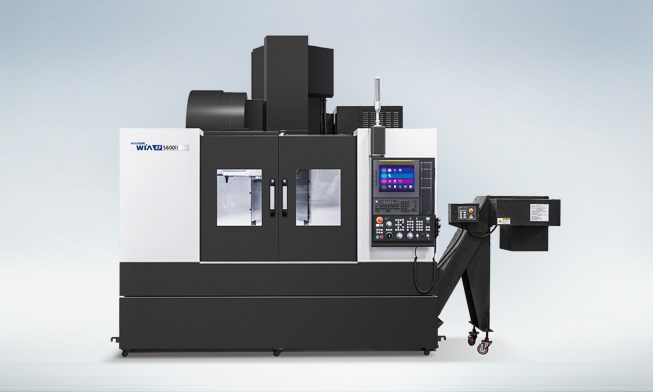

Hyundai Wia KF5600 II Vertical Machining Center

Homepage / Hyundai Wia KF5600 II Vertical Machining Center

Hyundai Wia KF5600 II Vertical Machining Center

Hyundai Wia KF5600 II Vertical Machining Center

Hyundai Wia KF5600 II Vertical Machining Center

Hyundai Wia KF5600 II Vertical Machining Center

Hyundai Wia KF5600 II Vertical Machining Center

Hyundai Wia KF5600 II Vertical Machining Center

Hyundai Wia KF5600 II Vertical Machining Center

Hyundai Wia KF5600 II Vertical Machining Center

Hyundai Wia KF5600 II Vertical Machining Center

Table Size — 1250×560 mm

Travel(X/Y/Z) — 1100/560/520 mm

Spindle Taper — BBT40

Control Unit — Fanuc 0i PLUS

Description	Unit	KF5600 II(8k)	KF5600 II(8k-OPT1)	KF5600 II(10k-OPT2)	KF5600 II(12k-OPT3)
Table Size	mm	1250×560	1250×560	1250×560	1250×560
Max. Load Capacity	kg	1,000	1,000	1,000	1,000
Spindle Driving Method	-	Direct	Direct	Direct	Direct
Spindle Taper	-	BBT40	BBT40	BBT40	HSK-A63
Spindle RPM	r/min	8,000	8,000	10,000	12,000
Spindle Power	kW	18.5/11	15/11	18.5/11	18.5/11
Spindle Torque	N.m	118/52.5	286/143	118/52.5	118/52.5
Travel(X/Y/Z)	mm	1100/560/520	1100/560/520	1100/560/520	1100/560/520
Rapid Feed Rate(X/Y/Z)	m/min	36/36/30	36/36/30	36/36/30	36/36/30
Slide Type	-	LM	LM	LM	LM
No. of Tools	EA	30	30	30	30
Tool Change Time (Chip To Chip)	sec	3.2	3.2	3.2	3.2
Tool Change Time (Chip To Chip)	sec	3.2	3.2	3.2	3.2
