Hyundai Wia KF5600L II Vertical Machining Center

Homepage / Hyundai Wia KF5600L II Vertical Machining Center

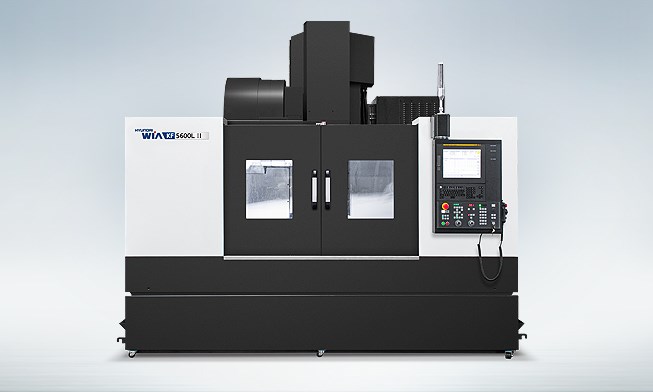

Hyundai Wia KF5600L II Vertical Machining Center

Hyundai Wia KF5600L II Vertical Machining Center

Table Size — 1500×560 mm

Travel(X/Y/Z) — 1300/560/520 mm

Spindle Taper — BBT40

Control Unit — Fanuc 0i

Description	Unit	KF5600L II
Table Size	mm	1500×560
Max. Load Capacity	kg	1,000
Spindle Driving Method	-	Direct
Spindle Taper	-	BBT40
Spindle RPM	r/min	8,000
Spindle Power	kW	18.5/11
Spindle Torque	N.m	118/52.5
Travel(X/Y/Z)	mm	1300/560/520
Rapid Feed Rate(X/Y/Z)	m/min	36/36/30
Slide Type	-	LM
No. of Tools	EA	30
Tool Change Time (Chip To Chip)	sec	3.5
Tool Change Time (Chip To Chip)	sec	3.5
