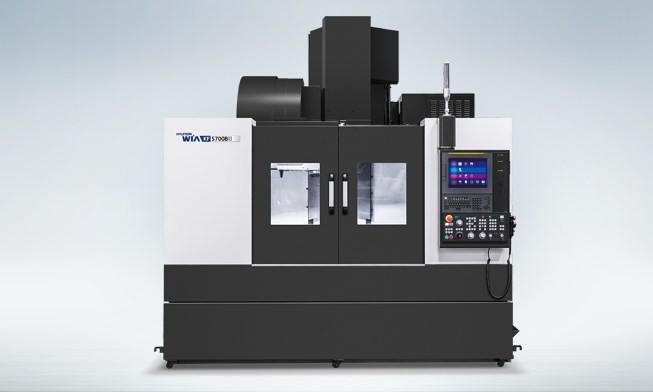

Hyundai Wia KF5700B/50 II Vertical Machining Center

Homepage / Hyundai Wia KF5700B/50 II Vertical Machining Center

Hyundai Wia KF5700B/50 II Vertical Machining Center

Hyundai Wia KF5700B/50 II Vertical Machining Center

Hyundai Wia KF5700B/50 II Vertical Machining Center

Table Size — 1,300×570 mm

Travel(X/Y/Z) — 1,100/570/520 mm

Spindle Taper — BBT50

Control Unit — FANUC 0i Plus

Description	Unit	KF5700B II	KF5700B/50 II
Table Size	mm	1,300×570	1,300×570
Max. Load Capacity	kg	1,000	1,000
Spindle Driving Method	-	Direct	Direct
Spindle Taper	-	BBT40	BBT50
Spindle RPM	r/min	8,000	8,000
Spindle Power	kW	15/11	15/11
Spindle Torque	N.m	286/143	286/143
Travel(X/Y/Z)	mm	1,100/570/520	1,100/570/520
Rapid Feed Rate(X/Y/Z)	m/min	30/30/24	30/30/24
Slide Type	-	BOX	BOX
No. of Tools	EA	30	24
Tool Change Time (Chip To Chip)	sec	3.7	5.5
Tool Change Time (Chip To Chip)	sec	3.7	5.5
