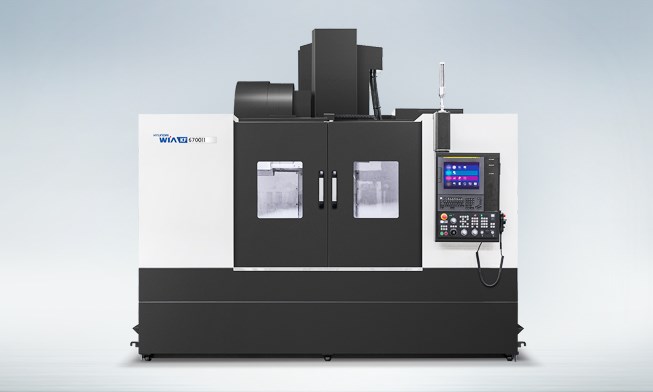

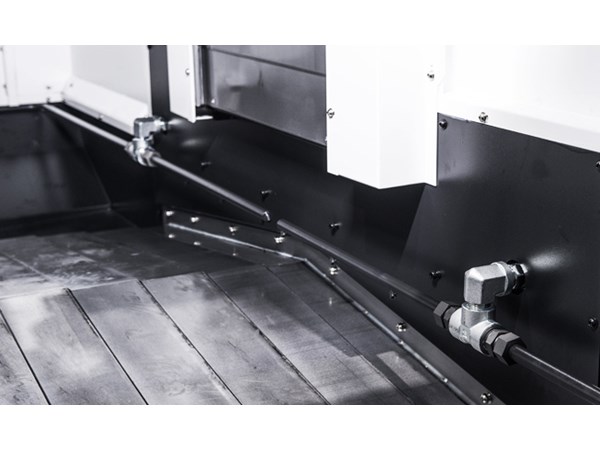

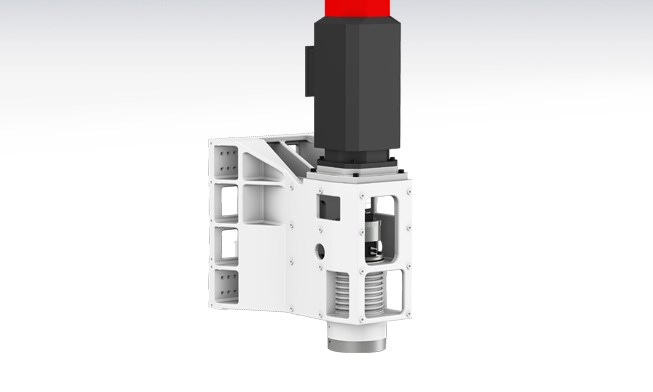

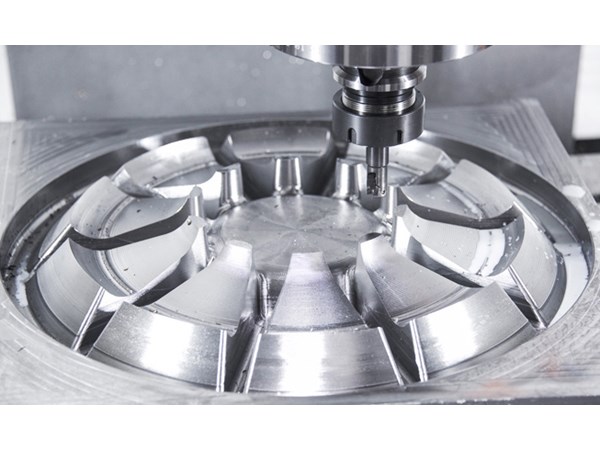

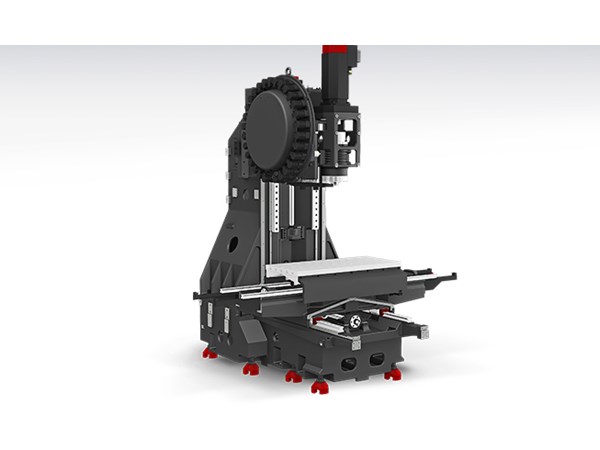

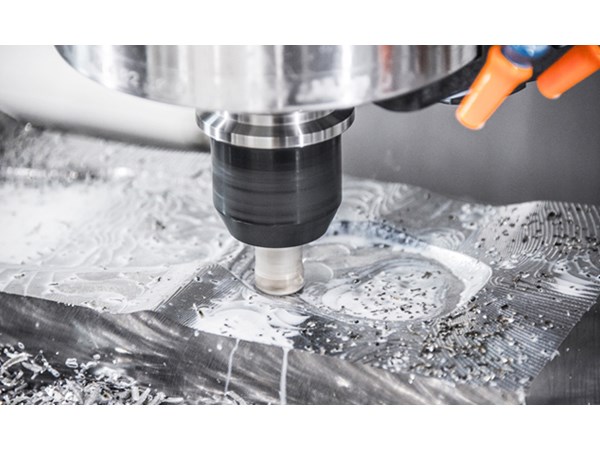

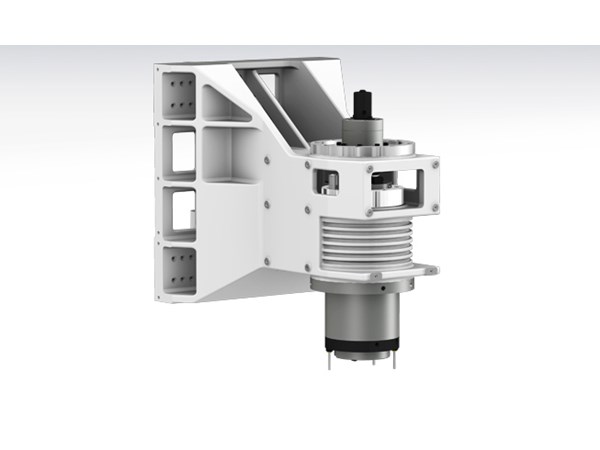

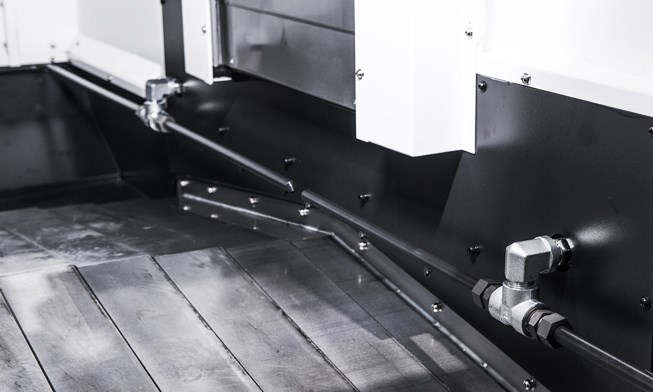

Hyundai Wia KF6700 II Vertical Machining Center
Homepage
/
Hyundai Wia KF6700 II Vertical Machining Center
Hyundai Wia KF6700 II Vertical Machining Center
Table Size —
1500×670 mm
Travel(X/Y/Z) —
1300/670/635 mm
Spindle Taper —
BBT40
Control Unit —
Fanuc
Get a Quote
Description
Description
Unit
KF6700 II(8k)
KF6700 II(8k-OPT1)
KF6700 II(10k-OPT2)
KF6700 II(12k-OPT3)
Table Size
mm
1500×670
1500×670
1500×670
1500×670
Max. Load Capacity
kg
1,300
1,300
1,300
1,300
Spindle Driving Method
-
Direct
Direct
Direct
Direct
Spindle Taper
-
BBT40
BBT40
BBT40
HSK-A63
Spindle RPM
r/min
8,000
8,000
10,000
12,000
Spindle Power
kW
18.5/11
15/11
18.5/11
18.5/11
Spindle Torque
N.m
118/52.5
286/143
118/52.5
118/52.5
Travel(X/Y/Z)
mm
1300/670/635
1300/670/635
1300/670/635
1300/670/635
Rapid Feed Rate(X/Y/Z)
m/min
36/36/30
36/36/30
36/36/30
36/36/30
Slide Type
-
LM
LM
LM
LM
No. of Tools
EA
30
30
30
30
Tool Change Time (Chip To Chip)
sec
3.5
3.5
3.5
3.5
