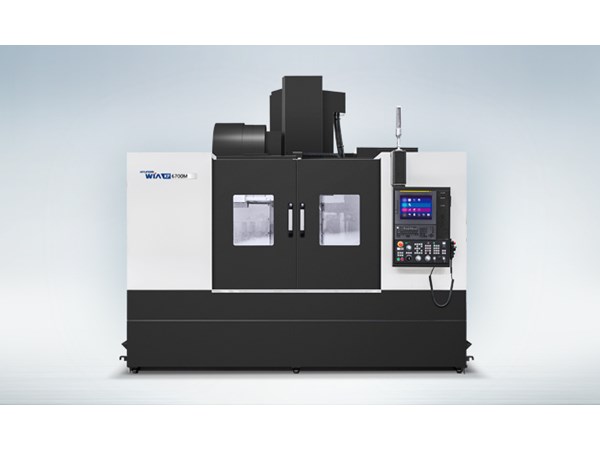

Hyundai Wia KF6700M Vertical Machining Center

Homepage / Hyundai Wia KF6700M Vertical Machining Center

Hyundai Wia KF6700M Vertical Machining Center

Hyundai Wia KF6700M Vertical Machining Center

Hyundai Wia KF6700M Vertical Machining Center

Table Size — 1500×670 mm

Travel(X/Y/Z) — 1300/670/635 mm

Spindle Taper — BBT40

Control Unit — FANUC 31i-B

Description	Unit	KF5600M	KF6700M
Table Size	mm	1250×560	1500×670
Max. Load Capacity	kg	1,000	1,300
Spindle Driving Method	-	Built in	Built in
Spindle Taper	-	BBT40	BBT40
Spindle RPM	r/min	20,000	20,000
Spindle Power	kW	22/18.5	22/18.5
Spindle Torque	N.m	98/80	98/80
Travel(X/Y/Z)	mm	1100/560/520	1300/670/635
Rapid Feed Rate(X/Y/Z)	m/min	36/36/30	36/36/30
Slide Type	-	LM	LM
No. of Tools	EA	30	30
Tool Change Time (Chip To Chip)	sec	3.2	3.2
Tool Change Time (Chip To Chip)	sec	3.2	3.2
