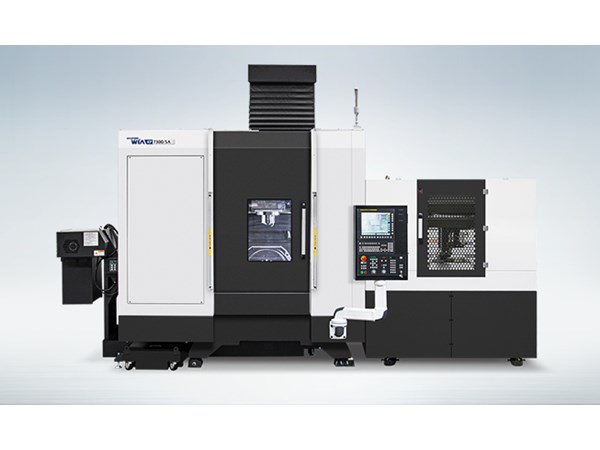

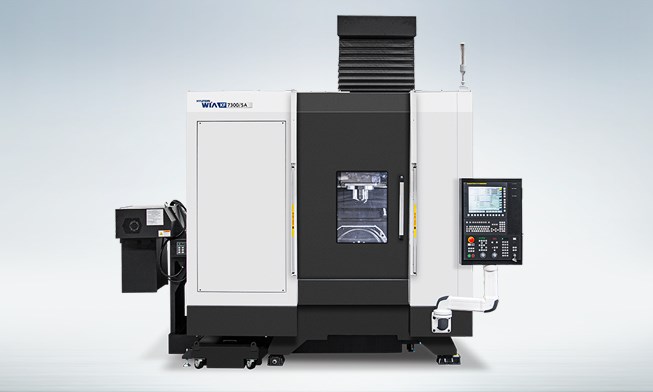

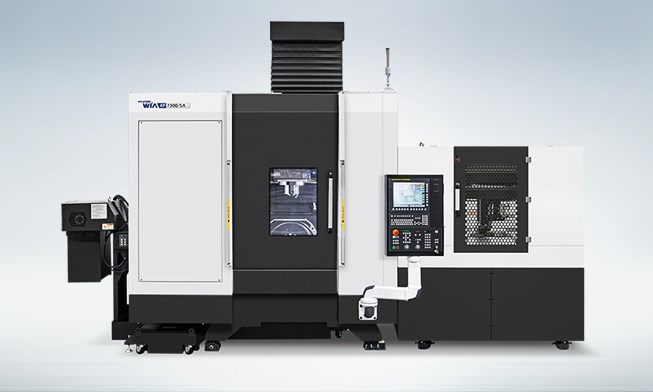

Hyundai Wia KF7300/5A Vertical Machining Center
Homepage
/
Hyundai Wia KF7300/5A Vertical Machining Center
Hyundai Wia KF7300/5A Vertical Machining Center
Table Size —
630 mm
Travel(X/Y/Z) —
765/650/520 mm
Spindle Taper —
BBT40
Control Unit —
Fanuc 31i-B5
Get a Quote
Description
Description
Unit
KF7300/5A
Table Size
mm
630
Max. Load Capacity
kg
500
Spindle Driving Method
-
Built in
Spindle Taper
-
BBT40
Spindle RPM
r/min
12,000
Spindle Power
kW
22/18.5
Spindle Torque
N.m
204/119
Travel(X/Y/Z)
mm
765/650/520
Rapid Feed Rate(X/Y/Z)
m/min
40/40/40
Slide Type
-
LM
No. of Tools
EA
40
Tool Change Time (Chip To Chip)
sec
5.4
