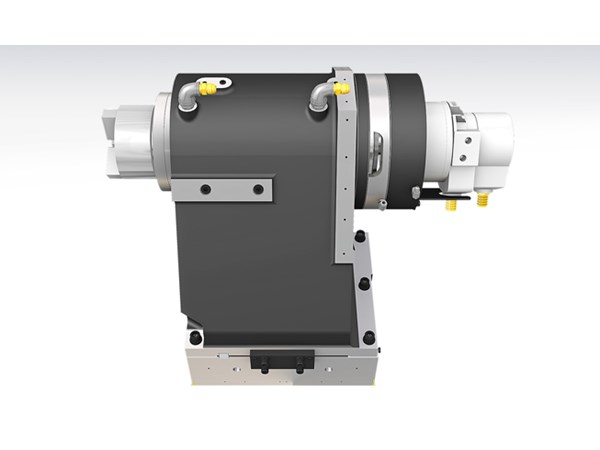

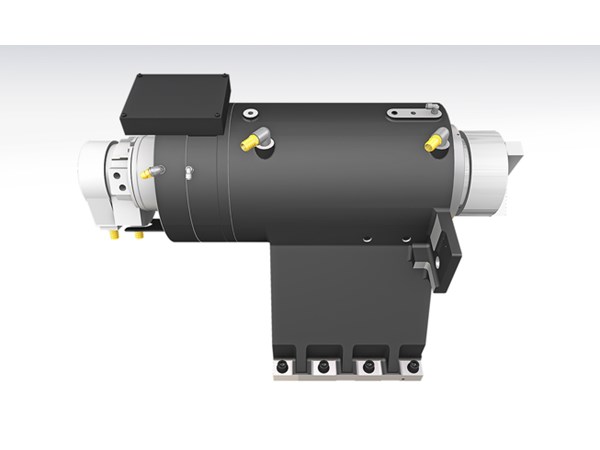

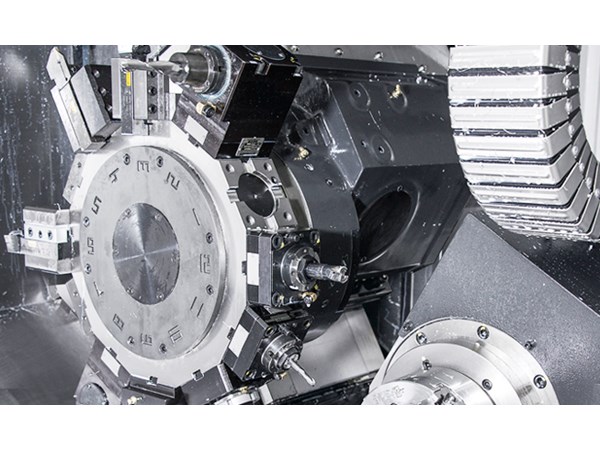

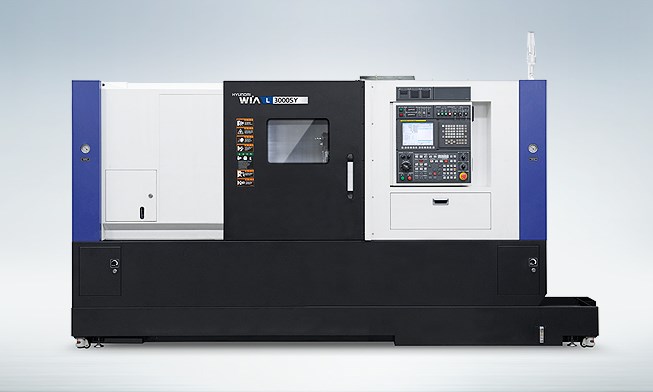

Hyundai Wia L3000Y Turning Center

Homepage / Hyundai Wia L3000Y Turning Center

Hyundai Wia L3000Y Turning Center

Hyundai Wia L3000Y Turning Center

Hyundai Wia L3000Y Turning Center

Hyundai Wia L3000Y Turning Center

Hyundai Wia L3000Y Turning Center

Hyundai Wia L3000Y Turning Center

Hyundai Wia L3000Y Turning Center

Hyundai Wia L3000Y Turning Center

Hyundai Wia L3000Y Turning Center

Max Turning Diameter — 420 mm

Max Turning Length — 760 mm

Chuck Size — 12″

Spindle rpm — 3,000 rpm

Bar Capacity — Ø102 mm

Max. Swing — Ø800 mm

Description	Unit	L3000Y	L3000SY	L3000LY
Max Turning Dia	mm	420	420	420
Max Turning Length	mm	760	760	1,280
Chuck Size	inch	12″	Main 12″ Sub 6″	12″
Chuck Size	inch	12″	Main 12″ Sub 6″	12″
Driving Method	-	Built in	Built in	Built in
Spindle RPM	r/min	3,000	3,000	3,000
Spindle Output	kW	37/25	37/25	37/25
Spindle Torque	N.m	1,262/1,003	1,262/1,003	1,262/1,003
Travel(X/Y/Z)	mm	265/120/830	-	265/120/1,350
Travel(X/Y/Z/ZB)	mm	-	265/120/830/830	-
Rapid Travel(X/Y/Z)	m/min	30/10/30	-	30/10/30
Rapid Travel(X/Y/Z/ZB)	m/min	-	30/10/30/30	-
Slide Type	-	BOX	BOX	BOX
No. of Tools	EA	12	12	12
Tool Size	mm	25/50	25/50	25/50
Milling Tool Speed	r/min	5,000	5,000	5,000
