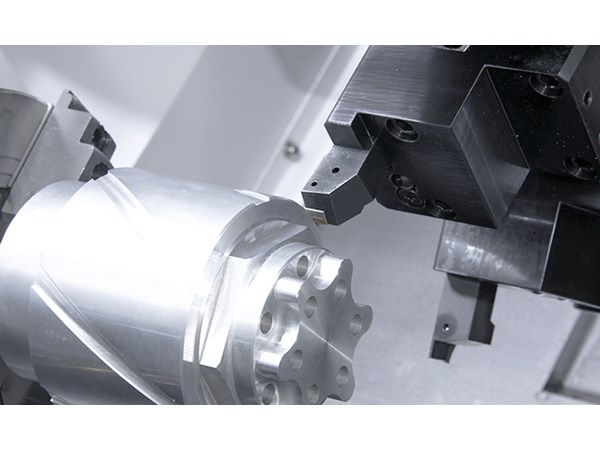

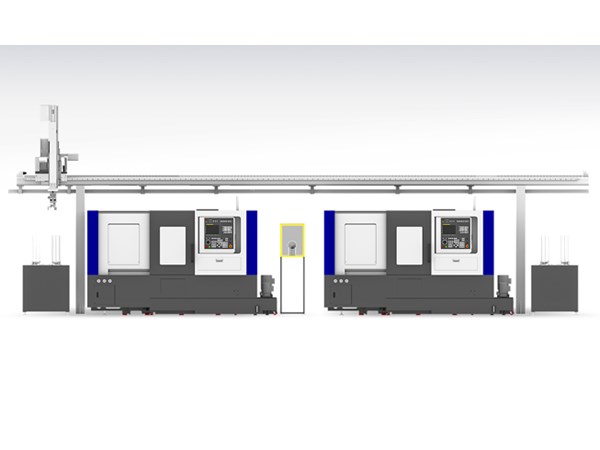

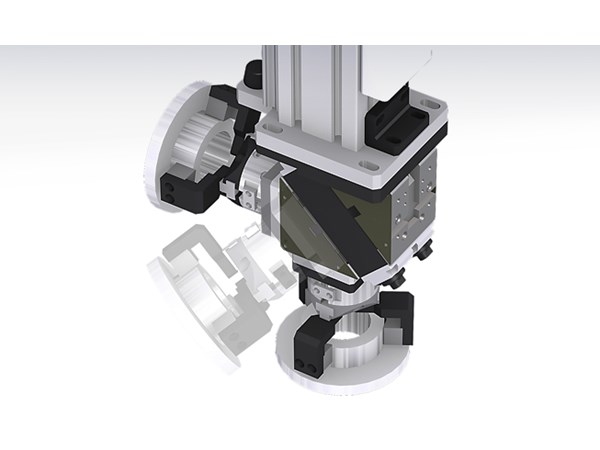

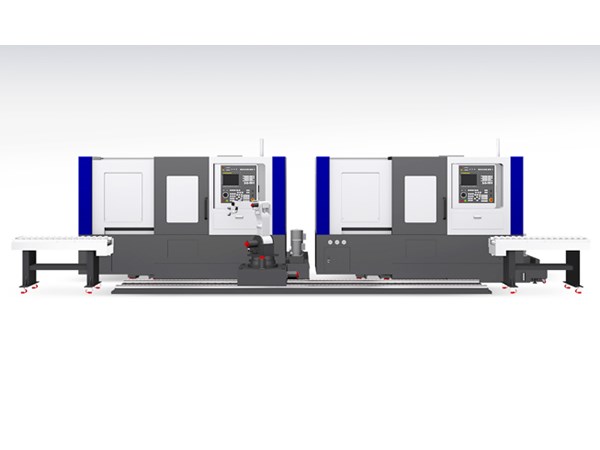

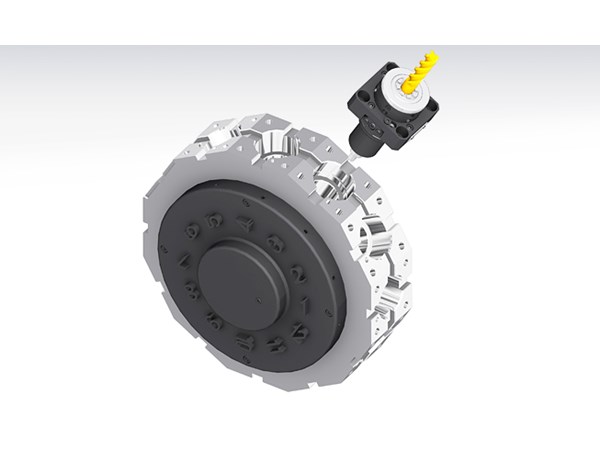

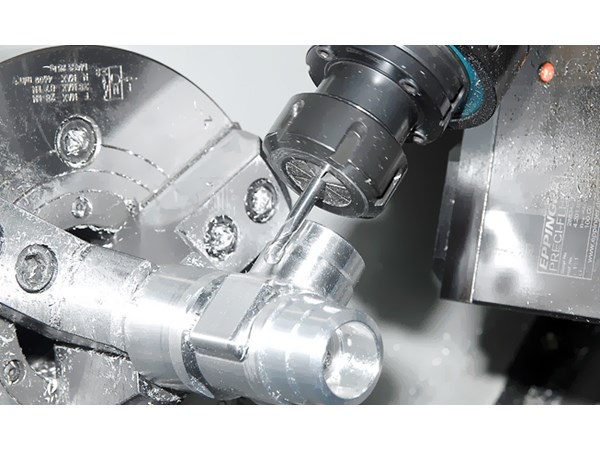

Hyundai Wia L300LMC Turning Center

Homepage / Hyundai Wia L300LMC Turning Center

Hyundai Wia L300LMC Turning Center

Hyundai Wia L300LMC Turning Center

Hyundai Wia L300LMC Turning Center

Hyundai Wia L300LMC Turning Center

Hyundai Wia L300LMC Turning Center

Hyundai Wia L300LMC Turning Center

Hyundai Wia L300LMC Turning Center

Hyundai Wia L300LMC Turning Center

Hyundai Wia L300LMC Turning Center

Hyundai Wia L300LMC Turning Center

Hyundai Wia L300LMC Turning Center

Hyundai Wia L300LMC Turning Center

Hyundai Wia L300LMC Turning Center

Max Turning Diameter — 500 mm

Max Turning Length — 1260 mm

Chuck Size — 12″

Spindle rpm — 3,000 rpm

Bar Capacity — Ø90 mm

Max. Swing — Ø750 mm

Description	Unit	L300MC	L300LMC	L300MSC
Max Turning Dia	mm	500	500	500
Max Turning Length	mm	600	1,260	600
Chuck Size	inch	12″	12″	Main 12″ Sub 8″
Chuck Size	inch	12″	12″	Main 12″ Sub 8″

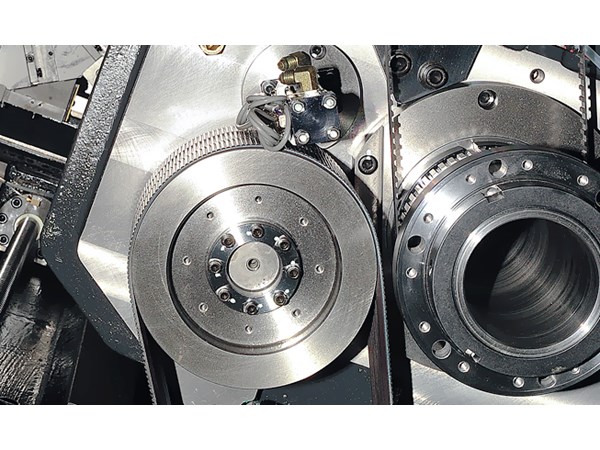

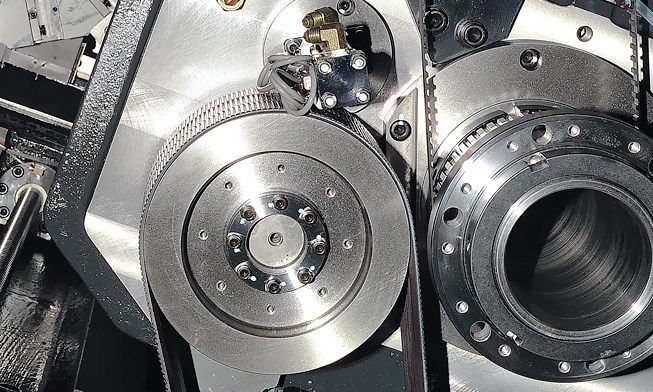

Driving Method	-	Belt	Belt	Belt
Spindle RPM	r/min	3,000	3,000	3,000
Spindle Output	kW	22/18.5	22/18.5	22/18.5
Spindle Torque	N.m	787.3/465	787.3/465	787.3/465
Travel(X/Z)	mm	355/750	355/1,350	355/750/700
Rapid Travel(X/Z)	m/min	20/24	20/24	20/24/20
Slide Type	-	BOX	BOX	BOX
No. of Tools	EA	12	12	12
Tool Size	mm	25/50	25/50	25/50

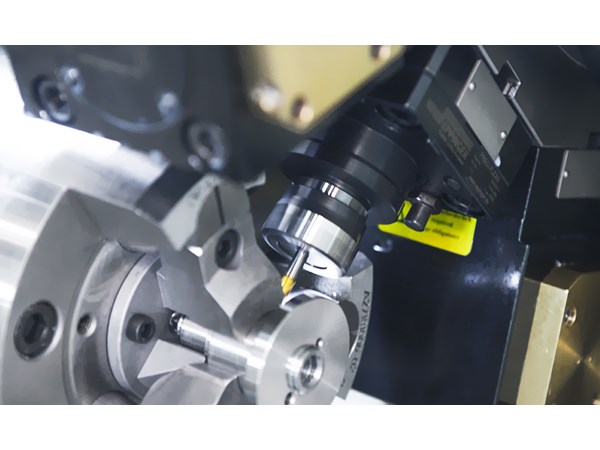

Milling Tool Speed	r/min	4,000	4,000	4,000
