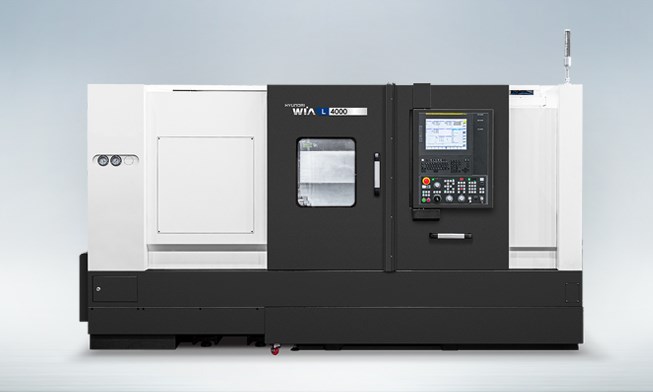

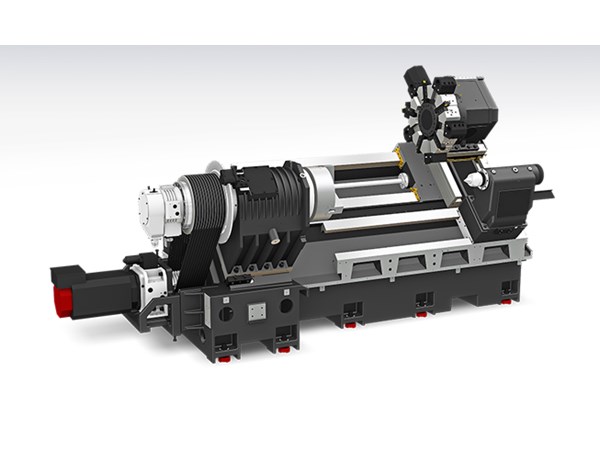

Hyundai Wia L4000C Turning Center

Homepage / Hyundai Wia L4000C Turning Center

Hyundai Wia L4000C Turning Center

Hyundai Wia L4000C Turning Center

Hyundai Wia L4000C Turning Center

Hyundai Wia L4000C Turning Center

Hyundai Wia L4000C Turning Center

Hyundai Wia L4000C Turning Center

Hyundai Wia L4000C Turning Center

Hyundai Wia L4000C Turning Center

Hyundai Wia L4000C Turning Center

Max Turning Diameter — 570 mm

Max Turning Length — 1025 mm

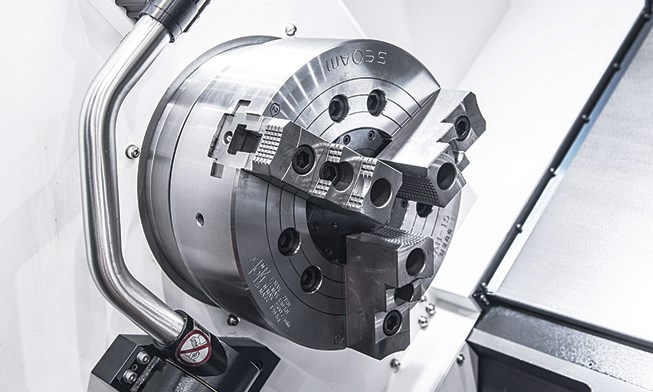

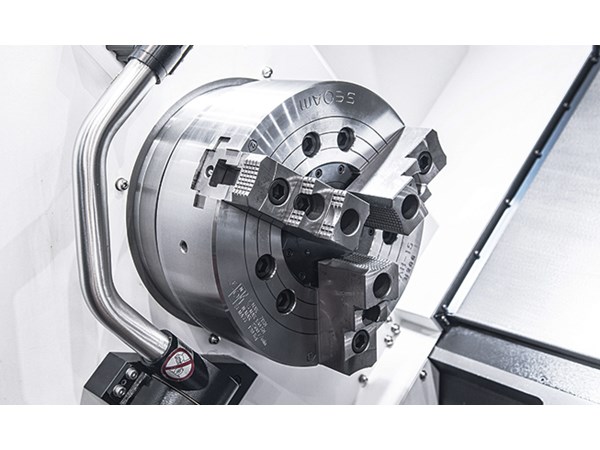

Chuck Size — 21″

Spindle rpm — 1,500 rpm

Bar Capacity — Ø165 mm

Max. Swing — Ø800 mm

Description	Unit	L4000	L4000M	L4000C	L4000MC
Max Turning Dia	mm	570	570	570	570
Max Turning Length	mm	1043	958	1025	940
Chuck Size	inch	15″	15″	21″	21″

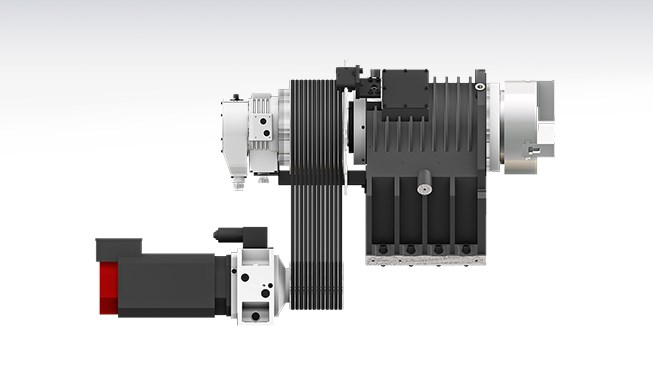

Driving Method	-	GEAR	Belt	GEAR	GEAR
Spindle RPM	r/min	2,000	2,000	1,500	1,500
Spindle Output	kW	35	30	37	37
Spindle Torque	N.m	2,450	1,611	3,378	1,812
Travel(X/Z)	mm	330/1,105	330/1,105	330/1,105	330/1,105
Rapid Travel(X/Z)	m/min	16/20	16/20	16/20	16/20

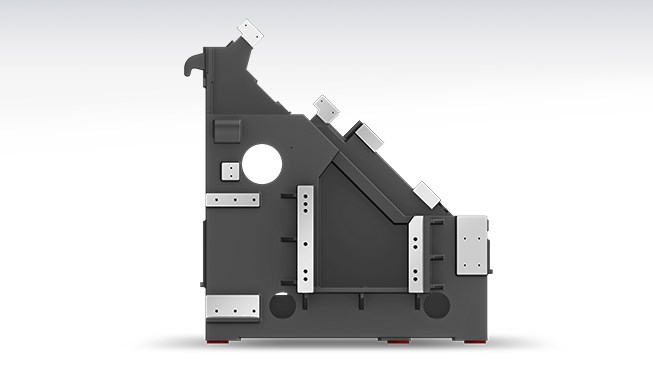

Slide Type	-	BOX	BOX	BOX	BOX

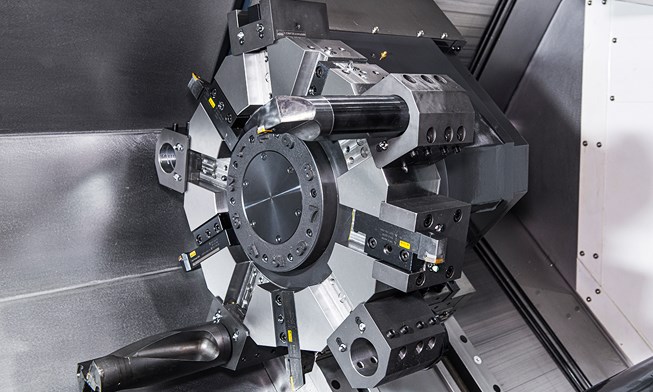

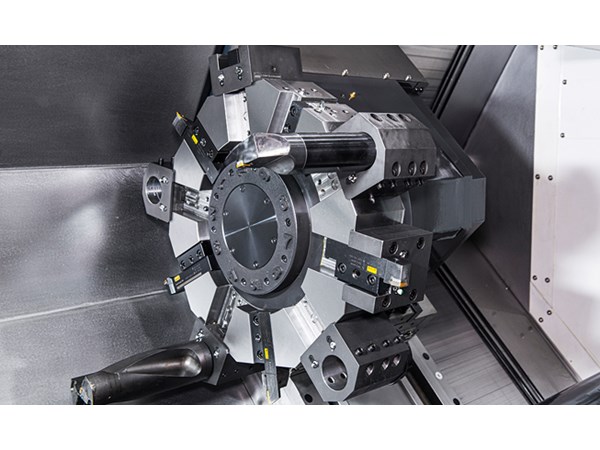

No. of Tools	EA	10	12	10	10
Tool Size	mm	32/60	32/60	32/60	32/60
Milling Tool Speed	r/min	-	4,000	-	4,000
