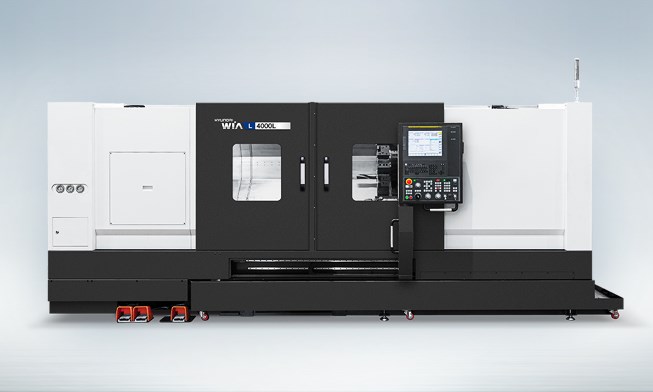

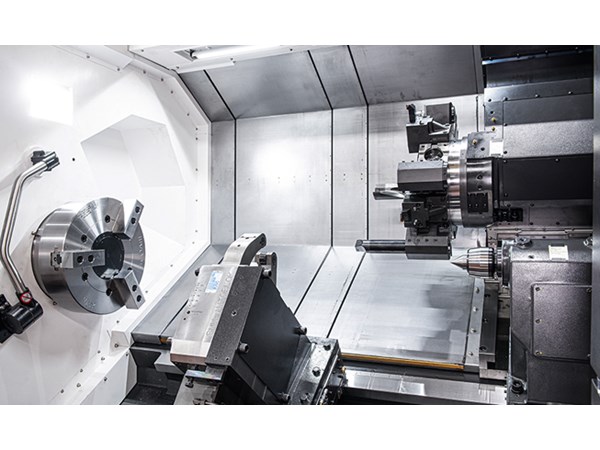

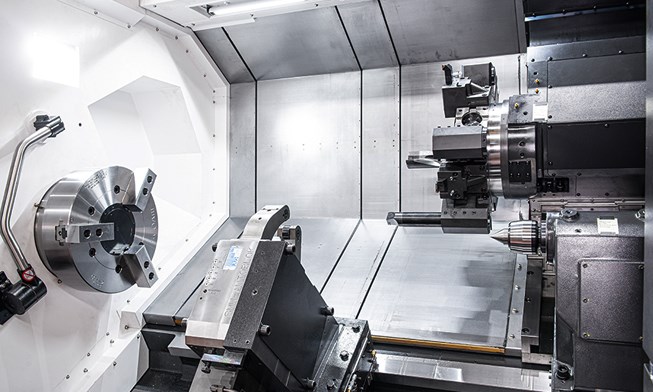

Hyundai Wia L4000L Turning Center

Homepage / Hyundai Wia L4000L Turning Center

Hyundai Wia L4000L Turning Center

Hyundai Wia L4000L Turning Center

Hyundai Wia L4000L Turning Center

Hyundai Wia L4000L Turning Center

Hyundai Wia L4000L Turning Center

Hyundai Wia L4000L Turning Center

Hyundai Wia L4000L Turning Center

Max Turning Diameter — 570 mm

Max Turning Length — 2138 mm

Chuck Size — 15″

Spindle rpm — 2,000 rpm

Bar Capacity — Ø117 mm

Max. Swing — Ø800 mm

Description	Unit	L4000L	L4000LM	L4000LC	L4000LMC
Max Turning Dia	mm	570	570	570	570
Max Turning Length	mm	2138	2053	2120	2035
Chuck Size	inch	15″	15″	21″	21″
Driving Method	-	GEAR	Belt	GEAR	GEAR
Spindle RPM	r/min	2,000	2,000	1,500	1,500
Spindle Output	kW	35	30	37	37
Spindle Torque	N.m	2,450	1,611	3,378	2,457
Travel(X/Z)	mm	330/2,200	330/2,200	330/2,200	330/2,200
Rapid Travel(X/Z)	m/min	16/20	16/20	16/20	16/20

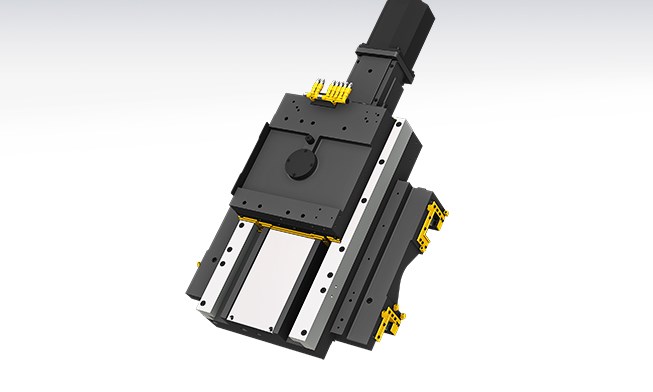

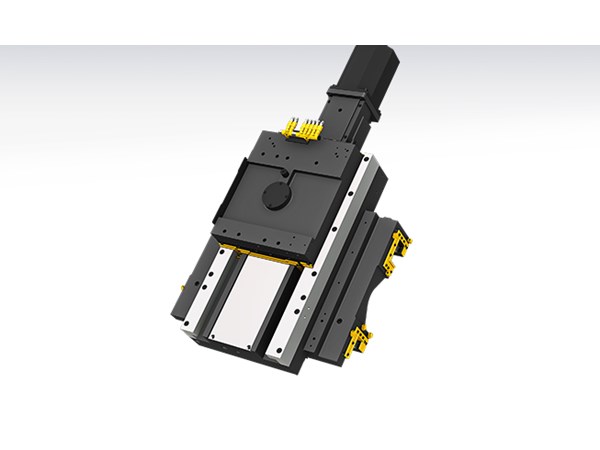

Slide Type	-	BOX	BOX	BOX	BOX

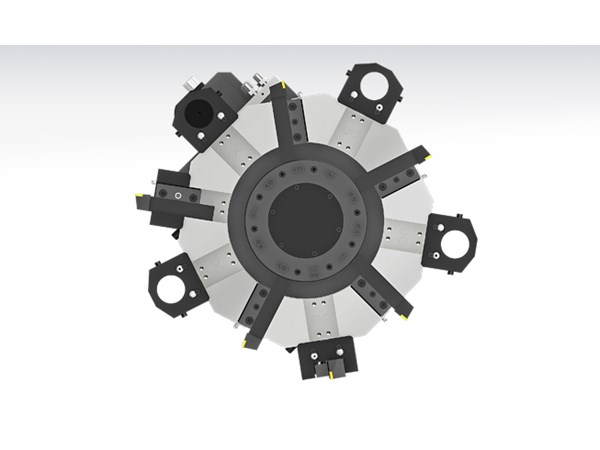

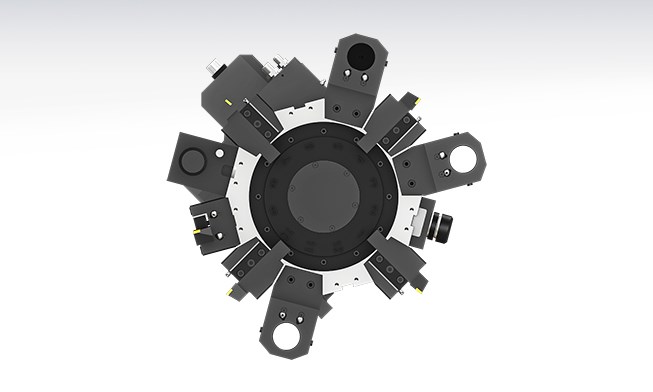

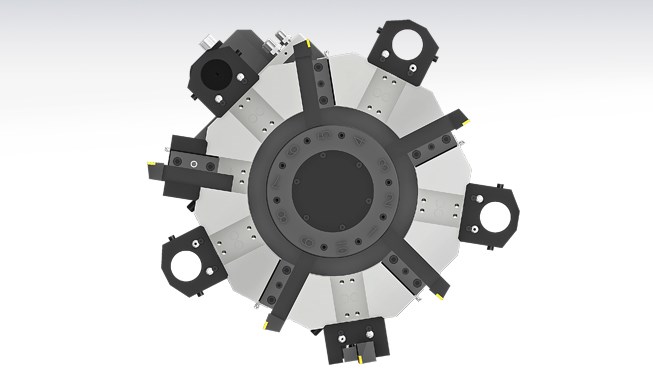

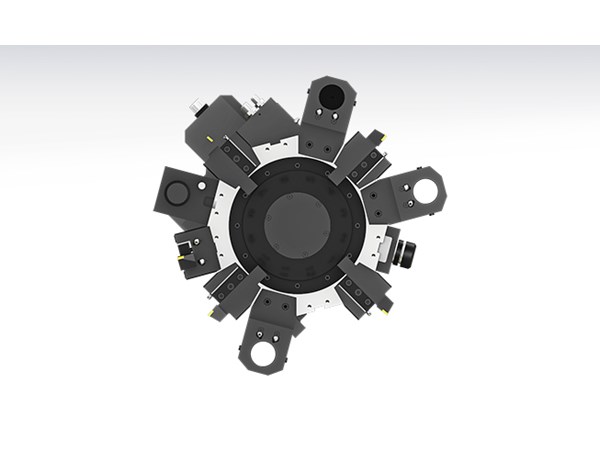

No. of Tools	EA	10	12	10	12
Tool Size	mm	32/60	32/60	32/60	32/60
Milling Tool Speed	r/min	-	4,000	-	4,000
