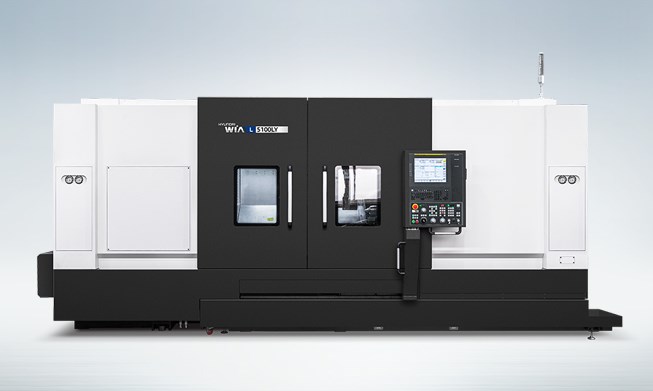

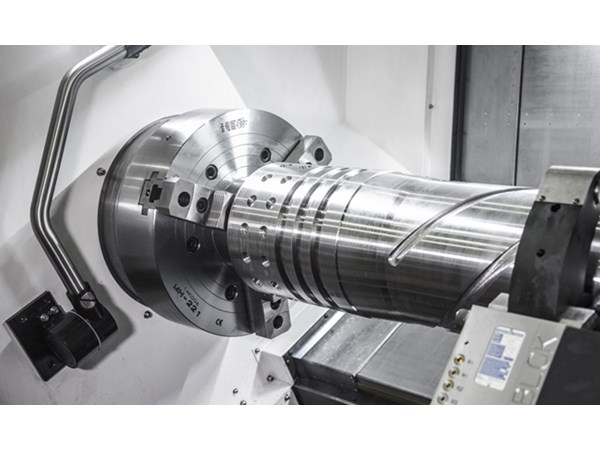

Hyundai Wia L5100LM Turning Center

Homepage / Hyundai Wia L5100LM Turning Center

Hyundai Wia L5100LM Turning Center

Hyundai Wia L5100LM Turning Center

Hyundai Wia L5100LM Turning Center

Hyundai Wia L5100LM Turning Center

Hyundai Wia L5100LM Turning Center

Hyundai Wia L5100LM Turning Center

Hyundai Wia L5100LM Turning Center

Hyundai Wia L5100LM Turning Center

Max Turning Diameter — 690 mm

Max Turning Length — 2120 mm

Chuck Size — 21″

Spindle rpm — 1,500 rpm

Bar Capacity — Ø165 mm

Max. Swing — Ø1030 mm

Description	Unit	L5100L	L5100LM	L5100LC	L5100LMC
Max Turning Dia	mm	760	690	760	690
Max Turning Length	mm	2,205	2,120	2,205	2,120
Chuck Size	inch	21″	21″	24″	24″
Driving Method	-	GEAR	GEAR	GEAR	GEAR
Spindle RPM	r/min	1,500	1,500	1,000	1,000
Spindle Output	kW	45/37	45/37	45/37	45/37
Spindle Torque	N.m	4,112/3,382	2,990/2,459	4,486/3,689	4,486/3,689
Travel(X/Z)	mm	400/2,255	400/2,170	400/2,255	400/2,170
Rapid Travel(X/Z)	m/min	20/18	20/18	20/18	20/18
Slide Type	-	BOX	BOX	BOX	BOX

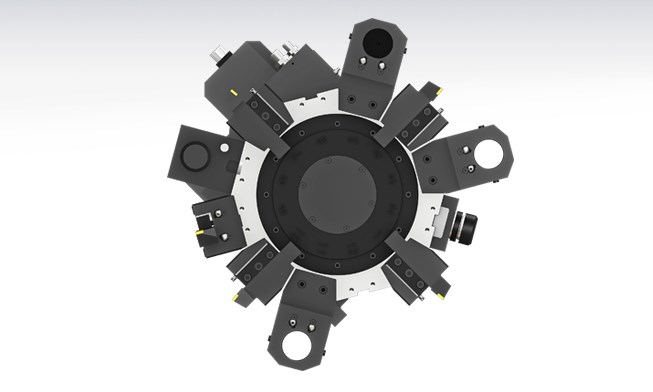

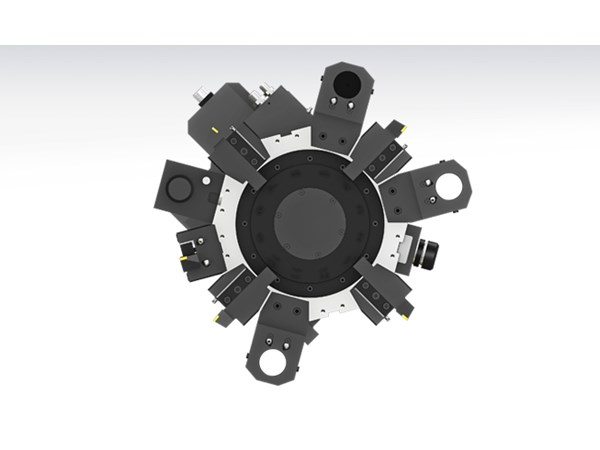

No. of Tools	EA	12	12	12	12
Tool Size	mm	32/60	32/60	32/60	32/60
Milling Tool Speed	r/min	-	4,000	-	4,000
