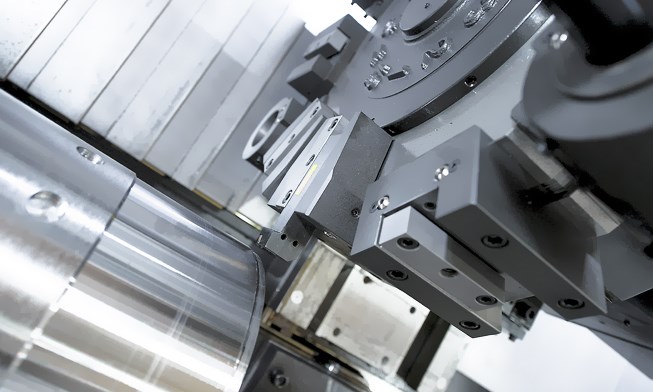

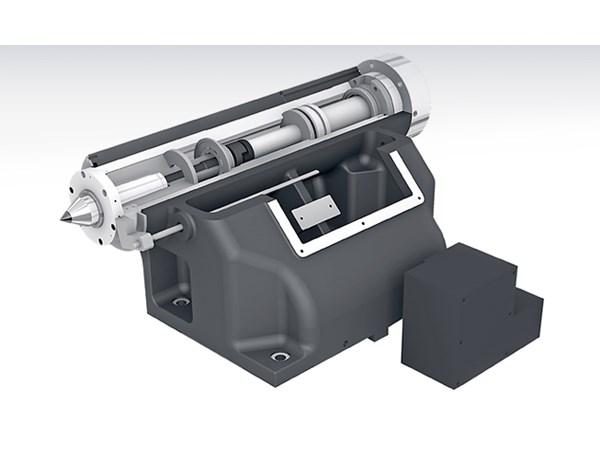

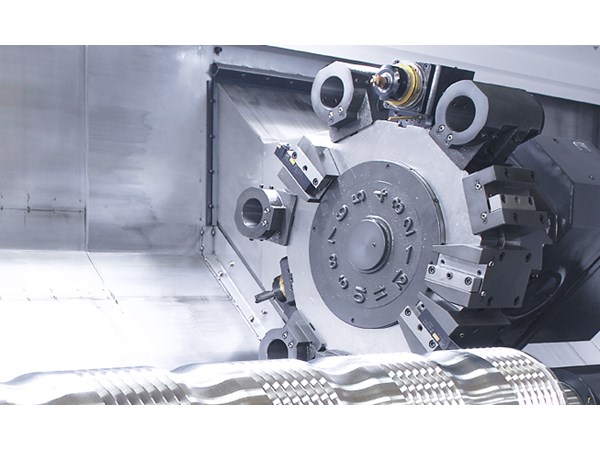

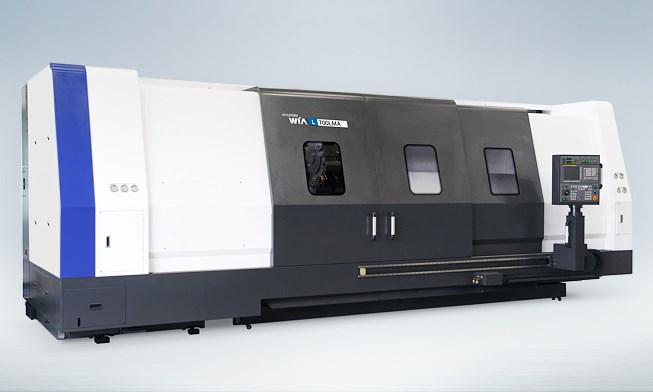

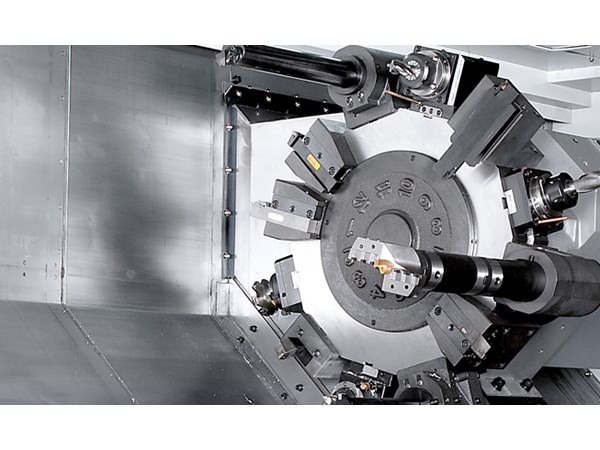

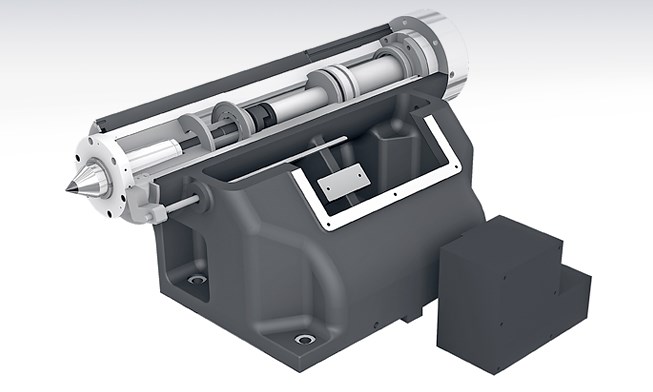

Hyundai Wia L700LA Turning Center

Homepage / Hyundai Wia L700LA Turning Center

Hyundai Wia L700LA Turning Center

Hyundai Wia L700LA Turning Center

Hyundai Wia L700LA Turning Center

Hyundai Wia L700LA Turning Center

Hyundai Wia L700LA Turning Center

Hyundai Wia L700LA Turning Center

Hyundai Wia L700LA Turning Center

Hyundai Wia L700LA Turning Center

Hyundai Wia L700LA Turning Center

Hyundai Wia L700LA Turning Center

Hyundai Wia L700LA Turning Center

Hyundai Wia L700LA Turning Center

Hyundai Wia L700LA Turning Center

Max Turning Diameter — 920 mm

Max Turning Length — 3250 mm

Chuck Size — 24″

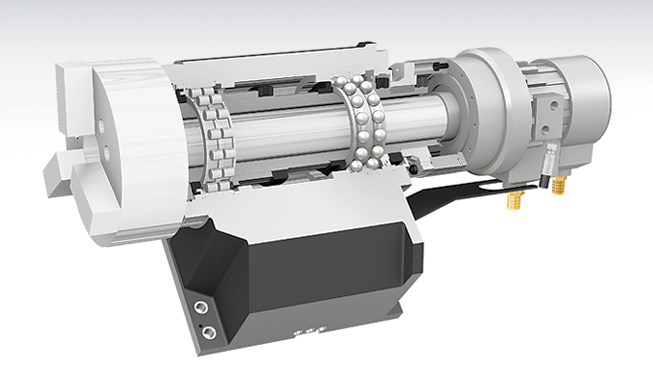

Spindle rpm — 1,500 rpm

Bar Capacity — Ø165 mm

Max. Swing — Ø1050 mm

Description	Unit	L700LA	L700LMA
Max Turning Dia	mm	920	920
Max Turning Length	mm	3,250	3,250
Chuck Size	inch	24″	24″

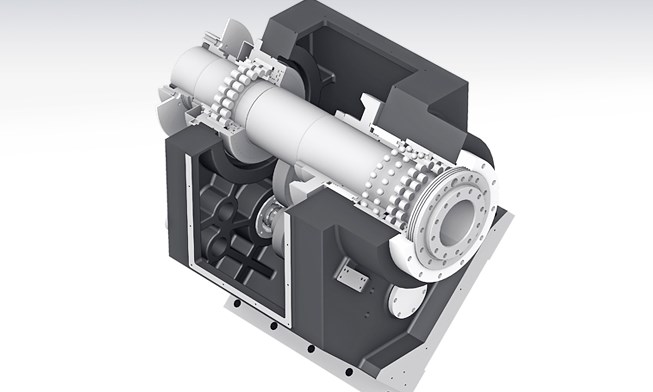

Driving Method	-	GEAR	GEAR
Spindle RPM	r/min	1,500	1,500
Spindle Output	kW	45/37	45/37
Spindle Torque	N.m	6,978/5,700	6,978/5,700
Travel(X/Z)	mm	500/3,280	500/3,280
Rapid Travel(X/Z)	m/min	12/12	12/12
Slide Type	-	BOX	BOX

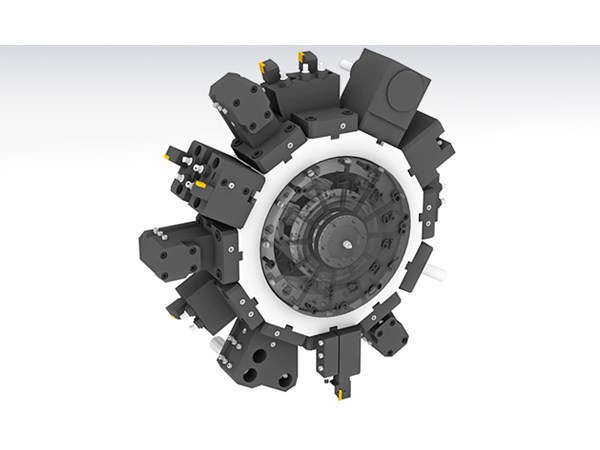

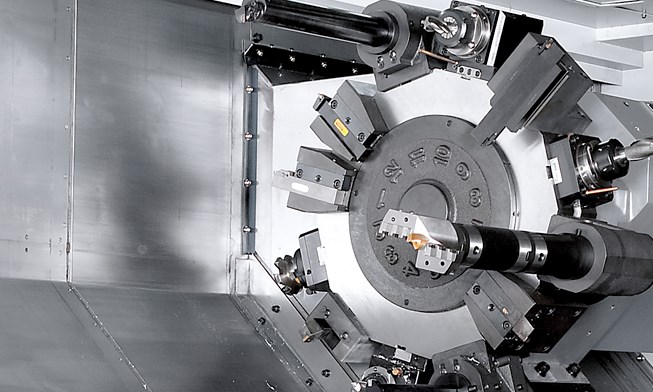

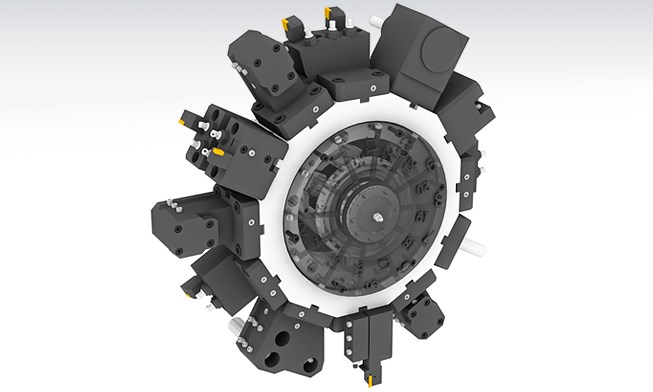

No. of Tools	EA	12	12
Tool Size	mm	32/80	32/80

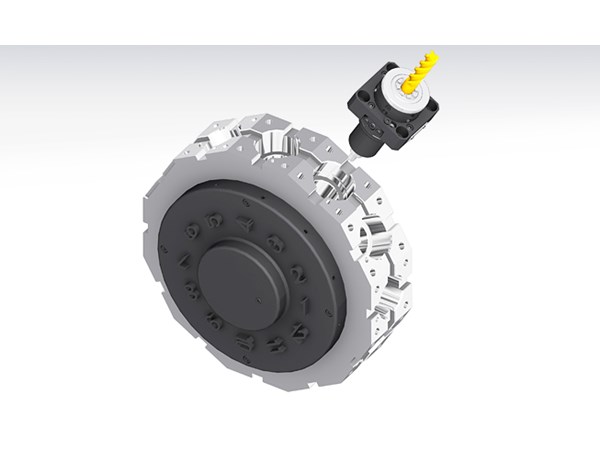

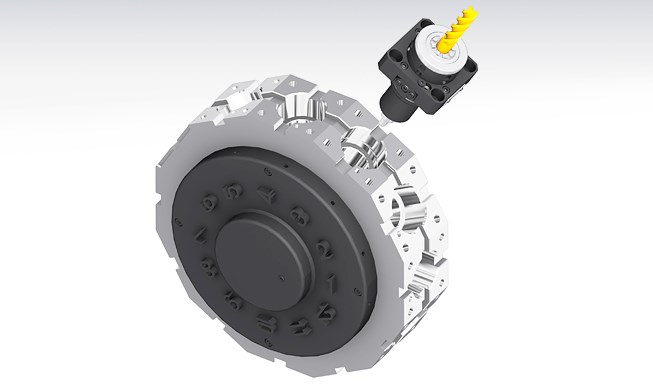

Milling Tool Speed	r/min	-	3,000
