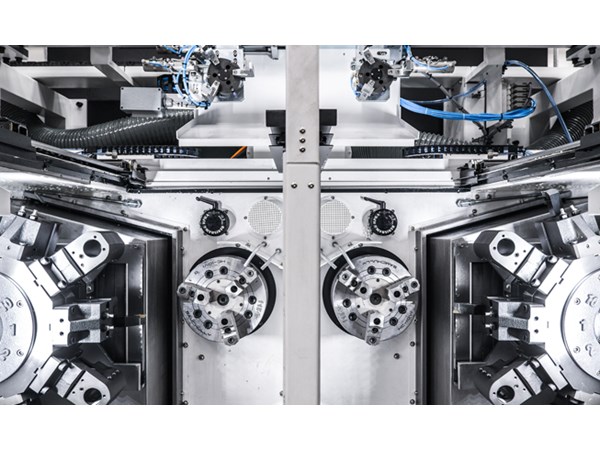

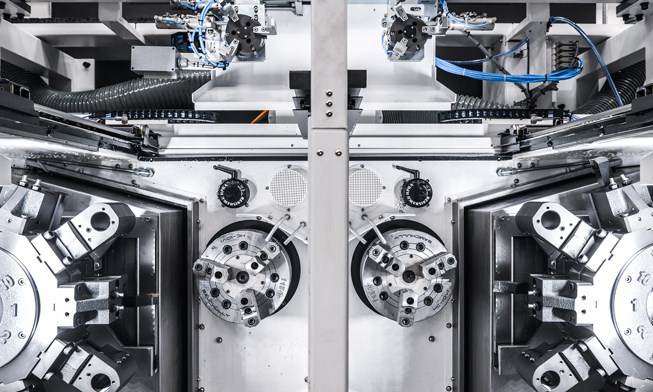

Hyundai Wia LF2200Quick II Turning Center

Homepage / Hyundai Wia LF2200Quick II Turning Center

Hyundai Wia LF2200Quick II Turning Center

Hyundai Wia LF2200Quick II Turning Center

Hyundai Wia LF2200Quick II Turning Center

Hyundai Wia LF2200Quick II Turning Center

Hyundai Wia LF2200Quick II Turning Center

Hyundai Wia LF2200Quick II Turning Center

Hyundai Wia LF2200Quick II Turning Center

Hyundai Wia LF2200Quick II Turning Center

Max Turning Diameter — 260 mm

Max Turning Length — 170 mm

Chuck Size — 8″

Spindle rpm — 4,500 rpm

Bar Capacity — Ø45 mm

Max. Swing — Ø276 mm

Description	Unit	LF2200 II	LF2200Quick II	LF2200M II	LF2200MQuick II
Max Turning Dia	mm	260	260	260	260
Max Turning Length	mm	170	170	170	170
Chuck Size	inch	8″	8″	8″	8″
Driving Method	-	Belt	Belt	Belt	Belt
Spindle RPM	r/min	4,500	4,500	4,500	4,500
Spindle Output	kW	15/11	15/11	15/11	15/11
Spindle Torque	N.m	127/70	127/70	127/70	127/70
Travel(X/Z)	mm	140/170	140/170	140/170	140/170
Rapid Travel(X/Z)	m/min	24/24	24/24	24/24	24/24
Slide Type	-	BOX	LM	BOX	LM
No. of Tools	EA	2 x 8	2 x 8	2 x 10	2 x 10
Tool Size	mm	20/32	25/40	25/40	25/40
Milling Tool Speed	r/min	-	-	6000	6000
